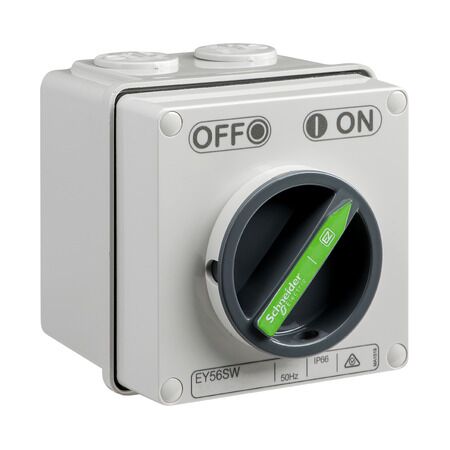

Rotary Switch 3P 20A 500V | IP66 Rated | Easy56 by Clipsal
Rotary switch with 3P 20A 500V capacity and IP66 rating—ideal for small commercial and industrial applications. Built for durability, with rotary knob control and suitable for isolation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Easy56, Switch, 3P, 20A, 500V
Brand: Clipsal
SKU: EY56SW320
Alternatively Known As: Easy56 Switch, Clipsal 3P Switch, 20A Rotary Switch
Technical Specifications
- Rated operational voltage: 500 V AC 50 Hz
- Rated operational current: 20 A (AC-21A) at 500 V AC
- 20 A (AC-23A) at 500 V AC
- Screw terminals for cables 1-16 mm²
- Rated impulse withstand voltage: 2.5 kV
- Rated short-circuit making capacity: 1 kA at 500 V AC
- Rated short-time withstand current: 1.5 kA at 500 V for 1 second
- Breaking capacity: 0.2 kA at 500 V (AC-21A)
- 0.2 kA at 500 V (AC-23A)
- Ambient air temperature for operation: -25...75 °C
- Dimensions (H x L x W): 101mm x 101mm x 101mm
- Weight: 0.471 kg
Key Features
- Rotary knob control type
- IP66 rated for protection against dust and water
- Suitable for isolation
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Small commercial
- Industry
- Utility
Standards & Compliance
- Complies with AS/NZS 3133 and AS 60529 for safety and performance standards.
Environmental Benefits
- Compliant with RoHS directives and mercury-free.
Warranty Information
Standard warranty applies.
Available Now
The Clipsal Easy56 Switch 3P 20A 500V is available now for immediate purchase. Ideal for small commercial and industrial applications.
