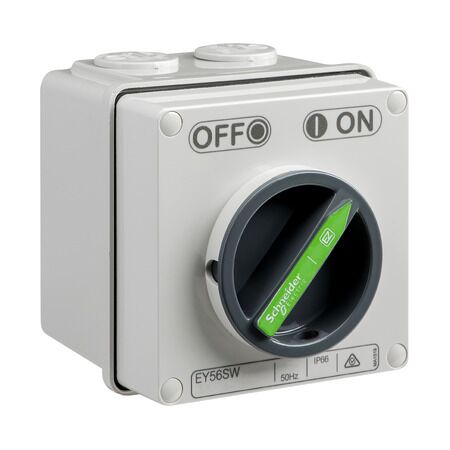

Rotary Switch 3P 20A 500V IP66 Rated Easy56 Clipsal

BRAND: Clipsal
SKU: SCHEY56SW320
$55.80 List price: $69.50
+ −
30 Days Return Electricians Unlock Trade Access
Clipsal Rotary Switch Rated features 500V AC 50Hz, 20A and 2.5kV. IP66 rated for protection against dust and water. Ideal for small commercial.
Technical Specifications
  • Rated operational voltage: 500 V AC 50 Hz
  • Rated operational current: 20 A (AC-21A) at 500 V AC
  • 20 A (AC-23A) at 500 V AC
  • Screw terminals for cables 1-16 mm²
  • Rated impulse withstand voltage: 2.5 kV
  • Rated short-circuit making capacity: 1 kA at 500 V AC
  • Rated short-time withstand current: 1.5 kA at 500 V for 1 second
  • Breaking capacity: 0.2 kA at 500 V (AC-21A)
  • 0.2 kA at 500 V (AC-23A)
  • Ambient air temperature for operation: -25...75 °C
  • Dimensions (H x L x W): 101mm x 101mm x 101mm
  • Weight: 0.471 kg
Key Features
  • Rotary knob control type
  • IP66 rated for protection against dust and water
  • Suitable for isolation
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Small commercial
  • Industry
  • Utility
Standards & Compliance
  • Complies with AS/NZS 3133 and AS 60529 for safety and performance standards.
Environmental Benefits
  • Compliant with RoHS directives and mercury-free.
Warranty Information

Standard warranty applies.

Available Now

The Clipsal Easy56 Switch 3P 20A 500V is available now for immediate purchase. Ideal for small commercial and industrial applications.

EY56SW320 (EY56SW320, 216 Kb) [Download]
