Trade Discount 33%

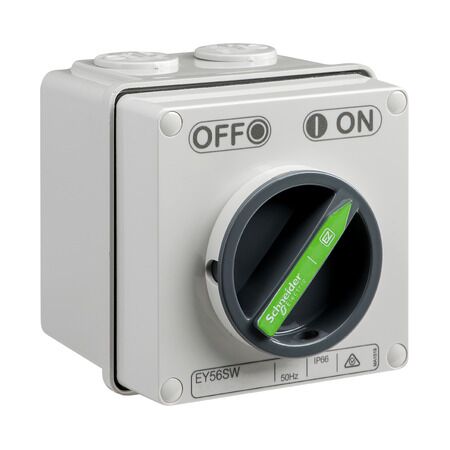

Rotary Switch 3P 32A 500V | IP66 Rated | Easy Operation by Clipsal
Rotary switch with 3P, 32A, and 500V rating—ideal for industrial and small commercial applications. Built for durability, with IP66 protection and easy rotary knob control.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Easy56, Switch, 3P, 32A, 500V
Brand: Clipsal
SKU: EY56SW332
Alternatively Known As: Easy56 Switch, Clipsal 3P Switch, 32A Rotary Switch
Technical Specifications
- Rated operational voltage: 500V AC 50Hz
- Rated operational current: 32A (AC-21A and AC-23A)
- Control type: Rotary knob
- Connections: Screw terminals for cables 1-16 mm²
- Rated impulse withstand voltage: 2.5 kV
- Breaking capacity: 0.2 kA at 500V (AC-21A and AC-23A)
- Suitable for isolation: Yes
- Ambient air temperature for operation: -25 to 75 °C
- Dimensions (H x L x W): 101mm x 101mm x 101mm
- Weight: 0.471 kg
Key Features
- IP66 rated for protection against dust and water.
- Rotary knob control type for easy operation.
- Rated operational current of 32A at 500V AC.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Suitable for utility and small commercial applications.
Standards & Compliance
- Complies with AS/NZS 3133 and AS 60529 for safety and performance.
Environmental Benefits
- Compliant with RoHS directives and mercury-free.
Warranty Information
Standard warranty as per manufacturer guidelines.
Available Now
The Clipsal Easy56 Switch 3P 32A 500V is available now for immediate purchase. Ideal for industrial and commercial applications.
