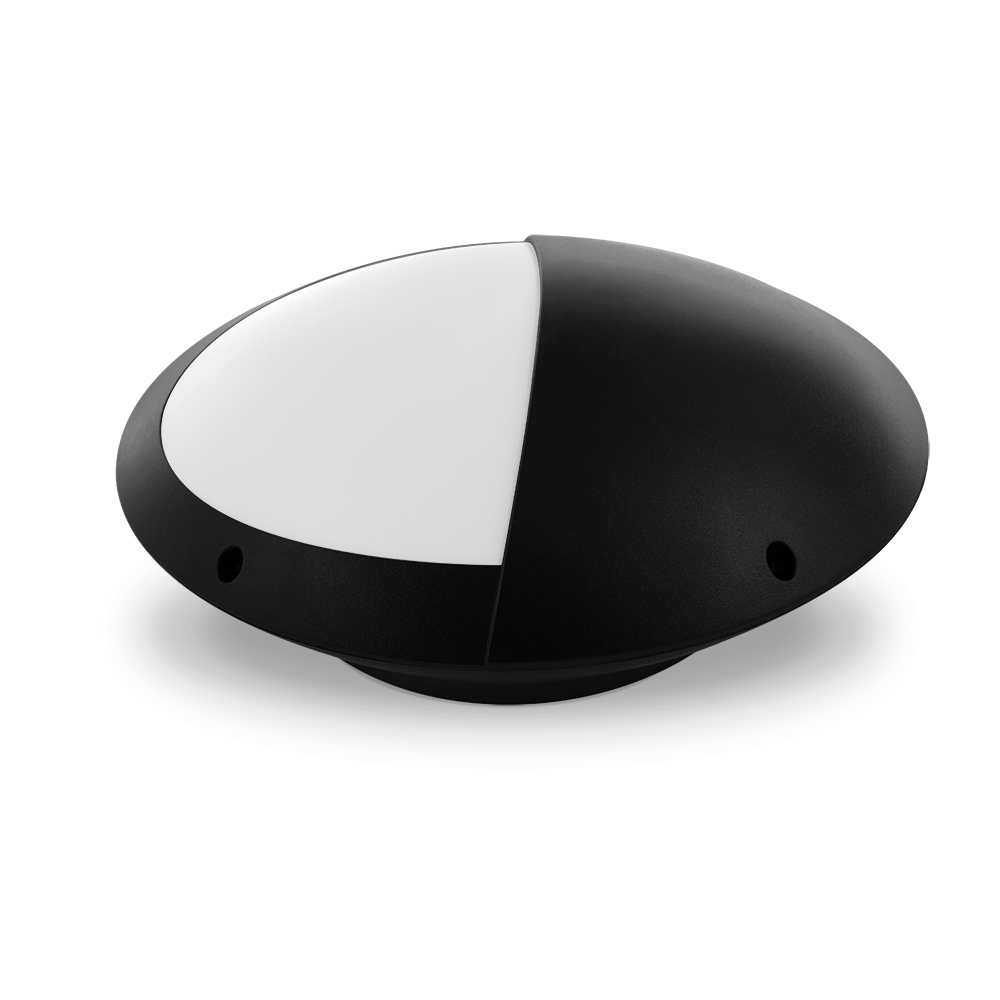

Round 12W LED Polycarbonate Bunker Light | IP66 Rated | TRI-CCT Options | by atom
The Round 12W LED Polycarbonate Bunker Light is designed for both indoor and outdoor use, featuring an IP66 rating for dust and water protection. With TRI-CCT options (3000K, 4000K, 5700K) and a high efficiency of up to 104 lm/W, this durable light is perfect for residential, commercial, and industrial applications, ensuring robust performance in any environment.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 12W LED Bunker Light, IP66 LED Bulkhead, Polycarbonate LED Wall Light, TRI-CCT LED Bunker Light
Technical Specifications
- System Max Wattage: 12 W
- Input Voltage: 230Vac (216Vac - 253Vac range)
- Input Frequency: 50 Hz
- Input Current: 0.07 A
- Colour Rendering Index (CRI): >80
- Colour Temperature: TRI-CCT (3000K, 4000K, 5700K)
- LED Lifetime: >54,000 hours (L70B10 rating)
- IP Rating: IP66
- IK Rating: IK10
- Driver Type: Fixed output, constant current
- Dimmable: No
- Wiring Type: Re-wireable terminal block (3 pin)
- Operating Temperature Range: -20 to 45 °C
- Switch Type: Inline
- Dimensions (H x L x W): 90mm x 150mm x 150mm
- Weight: 1.2 kg
Key Features
- 12W fixed output LED with TRI-CCT (3000K, 4000K, 5700K) colour temperature options
- High system efficiency up to 104 lm/W
- IP66 rated for dust and water ingress protection
- IK10 rated for impact resistance
- Polycarbonate body and diffuser for durability
- Non-dimmable with fixed output driver
- Inline switch for easy operation
- Long LED lifetime greater than 54,000 hours (L70B10 rating)
- Re-wireable terminal block (3 pin) for wiring flexibility
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical safety standards and optimal performance.
Applications
- Wall or ceiling installation in residential, commercial, and industrial environments
- Suitable for outdoor and indoor use requiring robust, weatherproof lighting
- Ideal for areas needing high ingress protection and vandal resistance
Standards & Compliance
- AS/NZS 60598.1 – Luminaires General Requirements
- AS/NZS 60598.2.1 – Fixed General Purpose Luminaires
- AS/NZS 61347.1 – Lamp Control Gear General and Safety Requirements
- AS/NZS 61347.2.13 – Particular Requirements for LED Modules
- AS CISPR 15 – Limits and Methods of Measurement of Radio Disturbance Characteristics of Electrical Lighting and Similar Equipment
Environmental Benefits
- Energy-efficient LED technology reduces power consumption
- Long LED lifespan minimizes waste and replacement frequency
- Polycarbonate materials are durable and recyclable
Warranty Information
3 years return-to-base warranty for domestic use. VIP warranty offers 2 years onsite plus 3 years return-to-base (total 5 years) for registered users under specific terms and conditions.
Available Now
The Atom Round 12W LED Polycarbonate Bunker Light is available for immediate purchase, ideal for robust indoor and outdoor lighting applications requiring high ingress and impact protection.
