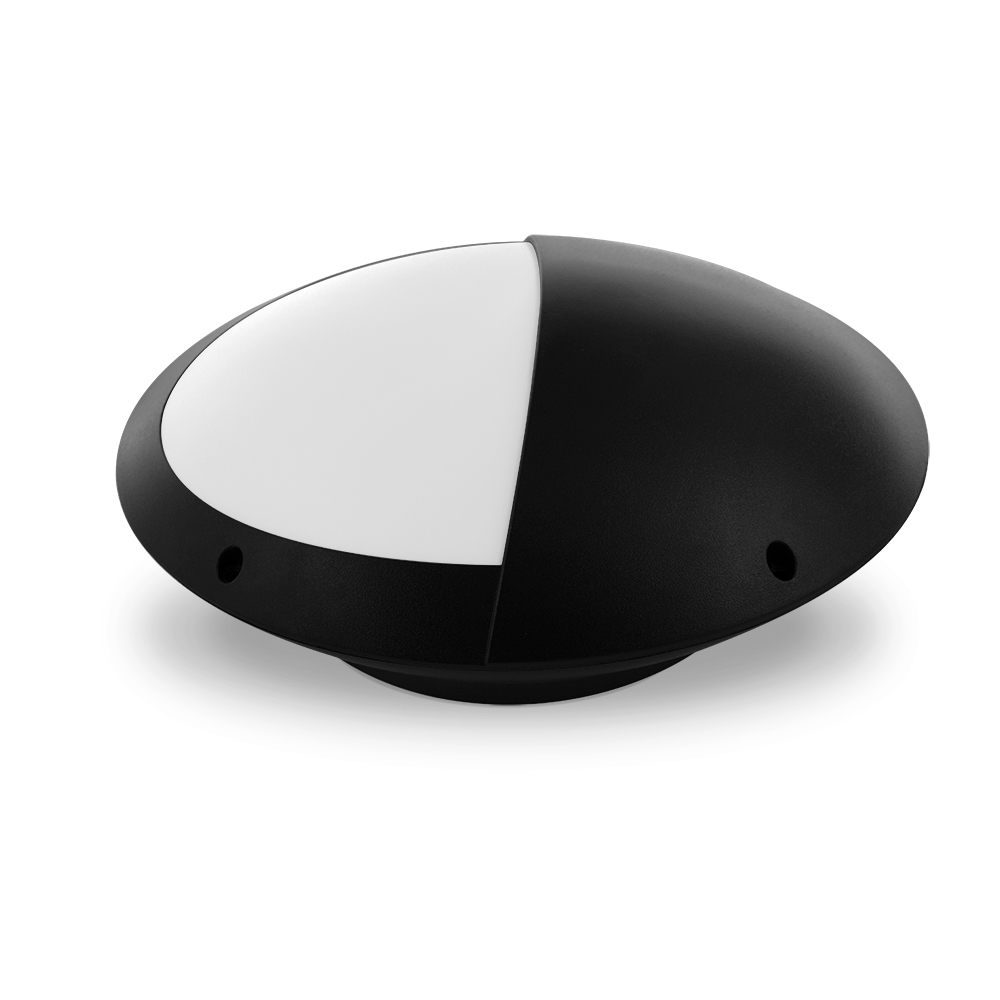

Round 12W LED Polycarbonate Bunker Light | IP66 Rated | TRI-CCT Color Options | Eyelid Design | by atom
The Round 12W LED Polycarbonate Bunker Light is designed for both indoor and outdoor use, featuring an IP66 rating for superior dust and water protection. With TRI-CCT color temperature options and a durable polycarbonate body, this light is perfect for residential, commercial, and industrial applications, ensuring long-lasting performance and energy efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 12W LED Bunker Light, IP66 LED Wall Light, Polycarbonate LED Bulkhead, TRI-CCT LED Bunker Light, Eyelid LED Bunker Light
Technical Specifications
- System Max Wattage: 12 W
- Input Voltage: 230Vac (216Vac - 253Vac range)
- Input Frequency: 50 Hz
- Input Current: 0.07 A
- Colour Rendering Index (CRI): >80
- Colour Temperature: TRI-CCT (3000K, 4000K, 5700K)
- LED Lifetime: >54,000 hours (L70B10 rating)
- IP Rating: IP66
- IK Rating: IK10
- Body Material: Polycarbonate
- Diffuser Material: Polycarbonate
- Driver Type: Fixed output, constant current
- Dimmable: No
- Wiring Type: Re-wireable terminal block (3 pin)
- Working Temperature Range: -20 to 45 °C
- Switch Type: Inline
- Dimensions (H x L x W): 100mm x 150mm x 150mm
- Weight: 0.8 kg
Key Features
- 12W system max wattage with TRI-CCT colour temperature configuration
- High total system efficiency of 98 lm/W
- IP66 rated for dust and water ingress protection
- IK10 rated for impact resistance
- Polycarbonate body and diffuser for durability
- Fixed adjustability with inline switch
- Non-dimmable fixed output driver with re-wireable terminal block
- LED lifetime greater than 54,000 hours (L70B10 rating)
- Colour rendering index (CRI) greater than 80
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical standards and safety regulations.
Applications
- Wall or ceiling installation in residential, commercial, and industrial environments
- Suitable for outdoor and indoor use requiring robust, weatherproof lighting
- Ideal for areas needing high ingress protection and vandal resistance
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 60598.1
- AS/NZS 60598.2.1
- AS/NZS 61347.1
- AS/NZS 61347.2.13
- AS CISPR 15
Environmental Benefits
- High efficiency LED technology reduces energy consumption
- Long LED lifetime minimizes waste and replacement frequency
- Durable polycarbonate construction reduces material waste
Warranty Information
3 years return-to-base warranty for domestic use. VIP warranty offers 2 years onsite plus 3 years return-to-base (total 5 years) for registered users under specific terms and conditions.
Available Now
The Atom Round 12W LED Polycarbonate Bunker Light with IP66 rating and eyelid option is available for immediate purchase, ideal for robust indoor and outdoor lighting applications.
