Round Fascia 14W Tri Colour LED to Suit Airbus 250 White Ventair

BRAND: Ventair
SKU: ABGLED250WH-RD
$93.80 List price: $125.00
+ −
30 Days Return Electricians Unlock Trade Access

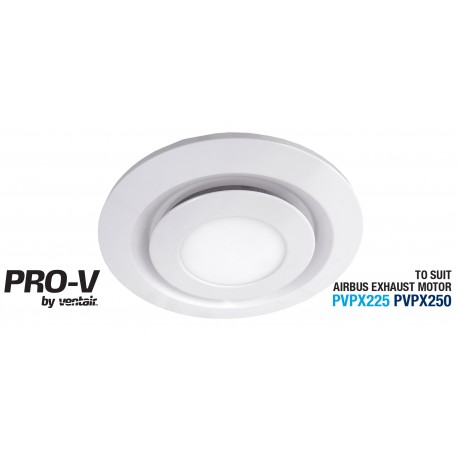

Ventair low sheen white round fascia with 14W tri-colour LED panel to suit Airbus 225 and 250 bodies (PVPX225, PVPX250, PVPXEC500). White finish.

Alternatively Known As: Airbus 250 LED Fascia, ABGLED250WH-RD, White Round Airbus LED Grille, Ventair Bathroom Exhaust Fan Fascia

Technical Specifications
  • Model Number: ABGLED250WH-RD
  • Colour: Low-sheen white
  • Light Type: Integrated LED panel
  • Light Wattage: 14W
  • Light Output: 1600 lumens
  • Colour Temperature: Warm white 3000K, natural white 4200K, cool white 6500K
  • Shape: Round
  • IP Rating: IP44
  • Compatibility: Ventair Airbus PVPX225, PVPX250 and PVPXEC500 motor bodies
  • Cleaning: Removable fascia for cleaning
  • Included Components: LED driver
  • Dimensions (H x L x W): 50mm x 326mm x 326mm
  • Weight: 1 kg
Key Features
  • Selectable warm, natural and cool white light settings
  • Slimline, low-profile design
  • White finish for discreet ceiling installation
  • Integrated 14W LED panel
  • Removable for straightforward cleaning
  • Designed for the Ventair Airbus modular exhaust system
  • Compatible with Airbus 225, 250 and EC500 motor bodies
Professional Installation Requirements
  • Installation involves electrical connection and should be completed by a licensed electrician in accordance with the manufacturer's instructions and AS/NZS 3000. Confirm compatibility with the installed Airbus motor body before fitting.
Applications
  • Replacement fascia for Ventair Airbus PVPX225 exhaust fan bodies
  • Replacement fascia for Ventair Airbus PVPX250 exhaust fan bodies
  • Replacement fascia for Ventair Airbus PVPXEC500 motor bodies
  • Bathroom ceiling ventilation systems
  • Laundry and toilet exhaust fan installations
  • Residential and light-commercial ventilation systems requiring integrated LED lighting
Standards & Compliance
  • AS/NZS 3000: Electrical installation and wiring should comply with the Australian and New Zealand Wiring Rules
  • AS/NZS 60335.2.80: Relevant safety standard for household and similar electric fans; compliance should be assessed for the complete installed fan assembly
Environmental Benefits
  • LED lighting generally uses less energy than conventional bathroom light sources for comparable general lighting
  • Selectable colour temperature reduces the need to replace the fascia to change the lighting appearance
  • Long-life LED technology can reduce replacement frequency and associated waste
  • The removable fascia supports cleaning and maintenance, helping extend serviceable life
Warranty Information

Two-year residential warranty. Commercial use is covered by a one-year warranty. Warranty conditions apply and installation must be completed as specified by Ventair.

Available Now

Available through authorised Ventair distributors in Australia.
