Round Head Screw with Square Neck DIN 603 | Steel | Strength Class 8.8 | Zinc-Plated Blue Passivated | by WURTH

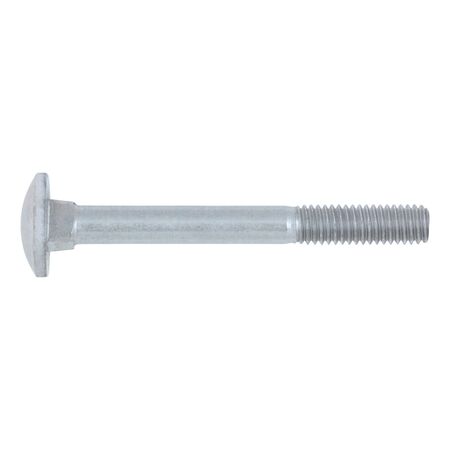

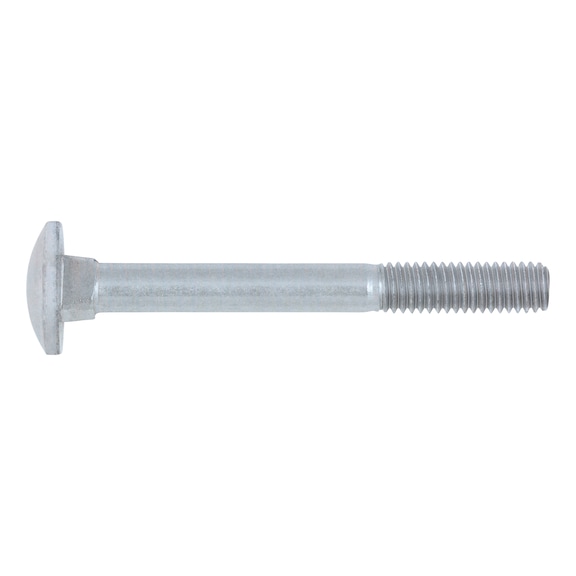

The Round Head Screw with Square Neck DIN 603 is crafted from high-strength steel, featuring a strength class of 8.8 and a zinc-plated, blue passivated finish for enhanced corrosion resistance. Ideal for mechanical assemblies and construction applications, this screw ensures secure fastening with its flat square neck design that prevents rotation, making it perfect for machinery and equipment assembly.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Round Head Screw with Square Neck DIN 603 | Steel | Strength Class 8.8 | Zinc-Plated Blue Passivated | by WURTH
Brand: WURTH
SKU: 022396 65
Alternatively Known As: Round Head Square Neck Bolt, DIN 603 Screw, Zinc Plated Round Head Screw
Technical Specifications
- Material: Steel
- Strength Class: 8.8
- Coating: Zinc-plated, blue passivated (A2K)
- Standard: DIN 603
- Head Type: Round head
- Neck Type: Square neck
- Dimensions (H x L x W): 20mm x 65mm x 10mm
- Weight: 0.1 kg
Key Features
- Flat square neck fixes the screw in a slot to prevent rotation
- Round head design for aesthetic and functional purposes
- Zinc-plated with blue passivation for corrosion resistance
- Strength class 8.8 for high tensile strength
Professional Installation Requirements
- Installation by qualified personnel using appropriate tools is recommended to ensure proper fastening and safety.
Applications
- Mechanical assemblies requiring secure fastening
- Construction and structural applications
- Machinery and equipment assembly
Standards & Compliance
- AS/NZS 4762 – High tensile steel bolts
Environmental Benefits
- Zinc plating provides corrosion resistance, extending product life and reducing waste
Warranty Information
Standard manufacturer warranty against defects in material and workmanship.
Available Now
The WURTH Round Head Screw with Square Neck DIN 603 is available for immediate purchase, ideal for mechanical, construction, and industrial fastening applications.
