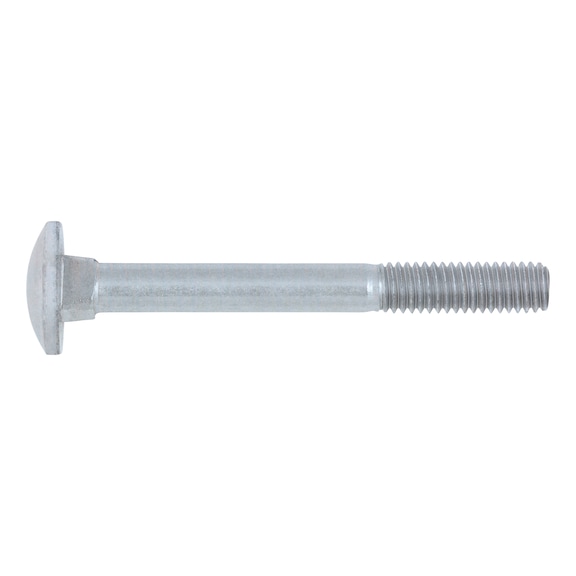

Round Head Screw with Square Neck DIN 603 | Steel | Strength Class 8.8 | Zinc-Plated Blue Passivated | by WURTH
The Round Head Screw with Square Neck DIN 603 is crafted from durable steel and features a strength class of 8.8, making it ideal for mechanical assemblies and construction applications. Its flat square neck design prevents rotation, while the zinc-plated blue passivation offers excellent corrosion resistance. Perfect for secure fastening in industrial settings, this screw ensures longevity and reliability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Round Head Screw with Square Neck DIN 603 | Steel | Strength Class 8.8 | Zinc-Plated Blue Passivated | by WURTH
Brand: WURTH
SKU: 022396 80
Alternatively Known As: Round Head Square Neck Bolt, DIN 603 Screw, Zinc Plated Round Head Screw
Technical Specifications
- Material: Steel
- Strength Class: 8.8
- Coating: Zinc-plated, blue passivated (A2K)
- Standard: DIN 603
- Head Type: Round head
- Neck Type: Flat square neck
- Dimensions (H x L x W): 20mm x 80mm x 10mm
- Weight: 0.1 kg
Key Features
- Flat square neck prevents screw rotation in slots
- Round head design for aesthetic and functional purposes
- Zinc-plated with blue passivation for corrosion resistance
- Strength class 8.8 for high tensile strength
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper torque and secure fastening.
Applications
- Mechanical assemblies requiring secure fastening with anti-rotation features
- Construction and machinery where tightening from the nut side is needed
- General industrial and manufacturing use
Standards & Compliance
- Complies with AS/NZS 1252 – High tensile bolts for structural engineering
Environmental Benefits
- Zinc plating provides corrosion resistance, extending product life and reducing waste
- Durable steel construction reduces need for frequent replacements
Warranty Information
Standard manufacturer warranty against defects in material and workmanship.
Available Now
The WURTH Round Head Screw with Square Neck DIN 603 is available now for immediate purchase. Ideal for mechanical, construction, and industrial fastening applications.
