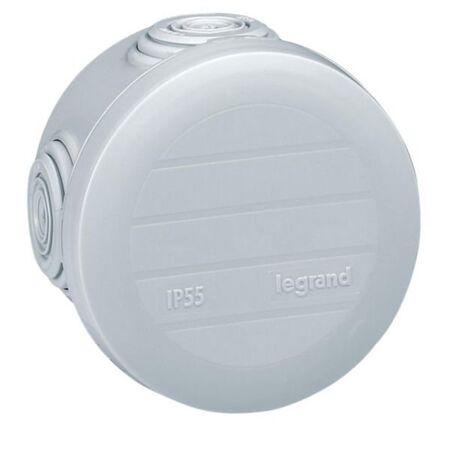

Round Plexo Box with 4 Direct Entry Membrane Glands | IP55 & IK07 Rated | Grey RAL 7035 | @Each of 1 | by Legrand
The Round Plexo Box with 4 direct entry membrane glands is designed for robust electrical junction applications, offering IP55 dust and water protection along with IK07 impact resistance. Ideal for both residential and commercial wiring installations, this halogen-free plastic box ensures safe and reliable cable connections in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Round Plexo Box with 4 Direct Entry Membrane Glands | IP55 & IK07 Rated | Grey RAL 7035 | @Each of 1 | by Legrand
Brand: Legrand
SKU: 092001
Alternatively Known As: Round Electrical Junction Box, Plexo Junction Box, IP55 Junction Box, Membrane Gland Box
Technical Specifications
- Degree of protection: IP55
- Impact resistance: IK07
- Material: Halogen-free plastic
- Operating temperature: -25°C to +40°C
- Cable/tube diameter acceptance: 4 to 20 mm
- Number of inlets: 4
- Cover attachment: Snapped on
- Surface protection: Untreated
- Storage temperature: -25°C to +70°C
- Mounting method: Universal
- Shape: Round
- Depth: 46 mm
- Diameter: 70 mm
- Entry membrane gland type: Flexible to cut
- Max conductor cross section: 20 mm²
- Dimensions (H x L x W): 46mm x 70mm x 70mm
- Weight: 0.1 kg
Key Features
- IP55 rated for dust and water protection
- IK07 impact resistance for mechanical protection
- 4 direct entry membrane glands suitable for cables and tubes from 4 to 20 mm
- Resistance to incandescent wire at 650°C
- Operating temperature range from -25°C to +40°C
- Halogen-free plastic construction compliant with RoHS directive
- Captive cover with tie and vertical level adjustment fixing
- Grey RAL 7035 color with clippable cover
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper sealing for IP55 protection.
Applications
- Electrical junction box for residential and commercial wiring installations
- Suitable for use in normal installation circuits requiring IP55 protection
- Ideal for protecting cable connections in indoor and outdoor environments
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free materials reduce environmental impact and improve safety
- Durable construction extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to Legrand for specific warranty details.
Available Now
The Legrand Round Plexo Box with 4 Direct Entry Membrane Glands is available for immediate purchase, ideal for electrical junction applications requiring robust protection.
