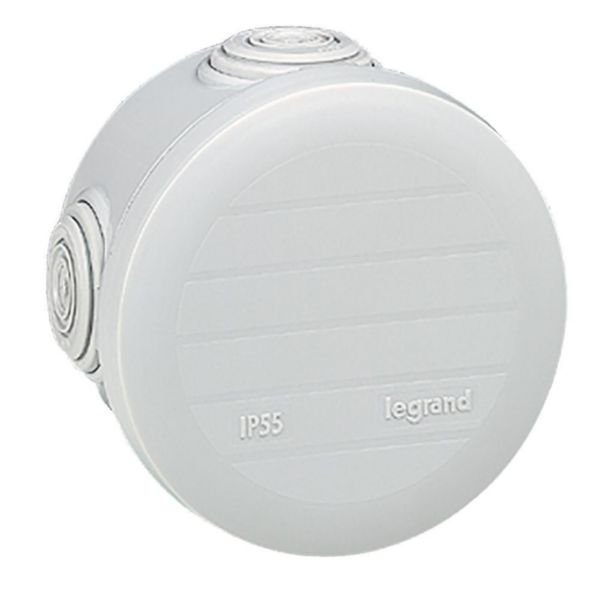

Round Plexo Box with 4 Direct Entry Membrane Glands | IP55 & IK07 Rated | Grey RAL 7035 | @Each of 1 | by Legrand
The Round Plexo Box with 4 direct entry membrane glands is designed for robust electrical junction applications, offering IP55 dust and water protection along with IK07 impact resistance. Ideal for both residential and commercial wiring installations, this box is made from halogen-free plastic, ensuring safety and compliance with RoHS directives. Its flexible membrane glands accommodate cables from 4 to 20 mm, making it versatile for various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Round Plexo Box with 4 Direct Entry Membrane Glands | IP55 & IK07 Rated | Grey RAL 7035 | @Each of 1 | by Legrand
Brand: Legrand
SKU: 092002
Alternatively Known As: Round Electrical Junction Box, Plexo Junction Box, IP55 Junction Box, Membrane Gland Box
Technical Specifications
- Degree of protection: IP55
- Impact resistance: IK07
- Material: Halogen-free plastic
- Operating temperature: -25°C to +40°C
- Number of inlets: 4
- Cable/tube diameter accepted: 4 to 20 mm
- Cover attachment: Snap-on
- Mounting method: Universal
- Max conductor cross section: 20 mm²
- Surface protection: Untreated
- Color: Grey RAL 7035
- Entry membrane gland type: Flexible to cut
- Vertical fixing center distance: 50 mm
- Horizontal fixing center distance: 50 mm
- Dimensions (H x L x W): 51mm x 80mm x 80mm
- Weight: 0.1 kg
Key Features
- IP55 rated for dust and water protection
- IK07 impact resistance for mechanical protection
- 4 direct entry membrane glands suitable for cables and tubes from 4 to 20 mm
- Captive clip-on cover with vertical level adjustment
- Halogen-free plastic construction compliant with RoHS directive
- Operating temperature range from -25°C to +40°C
- Grey RAL 7035 color with untreated surface
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper sealing for IP55 protection.
Applications
- Electrical junction box for residential and commercial wiring installations
- Suitable for use in normal installation circuits requiring IP55 protection
- Ideal for protecting cable connections in indoor and outdoor environments
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free materials reduce environmental impact and improve safety in case of fire
- Complies with European RoHS directive limiting hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to Legrand for specific warranty terms.
Available Now
The Legrand Round Plexo Box with 4 Direct Entry Membrane Glands is available for immediate purchase, ideal for electrical junction applications requiring robust protection and easy installation.
