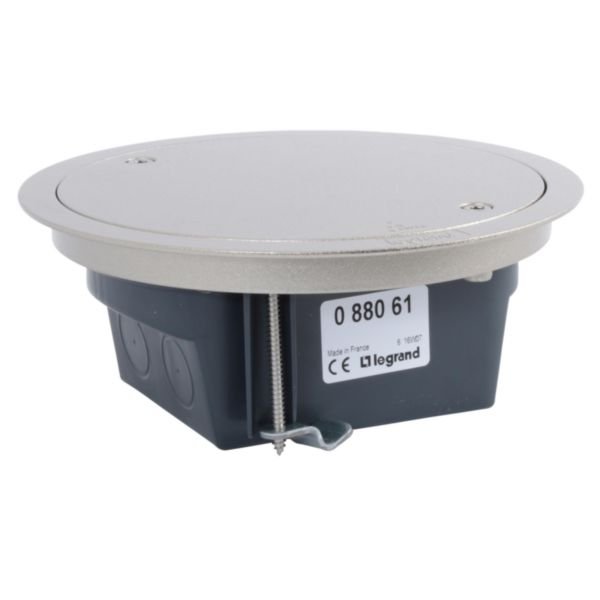

Round Waterproof Floor Box | IP66 Sealing | 1 Tonne Load Capacity | Stainless Steel Finish | @EA of 1 | by Legrand
The Round Waterproof Floor Box is designed for both indoor and outdoor use, featuring an IP66 sealing class for complete protection against dust and water. With a robust load capacity of up to 1 tonne and impact resistance IK09, it's perfect for public spaces and residential areas. The lockable cover ensures secure access, making it ideal for wiring devices in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sealing class: IP66
- Impact resistance: IK09 (10 Joules)
- Load capacity: Supports up to 1 tonne (closed cover)
- Cable entries pre-cut for 16, 20, and 25mm pipes
- Operating temperature range: -5 to 60 °C
- Outer diameter: 170 mm
- Built-in diameter: 152 mm
- Minimum built-in depth: 65 mm
- Depth: 70 mm
- Lockable cover with Allen key
- Chromium-plated housing surface protection
- Halogen free
- Dimensions (H x L x W): 70mm x 170mm x 170mm
- Weight: 2.5 kg
Key Features
- Sealing class IP66 for complete protection against dust and powerful water jets
- Supports load up to 1 tonne with closed cover
- Impact resistance class IK09 (10 Joules)
- Pre-cut cable entries for pipe diameters 16, 20, and 25mm
- Lockable cover with Allen key for secured access
- Chromium-plated surface protection housing
- Halogen free material
- Suitable for wet cleaning
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure proper sealing and compliance with electrical safety standards.
Applications
- Indoor and outdoor installation
- Public spaces such as shopping malls and hotels
- Residential areas including terraces and poolside
- Suitable for screed floors, technical floors, elevated decks, subfloor ducts, hollow floors, double floor built-in, concrete installation, and floors in computer rooms
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Durable stainless steel construction reduces need for frequent replacements
- Halogen free materials contribute to safer environmental impact
- IP66 rating ensures long-lasting protection reducing waste from damage
Warranty Information
Standard Legrand warranty applies; typically 2 years against manufacturing defects.
Available Now
The Legrand Round Waterproof Floor Box with removable lid for wiring devices 4 modules in stainless steel finish is available for immediate purchase. Ideal for both indoor and outdoor applications in residential and commercial environments.
