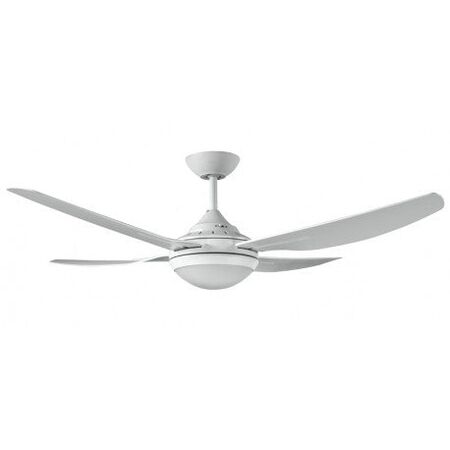

Royale II 1320mm 4 Blade Ceiling Fan 18W LED White Ventair
Royale Ii 52"/1320mm ABS 4 Blade Ceiling Fan with 18W LED Light White by Ventair
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Ventair ROY1304WH-L, Royale II 52-inch Ceiling Fan, 1320mm Ceiling Sweep Fan
Technical Specifications
- Model: ROY1304WH-L
- Colour: White
- Motor Type: AC ball-bearing motor
- Motor Power: 75W
- Rated Input: 220-240V AC, 50Hz
- Blade Count: 4
- Blade Material: Precision-moulded ABS plastic
- Fan Speed: 210/150/102 RPM high/medium/low
- Air Movement: 13,120m³/h
- Light Type: Integrated LED panel
- LED Power: 18W
- LED Output: 1500 lumens
- Light Colour: 4000K natural white
- Airflow Direction: Reversible for summer and winter operation
- Controller: Three-speed wall controller included
- Remote Compatibility: Compatible with optional NGCFRC or UCFR controllers
- Mounting: Hangsure ceiling mount
- Suitable Location: Indoor and covered outdoor areas
- Packaging Size: 590 x 280 x 290mm
- Dimensions (H x L x W): 372mm x 1320mm x 1320mm
- Weight: 5 kg
Key Features
- Four precision-moulded ABS blades
- Pre-balanced blades for smoother and quieter operation
- Reversible airflow for summer and winter use
- Integrated 18W LED panel included
- 1500-lumen natural-white illumination at 4000K
- Quick-connect wiring and fittings
- Compatible with optional remote controls
- Suitable for indoor and covered outdoor applications
- Includes three-speed wall controller and mounting bracket
Professional Installation Requirements
- Installation must be performed by a qualified and licensed electrician. The ceiling structure and mounting bracket must support at least 30kg, all-pole disconnection must be provided in the fixed wiring, and the blades should be installed at least 2.1m above the floor in accordance with applicable wiring rules.
Applications
- Bedrooms and living rooms
- Dining and family rooms
- Covered patios, alfresco areas and verandahs
- Indoor residential areas
- Covered outdoor residential areas
- Light commercial spaces where permitted by warranty conditions
Standards & Compliance
- AS/NZS 60335.2.80 for the safety of household and similar electric fans
- AS/NZS 3000 for fixed electrical wiring and installation requirements
Environmental Benefits
- Integrated LED lighting provides illumination with lower operating power than many conventional fan light sources
- Reversible airflow supports seasonal air circulation and may reduce reliance on mechanical heating or cooling
- Durable ABS blades and long-life motor components can help reduce replacement frequency and product waste
- LED panel technology avoids routine globe replacement during normal service life
Warranty Information
Six-year domestic warranty comprising two years of in-home service followed by four years of motor replacement coverage. The LED panel has a one-year warranty, remote control components have a one-year warranty where applicable, and commercial use is covered for one year. Warranty conditions require installation by a qualified electrician.
Available Now
Available through authorised Ventair distributors in Australia.
Ceiling Fan Sizing Calculator
This calculator uses typical airflow recommendations. Users must verify results according to AS/NZS 3000:2018 and specific manufacturer specs.
