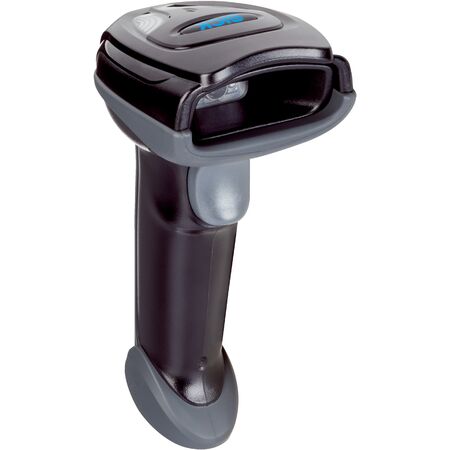

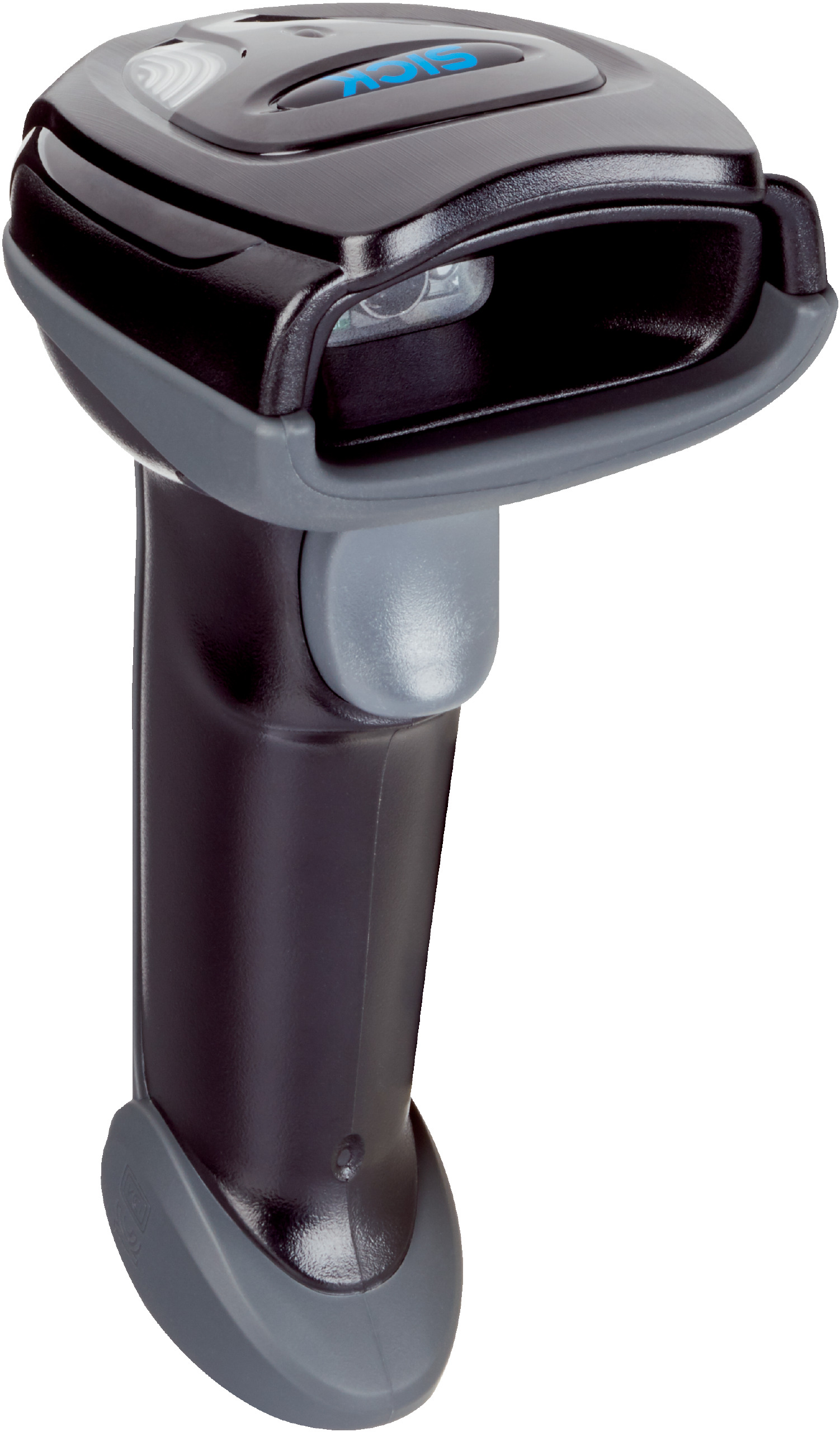

RS-232 Wireless Barcode Scanner | 1280 px Resolution | Bluetooth V4.0 | IP52 Rated | by SICK
The RS-232 Wireless Barcode Scanner features a high sensor resolution of 1280 px x 800 px and Bluetooth V4.0 connectivity, making it perfect for industrial and logistics environments. With a reading distance of 30 mm to 400 mm and an IP52 rated enclosure for dust and splash protection, this handheld scanner is designed for efficient mobile scanning and batch data transmission.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor resolution: 1280 px x 800 px
- Light source: LED visible red, 660 nm
- Alignment aid: LED green, 660 nm
- Reading distance: 30 mm to 400 mm
- Scanning frequency: 60 Hz
- Code resolution: ≥ 0.07 mm (1D), ≥ 0.13 mm (2D)
- Supply voltage: 5 V DC ± 5%
- Current consumption: 750 mA (operation), 175 mA (standby)
- Enclosure rating: IP52
- Weight: 208 g including UltraCap™ rechargeable battery
- MTBF: 100,000 hours
- Wireless range: up to 100 m (free view)
- Code buffer: 5,000 codes (batch mode), 100,000 codes (out of range)
- Interfaces: Ethernet, PROFINET, EtherCAT®, PROFIBUS DP, Serial RS-232, USB, Bluetooth V4.0
- Dimensions (H x L x W): 160mm x 94mm x 71mm
- Weight: 0.208 kg
Key Features
- Cable-free design with UltraCap™ supercapacitor for batteryless voltage supply
- Long service life reducing operating costs and electronic waste
- Wireless variant with Bluetooth V4.0 and up to 100 m operating range
- High sensor resolution of 1280 px x 800 px
- Reads 1D, 2D, and stacked barcodes including QR codes and Data Matrix
- IP52 rated enclosure for dust and splash protection
- Shock resistant to 25 drops from 1.8 m height
- LED visible red light source (660 nm) and green alignment aid
- Scanning frequency of 60 Hz with reading distance from 30 mm to 400 mm
- Code buffer supports up to 100,000 codes for out of range scanning
Professional Installation Requirements
- Professional installation recommended for integration with existing network and power systems, including configuration of wireless communication and base station setup.
Applications
- Standard application for wireless barcode scanning
- Industrial and logistics environments requiring mobile handheld scanning
- Batch scanning and wireless data transmission
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Batteryless operation with UltraCap™ supercapacitor reduces electronic waste
- Long service life lowers replacement frequency and environmental impact
- Non-hazardous for shipping, minimizing transport-related risks
Warranty Information
Warranty details available upon request from manufacturer; typically includes coverage against manufacturing defects.
Available Now
The SICK IDM241E-411S RS-232 wireless handheld scanner is available for immediate purchase, ideal for industrial, logistics, and warehouse scanning applications.
