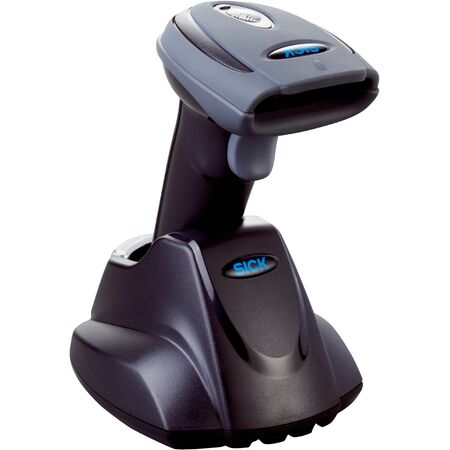

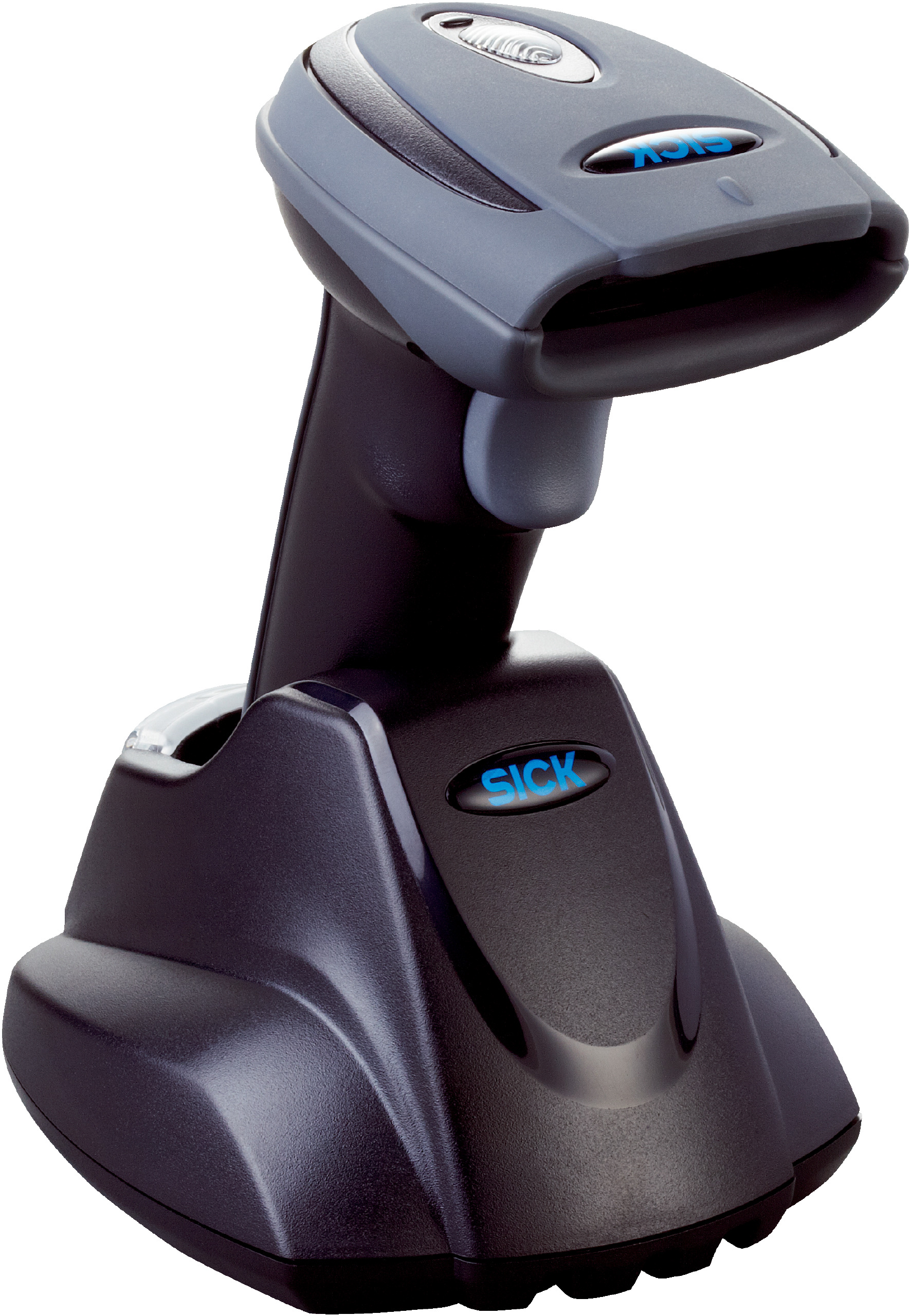

RS-232 Wireless Barcode Scanner | UltraCap™ Batteryless Design | IP52 Rated | by SICK
The RS-232 Wireless Barcode Scanner features a cable-free design with UltraCap™ technology, allowing for batteryless operation and a long service life. Ideal for mobile handheld scanning in industrial and commercial environments, it supports multiple interfaces and reads 1D and stacked barcodes with high resolution. With an IP52 rating for dust and water protection, this scanner is perfect for logistics, warehousing, and retail applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Light source: Visible red LED, 630 nm
- Reading distance: 20 mm to 850 mm
- Scanning frequency: ≤ 500 Hz
- Code resolution: ≥ 0.076 mm
- Supply voltage: 3.7 V DC to 5 V
- Current consumption: 180 mA operation, 80 mA standby
- Weight: 230 g including rechargeable battery
- Enclosure rating: IP52
- Shock resistance: 25 drops from 1.8 m height on concrete
- Ambient operating temperature: -10 °C to +50 °C
- Storage temperature: -40 °C to +70 °C
- Permissible relative humidity: up to 95%, non-condensing
- Ambient light immunity: 100,000 lx
- Code types supported: 1D codes, stacked codes including PDF417 and MicroPDF417
- Battery power: Over 60,000 scans per full charge
- Code buffer: 80,000 codes (EAN)
- Dimensions (H x L x W): 98mm x 156mm x 71mm
- Weight: 0.23 kg
Key Features
- Cable-free design with UltraCap™ supercapacitor for batteryless voltage supply
- Long service life reducing operating costs and electronic waste
- Wireless variant with wireless operating range up to 100 m (free view)
- Supports multiple interfaces including RS-232 TTL, Ethernet, PROFINET, EtherCAT®, PROFIBUS DP, USB, and Bluetooth V4.0
- Reads 1D and stacked barcodes with high resolution and scanning frequency
- Shock resistant with 25 drops from 1.8 m height on concrete
- IP52 rated enclosure for protection against dust and water splashes
- Optical and acoustic indicators for good read, battery charge, and radio connection status
Professional Installation Requirements
- Professional installation recommended for integration with existing systems and to ensure compliance with electrical and communication standards.
Applications
- Standard application for wireless barcode scanning
- Mobile handheld scanning in industrial and commercial environments
- Use in logistics, warehousing, and retail for barcode reading
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Batteryless voltage supply reduces hazardous waste and environmental impact
- Long service life of UltraCap™ supercapacitor lowers electronic waste
- Non-hazardous goods classification facilitates safer shipping and handling
Warranty Information
Warranty details available upon request from SICK; typically includes coverage against manufacturing defects.
Available Now
The SICK IDM141E-411S RS-232 Wireless Barcode Scanner is available for immediate purchase, ideal for industrial, logistics, and commercial barcode scanning applications.
