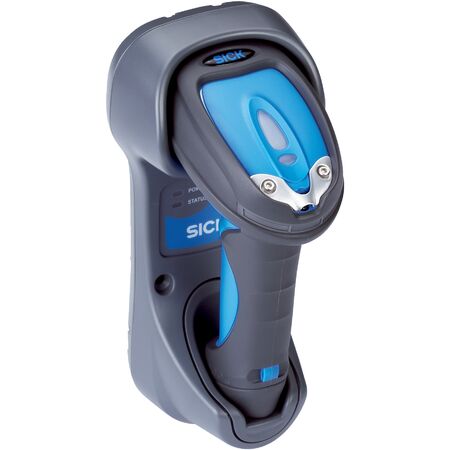

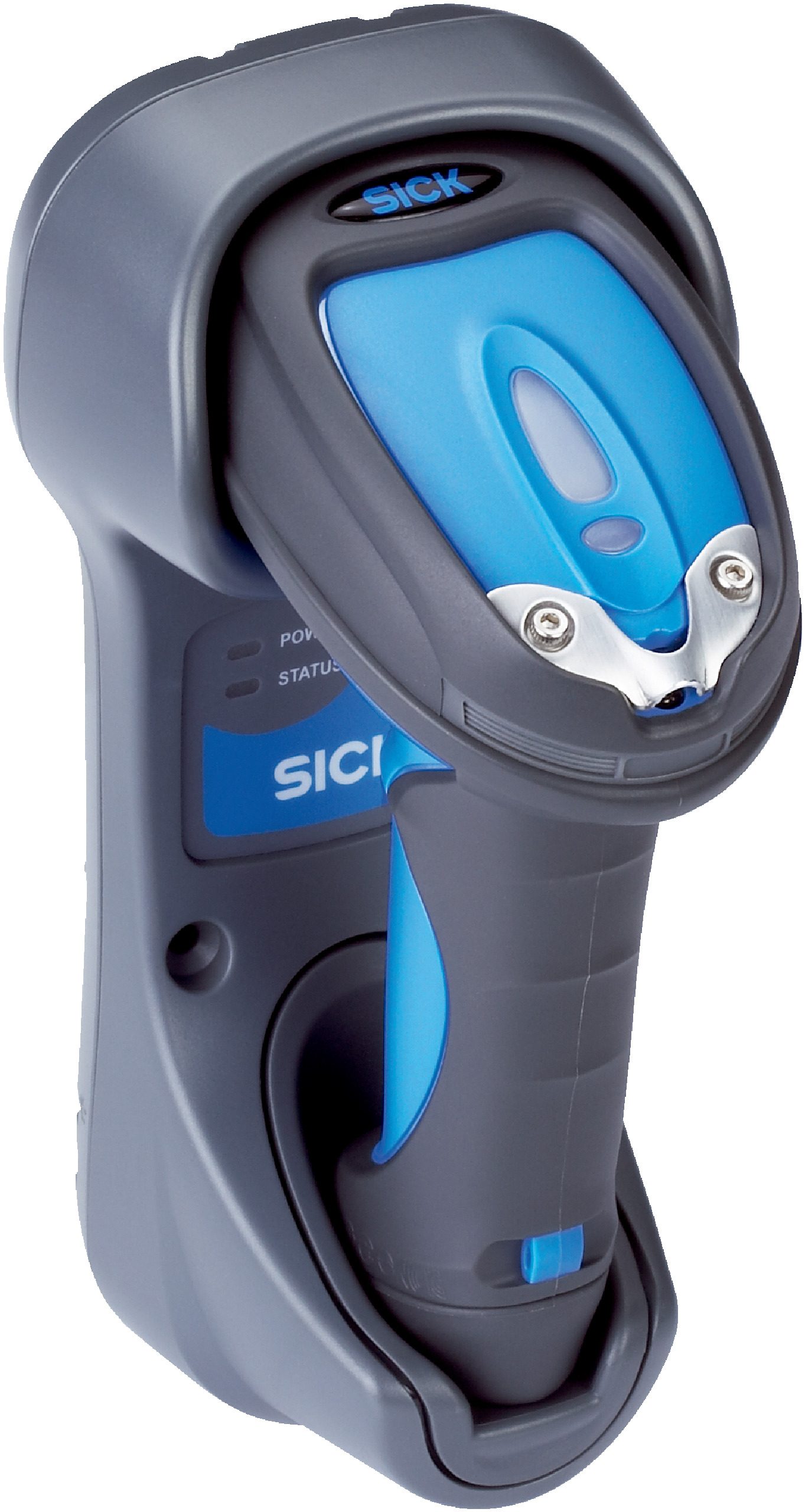

RS-232 Wireless Industrial Barcode Scanner | UltraCap™ Batteryless | IP65 Rated | 20 mm to 850 mm Reading Distance | by SICK
The RS-232 Wireless Industrial Barcode Scanner is designed for seamless barcode scanning in industrial applications, featuring a cable-free design with UltraCap™ technology for batteryless operation. With a reading distance of 20 mm to 850 mm and an IP65 rated enclosure, it’s perfect for manufacturing and logistics environments, ensuring durability and reliability even in harsh conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Light source: LED, Visible, Red, 630 nm
- Reading distance: 20 mm to 850 mm
- Scanning frequency: ≤ 500 Hz
- Code resolution: ≥ 0.076 mm
- Supply voltage: 3.7 V DC
- Current consumption: Operation 180 mA, Standby 80 mA
- Enclosure rating: IP65
- Weight: 220 g including rechargeable battery
- Readable code structures: 1D codes, Stacked
- Supported barcode types: Code 39, Code 128, GS1-128, Codabar, UPC/EAN/JAN, and many others
- Stacked code types: PDF417, MicroPDF417, Composite Code
- Battery power: Over 60,000 scans with full battery
- Code buffer: 80,000 codes (EAN)
- Interfaces: Ethernet (TCP/IP), PROFINET, EtherCAT®, RS-232 TTL, PROFIBUS DP, USB, Bluetooth V4.0
- Shock resistance: 50 drops from 2 m height on concrete
- Operating temperature: -20 °C to +50 °C
- Storage temperature: -40 °C to +70 °C
- Relative humidity: up to 95%, non-condensing
- Ambient light immunity: 100,000 lx
- Dimensions (H x L x W): 176mm x 104mm x 76mm
- Weight: 0.22 kg
Key Features
- Cable-free design with UltraCap™ supercapacitor for batteryless voltage supply
- Long service life reducing operating costs and electronic waste
- Wireless variant with wireless operating range up to 100 m (free view)
- Supports multiple interfaces including Ethernet, PROFINET, EtherCAT®, RS-232 TTL, PROFIBUS DP, USB, and Bluetooth V4.0
- High scanning frequency up to 500 Hz and reading distance from 20 mm to 850 mm
- IP65 rated enclosure for robust industrial use
- Shock resistant to 50 drops from 2 m height on concrete
- Optical, acoustic, and vibration indicators for status feedback
- Code buffer capacity of 80,000 codes (EAN)
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper integration with industrial systems and compliance with electrical standards.
Applications
- Industrial applications requiring wireless barcode scanning
- Mobile handheld scanning in manufacturing and logistics
- Environments needing batteryless voltage supply solutions
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- UltraCap™ supercapacitor reduces electronic waste compared to battery-operated devices
- Non-hazardous goods classification facilitates safer shipping and handling
Warranty Information
Warranty details available upon request from manufacturer; typically includes coverage against manufacturing defects.
Available Now
The SICK IDM161E-411S RS-232 wireless industrial scanner is available for immediate purchase, ideal for industrial and manufacturing environments requiring reliable wireless barcode scanning.
