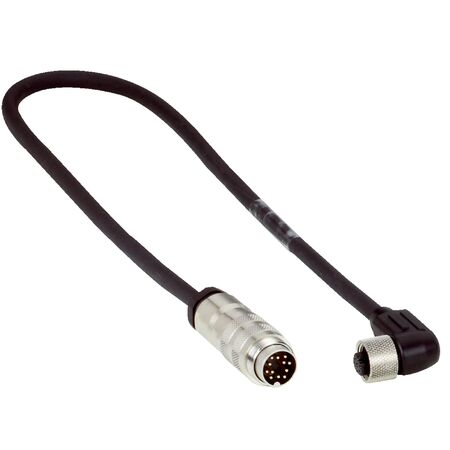

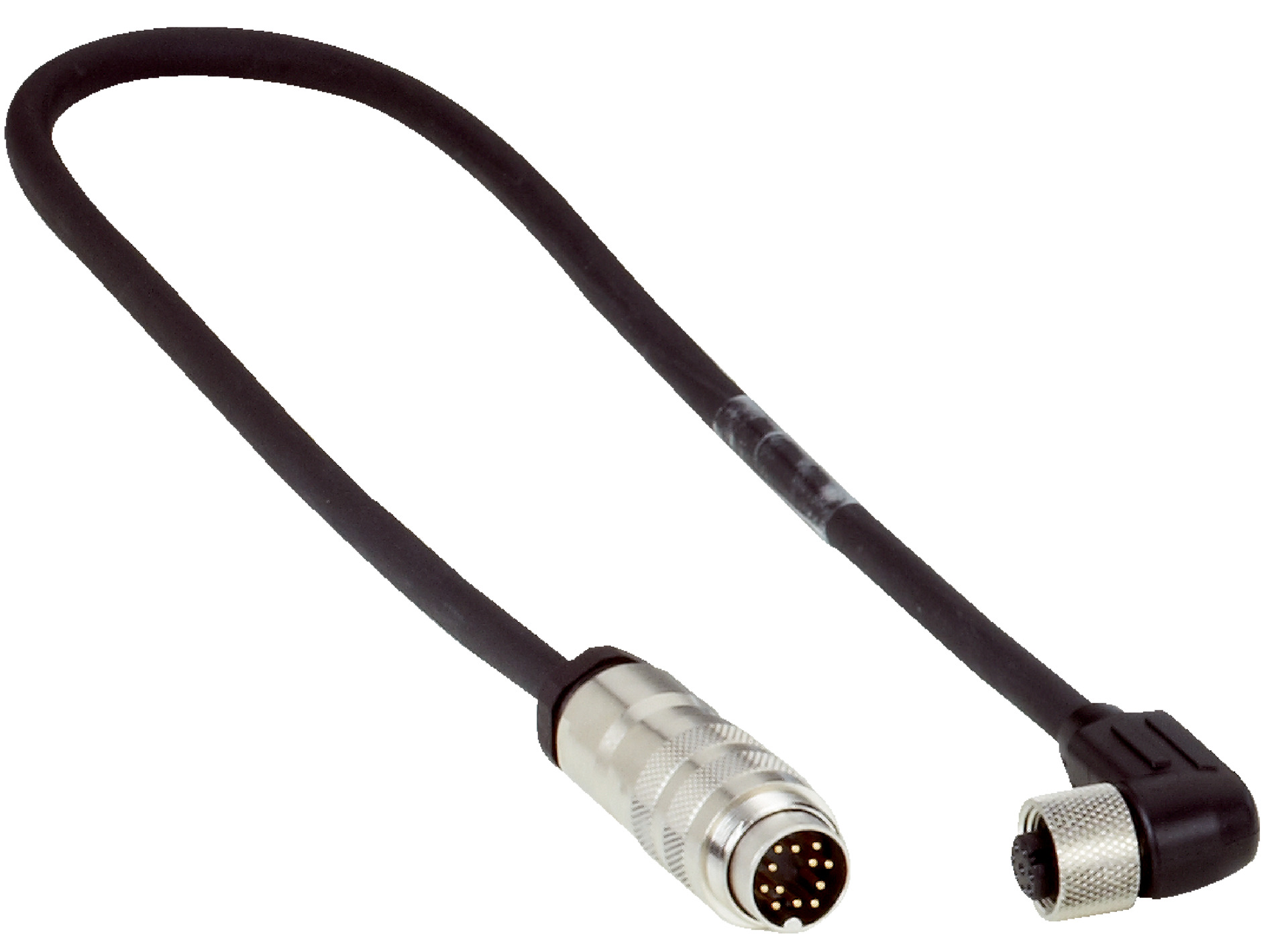

RS-422 SSI Adapter Cable | M12 to M16 Connectors | 0.4m Length | Shielded | by SICK
The RS-422 SSI Adapter Cable is designed for seamless connectivity in industrial automation systems. Featuring a female M12 angled connector and a male M16 straight connector, this 0.4m shielded cable ensures reliable signal transmission for RS-422 and SSI applications. Ideal for connecting DME3000 and DL100 devices, it’s built with a halogen-free PUR jacket for enhanced safety and environmental benefits.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Female connector, M12, 8-pin, angled
- Connection type head B: Male connector, M16, 12-pin, straight
- Cable length: 0.4 m
- Cable wires: 8-wire
- Cable jacket material: PUR, halogen-free
- Cable diameter: 8.7 mm
- Shielding: Shielded
- Signal type: RS-422, SSI
- Note: DME3000 to DL100 SSI / RS-422 adapter cable
- Dimensions (H x L x W): 10mm x 400mm x 10mm
- Weight: 0.1 kg
Key Features
- Female connector M12, 8-pin angled on head A
- Male connector M16, 12-pin straight on head B
- 0.4 m length, 8-wire PUR halogen-free cable
- Shielded cable for signal integrity
- Supports RS-422 and SSI signal types
Professional Installation Requirements
- Installation by qualified personnel familiar with industrial communication cabling and connectors is recommended to ensure proper connection and signal integrity.
Applications
- Industrial automation systems requiring RS-422 or SSI signal transmission
- Connection between DME3000 and DL100 devices
- Factory and process automation environments
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Halogen-free cable reduces environmental impact and improves safety in case of fire
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK YG2Z18-C60XXXM2Z1B adapter cable is available for immediate purchase, ideal for industrial automation and communication applications.
