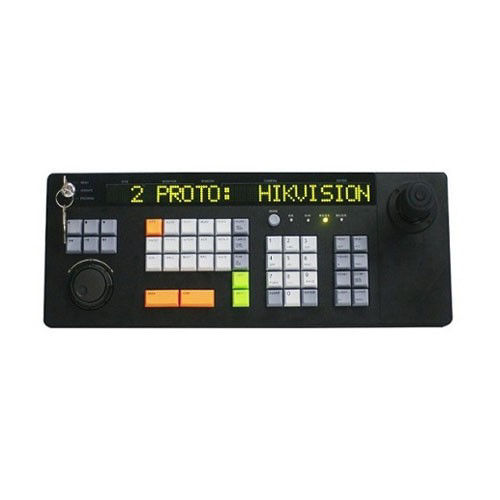

RS485 Keyboard with Joystick Hikvision
Hikvision RS485 keyboard features joystick control. Ideal for CCTV and security installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision PTZ Keyboard, CCTV Joystick Controller, RS485 Security Camera Keyboard
Technical Specifications
- Model: DS-1006KI
- Control Method: Serial control via RS232, RS422 and RS485
- Serial Interfaces: 1 x RS232, 1 x RS422, 1 x RS485
- USB Interface: 1 x USB 2.0
- Display: 128 x 64 dot-matrix screen
- Joystick: 4-axis, single-button joystick
- Power Supply: 12 VDC
- Power Consumption: ≤4.7 W
- Operating Temperature: -10 °C to 55 °C
- Operating Humidity: 10% to 90%
- Network Interface: Not supported
- Wi-Fi: Not supported
- Certifications Listed by Manufacturer: CE-EMC, CE-LVD, RoHS, CB, UL, FCC-SDoC and IBIS
- Dimensions (H x L x W): 123.2mm x 348.2mm x 169mm
- Weight: 1.6 kg
Key Features
- Full-featured RS485 serial keyboard for CCTV and security systems
- 4-axis joystick for PTZ camera control
- Supports compatible cameras, DVRs and NVRs
- RS232, RS422 and RS485 connectivity
- 128 x 64 screen displays operating information
- USB interface for firmware upgrades and configuration file management
- Supports serial control of PTZ cameras and compatible recording equipment
Professional Installation Requirements
- No licensed electrical installation is generally required for the 12 VDC keyboard itself. Connection to CCTV, PTZ, DVR or NVR equipment should be completed by a suitably qualified security or communications technician in accordance with the equipment manufacturers' instructions.
Applications
- PTZ camera control
- CCTV system operation
- DVR and NVR control
- Security monitoring rooms
- Video surveillance system integration
- Commercial and industrial security installations
Standards & Compliance
- AS/NZS 62676.1.1:2020 is relevant to video surveillance system requirements and CCTV system integration; Hikvision does not state product-specific compliance with this standard for the DS-1006KI.
Environmental Benefits
- RoHS certification listed by the manufacturer supports restriction of certain hazardous substances
- Low-voltage 12 VDC operation and power consumption of up to 4.7 W can reduce operating energy compared with higher-power control equipment
- Robust reusable control hardware can reduce replacement and electronic waste over the service life of a CCTV system
Warranty Information
Hikvision Australia warranty coverage is product-line dependent. Hikvision's Australian RMA policy lists 36-month standard warranty periods for several related security product categories; confirm current DS-1006KI coverage with the authorised Australian distributor before purchase.
Available Now
Available through Hikvision and authorised Australian security equipment distributors, subject to regional stock and product lifecycle status.
