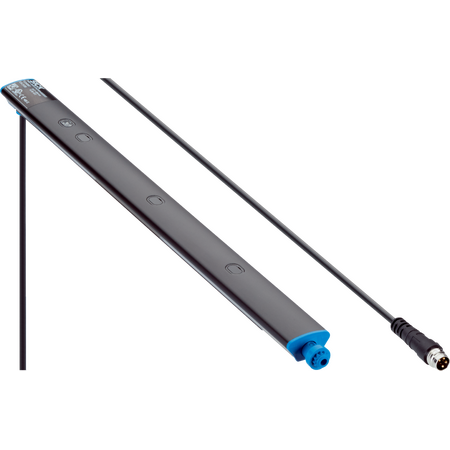

RSB1-0555H065050AB5BZZZZZZ | Photoelectric sensors
The SICK RSB1-0555H065050AB5BZZZZZZ is a high-performance photoelectric proximity sensor featuring an energetic principle, infrared LED light source, and robust IP67 rated aluminum housing, ideal for precise object detection in industrial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: RSB1-0555H065050AB5BZZZZZZ | Photoelectric sensors
Brand: SICK
SKU: 1143189
Alternatively Known As: Photoelectric proximity sensor, Infrared photo sensor, SICK RSB1 sensor, Industrial photoelectric sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 38 mA without load at 24 V
- Digital outputs: 2 complementary push-pull (PNP/NPN), light/dark switching
- Output current max: ≤ 100 mA
- Response time: ≤ 1 ms
- Switching frequency: 500 Hz
- LED wavelength: 850 nm
- Number of beams: 8
- Beam separation: 65 mm
- Enclosure rating: IP67 (EN 60529)
- Operating temperature: -40 °C to +60 °C
- Storage temperature: -40 °C to +75 °C
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10 Hz to 55 Hz, amplitude 1 mm
- Protection class: III
- Cable with male M8 4-pin connector, 150 mm length
- Dimensions (H x L x W): 17mm x 555mm x 20mm
- Weight: 0.202 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Sensing range from 2 mm to 300 mm, optimal performance between 2 mm and 45 mm
- Infrared LED light source with 850 nm wavelength
- Point-shaped light spot size 27 mm x 29 mm at 45 mm distance
- 8 beams with 65 mm beam separation
- LED green operating indicator and LED yellow status indicator
- Response time ≤ 1 ms and switching frequency up to 500 Hz
- Push-pull complementary digital outputs (PNP/NPN) with light/dark switching
- Protection class III with reverse polarity, overcurrent, and short-circuit protection
- Robust metal aluminum anodised housing with PMMA front screen
- IP67 rated enclosure for dust and water protection
- Wide ambient operating temperature range from -40 °C to +60 °C
- Shock resistance 30 g and vibration resistance 10 Hz to 55 Hz
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor systems to ensure proper wiring, alignment, and compliance with safety standards.
Applications
- Detecting flat objects
- Detecting perforated objects
- Detecting objects with position tolerances
- Detecting uneven, shiny objects
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Long LED service life of 100,000 hours reduces waste and replacement frequency
- Energy-efficient LED light source minimizes power consumption
- Durable metal housing extends product lifespan, reducing environmental impact
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK RSB1-0555H065050AB5BZZZZZZ photoelectric sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
