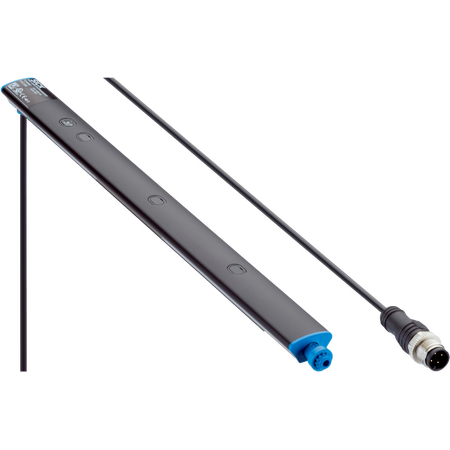

RSB1-1000H111111BA4DZZZZZZ | Photoelectric sensors

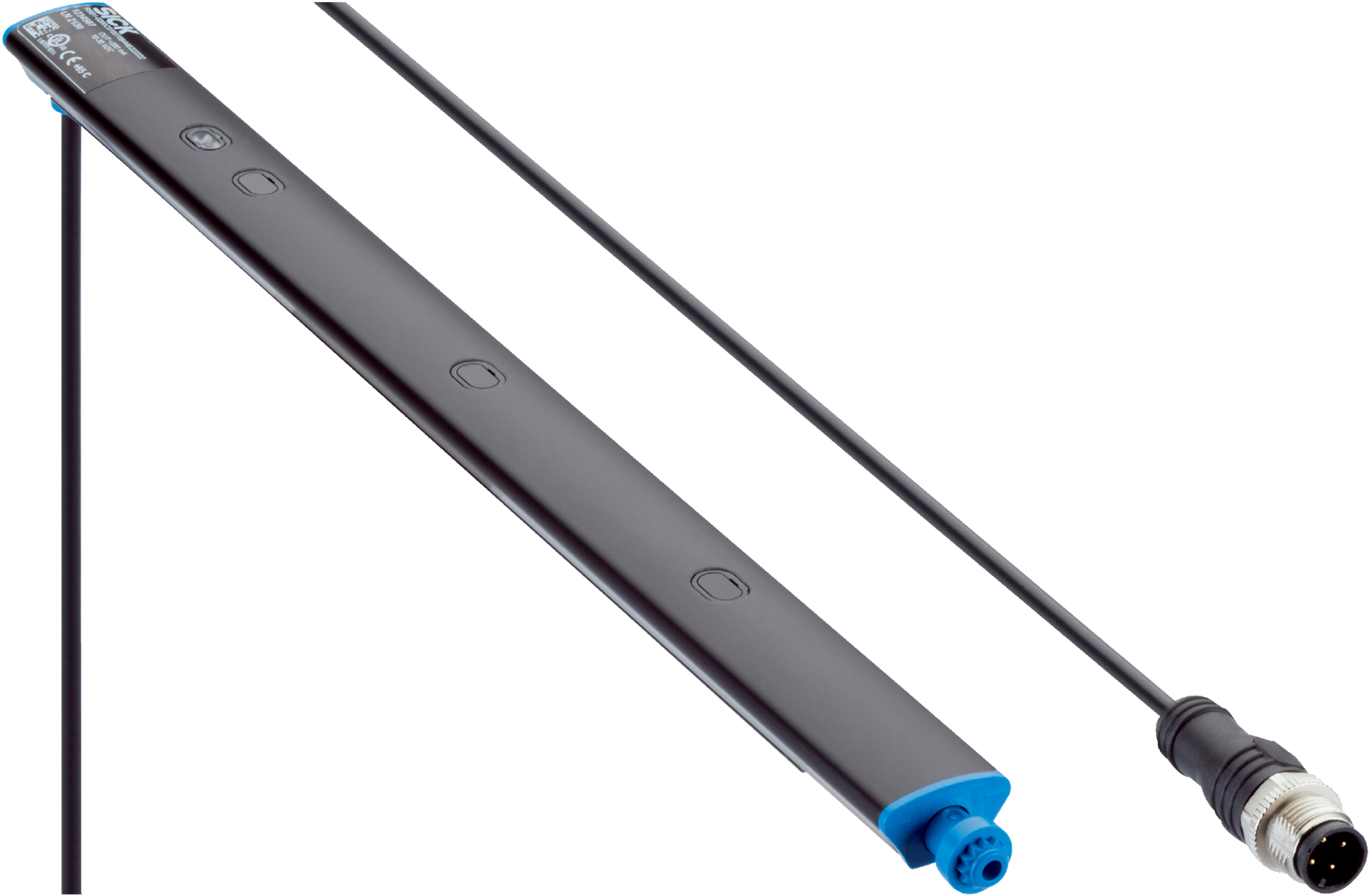

The SICK RSB1-1000H111111BA4DZZZZZZ is a high-performance photoelectric proximity sensor featuring an energetic infrared LED light source, robust metal housing, and IP67 protection, ideal for precise object detection in industrial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: RSB1-1000H111111BA4DZZZZZZ | Photoelectric sensors
Brand: SICK
SKU: 1148014
Alternatively Known As: Photoelectric proximity sensor, Infrared photo sensor, SICK RSB1 sensor, Industrial photoelectric sensor
Technical Specifications
- Functional principle: Energetic photoelectric proximity sensor
- Sensing range: 2 mm to 300 mm (optimal 2 mm to 45 mm)
- Light source: Infrared LED, 850 nm wavelength
- Number of beams: 8 with 111 mm separation
- Digital outputs: 2 complementary push-pull (PNP/NPN), max 100 mA
- Response time: ≤ 1 ms, switching frequency: 500 Hz
- Supply voltage: 10 V DC to 30 V DC
- Protection class: III
- Enclosure rating: IP67
- Operating temperature: -40 °C to +60 °C
- Housing material: Anodised aluminum
- Cable connection: M12, 4-pin connector with 500 mm cable
- Dimensions (H x L x W): 17mm x 1000mm x 20mm
- Weight: 0.363 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Sensing range from 2 mm to 300 mm, optimal 2 mm to 45 mm
- Infrared LED light source with 850 nm wavelength
- Point-shaped light spot size 27 mm x 29 mm at 45 mm distance
- 8 beams with 111 mm beam separation
- LED indicators for power and object detection status
- Push-pull complementary digital outputs (PNP/NPN)
- Short-circuit, overcurrent, and reverse polarity protected outputs
- High switching frequency of 500 Hz and response time ≤ 1 ms
- Robust metal aluminum anodised housing with IP67 rating
- Wide ambient operating temperature range from -40 °C to +60 °C
- Shock and vibration resistant
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Detecting flat objects
- Detecting perforated objects
- Detecting objects with position tolerances
- Detecting uneven, shiny objects
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient LED light source with long service life reduces power consumption and waste
- Durable metal housing extends product lifespan, reducing replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK RSB1-1000H111111BA4DZZZZZZ photoelectric sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
