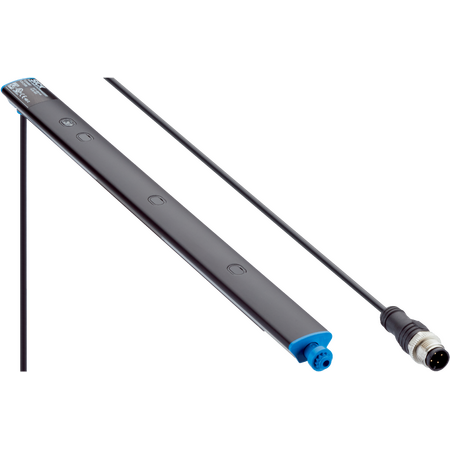

RSB1-1200G162123FZ4BS01ZZZ | Photoelectric sensors
The SICK RSB1-1200G162123FZ4BS01ZZZ is a high-performance photoelectric proximity sensor designed for precise detection of various object types with a sensing range up to 300 mm and robust IP67 rated housing.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: RSB1-1200G162123FZ4BS01ZZZ | Photoelectric sensors
Brand: SICK
SKU: 1134999
Alternatively Known As: Photoelectric proximity sensor, Infrared photo sensor, PNP photoelectric sensor, SICK RSB1 sensor
Technical Specifications
- Functional principle: Energetic photoelectric proximity sensor
- Sensing range: 2 mm to 300 mm, recommended 2 mm to 45 mm
- Light source: Infrared LED, 850 nm wavelength
- Number of beams: 7 with 162 mm beam separation
- Digital output: 1 PNP, dark switching, max 100 mA output current
- Supply voltage: 10 V DC to 30 V DC with ≤ 5 V ripple
- Response time: ≤ 1 ms, switching frequency: 500 Hz
- Protection class: III
- Enclosure rating: IP67
- Operating temperature: -40 °C to +60 °C
- Housing material: Anodised aluminum with PMMA front screen
- Cable: PVC, 150 mm length, 4-pin M12 connector
- Dimensions (H x L x W): 20mm x 17mm x 1200mm
- Weight: 0.435 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Sensing range from 2 mm to 300 mm, optimal performance between 2 mm and 45 mm
- Infrared LED light source with 850 nm wavelength
- Point-shaped light spot size 27 mm x 29 mm at 45 mm distance
- 7 beams with 162 mm beam separation
- LED green operating indicator and LED yellow status indicator
- Dark switching PNP digital output with reverse polarity, overcurrent, and short-circuit protection
- Response time ≤ 1 ms and switching frequency up to 500 Hz
- Robust metal aluminum anodised housing with plastic PMMA front screen
- IP67 rated enclosure for dust and water protection
- Operating temperature range from -40 °C to +60 °C
- Shock resistance 30 g and vibration resistance 10 Hz to 55 Hz
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and sensor alignment for optimal performance.
Applications
- Detecting flat objects
- Detecting perforated objects
- Detecting objects with position tolerances
- Detecting uneven, shiny objects
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Long LED service life of 100,000 hours reduces waste and replacement frequency
- Energy-efficient LED light source minimizes power consumption
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK RSB1-1200G162123FZ4BS01ZZZ photoelectric sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
