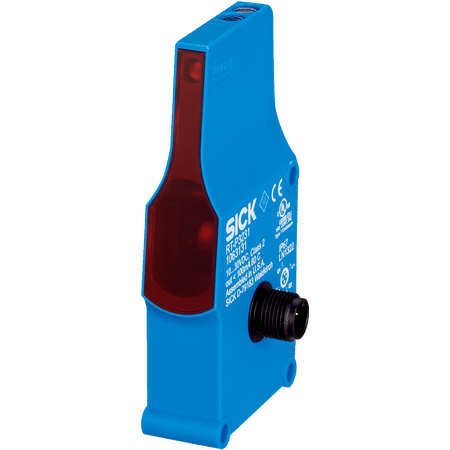

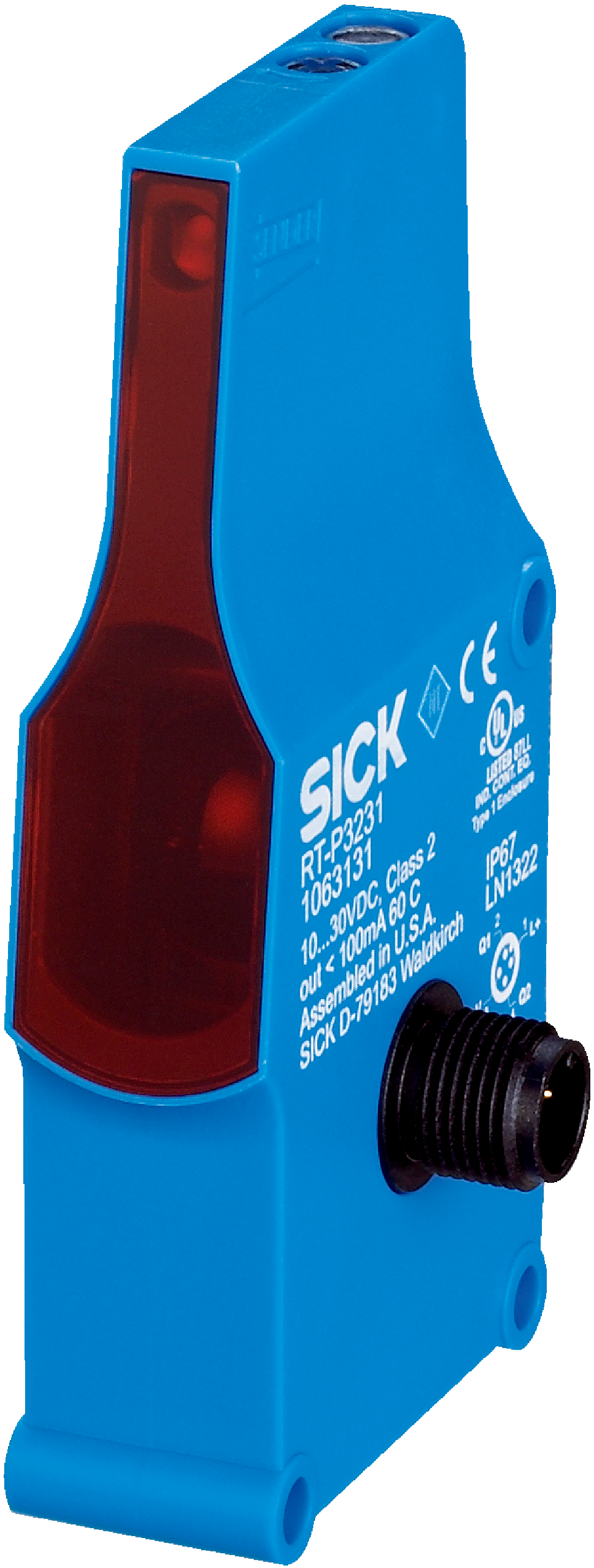

RTF-P3221 | Photoelectric sensors
The SICK RTF-P3221 is a robust photoelectric proximity sensor featuring background suppression, ideal for industrial automation and ZoneControl applications with a sensing range up to 900 mm and IP67 protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: RTF-P3221 | Photoelectric sensors
Brand: SICK
SKU: 1063171
Alternatively Known As: Photoelectric proximity sensor, Background suppression sensor, Infrared proximity sensor, PNP photoelectric sensor
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range: 60 mm to 900 mm
- Light source: Infrared LED
- Light spot size: Ø 20 mm at 500 mm distance
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 20 mA
- Switching output: PNP, light/dark switching
- Output current max: ≤ 100 mA
- Response time: 2 ms
- Switching frequency: 250 Hz
- Connection type: Male connector M12, 4-pin
- Protection class: III
- Enclosure rating: IP67
- Housing material: Plastic, ABS
- Operating temperature: -40 °C to +60 °C
- Storage temperature: -40 °C to +75 °C
- Shock and vibration resistance: According to IEC 68
- Dimensions (H x L x W): 99mm x 49mm x 21mm
- Weight: 0.175 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Sensing range from 60 mm to 900 mm
- Infrared LED light source with 7° angle of dispersion
- Potentiometer adjustment with 9 turns for sensitivity tuning
- IP67 rated enclosure for dust and water protection
- Shock and vibration resistant according to IEC 68
- Operating temperature range from -40 °C to +60 °C
- PNP switching output with light/dark switching mode
- Response time of 2 ms and switching frequency of 250 Hz
- Off delay time function adjustable from 0 to 5 seconds
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation for object detection
- Material handling and packaging systems
- Safety and control in manufacturing processes
- ZoneControl applications requiring precise sensing
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable design minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK RTF-P3221 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
