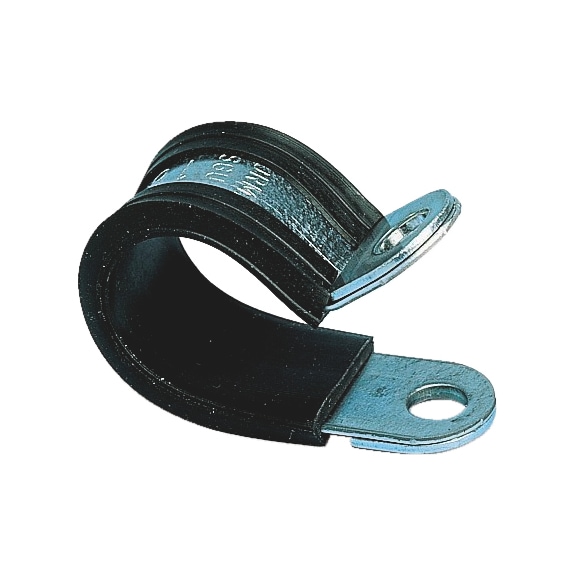

Rubber Profile Hose Clamp | EPDM Material | Vibration Dampening | Zinc Plated | by Wurth
The Rubber Profile Hose Clamp is designed for securing hoses and pipes in automotive, industrial, and construction settings. Made from durable EPDM rubber and zinc-plated steel, it offers excellent vibration dampening and protection against water intrusion. Ideal for professional installations, this clamp ensures safety compliance while extending product life through its resistance to environmental degradation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Width (B): 12 mm
- Nominal diameter (D): 12 mm
- Flange hole (d1): M5
- Distance centre of pipe to centre of hole (S): 14 mm
- Material: Steel
- Surface: Zinc plated
- Material of rubber profile: EPDM
- Colour of rubber profile: Black
- Shore A hardness: 70 +/- 5
- Temperature resistance: -40 to 120 °C
- Standard: DIN 3016
- Dimensions (H x L x W): 20mm x 50mm x 12mm
- Weight: 0.1 kg
Key Features
- Reinforced tabs provide vibration protection, water intrusion protection, and sound absorption
- Rubber profile made of EPDM for enhanced vibration and water protection
- Resistant to abrasion, weathering, ozone, ageing, light, alcohol, acids, and alkaline solutions
Professional Installation Requirements
- Installation by a qualified technician or professional is recommended to ensure proper securing and safety compliance.
Applications
- Securing hoses and pipes in automotive, industrial, and construction settings
- Vibration dampening and protection in machinery assemblies
- Water and sound protection in hose and pipe installations
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste
- EPDM rubber profile is resistant to environmental degradation, extending product life
Warranty Information
Standard manufacturer warranty applies; please refer to Wurth's warranty policy for details.
Available Now
The Wurth fastening clamp with rubber profile is available for immediate purchase, ideal for industrial, automotive, and construction hose securing applications.
