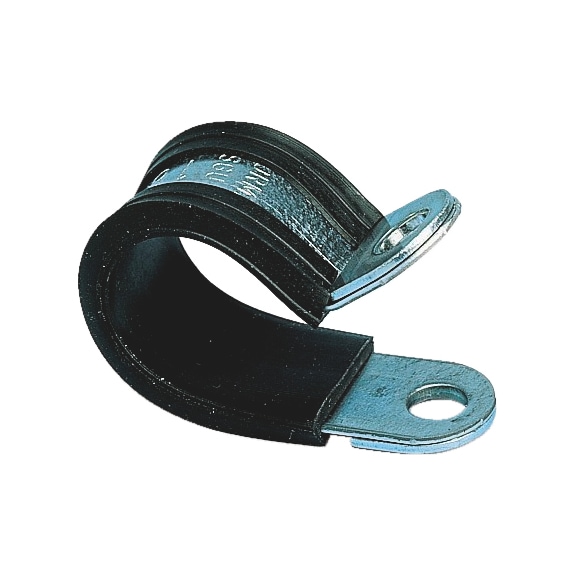

Rubber Profile Hose Clamp | Vibration Dampening | EPDM Material | Black | by Wurth
The Rubber Profile Hose Clamp is designed for securing hoses and pipes in automotive, industrial, and construction settings. With reinforced tabs for vibration protection and a durable EPDM rubber profile, it offers excellent sound absorption and resistance to weathering and chemicals. Ideal for mechanical assemblies, this clamp ensures reliable fastening in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Width (B): 12 mm
- Nominal diameter (D): 25 mm
- Flange hole (d1): M5
- Distance centre of pipe to centre of hole (S): 20.5 mm
- Material: Steel with zinc plated surface
- Material of rubber profile: EPDM
- Colour of rubber profile: Black
- Shore A hardness: 70 +/- 5
- Temperature resistance: -40 to 120 °C
- Standard: DIN 3016
- Dimensions (H x L x W): 25mm x 25mm x 12mm
- Weight: 0.1 kg
Key Features
- Reinforced tabs provide vibration protection, water intrusion protection, and sound absorption
- Rubber profile made of EPDM offers additional vibration protection and sound absorption
- Resistant to abrasion, weathering, ozone, ageing, light, alcohol, acids, and alkaline solutions
Professional Installation Requirements
- Installation by a qualified technician or tradesperson is recommended to ensure proper fastening and safety.
Applications
- Securing hoses and pipes in automotive, industrial, and construction settings
- Vibration dampening and protection in mechanical assemblies
- Use in environments requiring resistance to weathering and chemicals
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste
- EPDM rubber profile is resistant to environmental degradation, extending product life
Warranty Information
Standard manufacturer warranty applies; please refer to Wurth's warranty policy for details.
Available Now
The Wurth Fastening Clamp with Rubber Profile 5422512 is available now for immediate purchase. Ideal for industrial, automotive, and construction applications requiring secure hose and pipe fastening.
