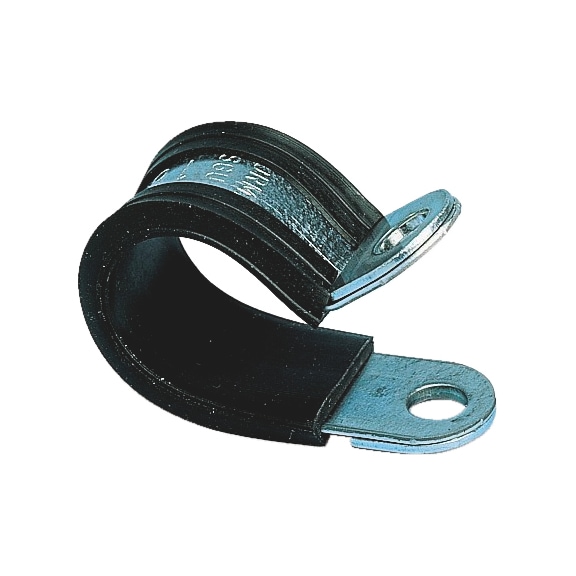

Rubber Profile Hose Clamp | Vibration Protection | EPDM Material | Zinc Plated Steel | by Wurth
The Rubber Profile Hose Clamp is designed for securing hoses and pipes in automotive, industrial, and construction settings. With reinforced tabs for vibration dampening and a durable EPDM rubber profile, it offers excellent water and sound protection. This clamp is built to withstand temperatures from -40 to 120 °C, making it ideal for various mechanical assemblies.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Width (B): 15 mm
- Nominal diameter (D): 10 mm
- Flange hole (d1): M6
- Distance centre of pipe to centre of hole (S): 16.2 mm
- Material: Steel
- Surface: Zinc plated
- Material of rubber profile: EPDM
- Colour of rubber profile: Black
- Shore A hardness: 70
- Temperature resistance: -40 to 120 °C
- Standard: DIN 3016
- Dimensions (H x L x W): 20mm x 50mm x 15mm
- Weight: 0.1 kg
Key Features
- Reinforced tabs provide vibration protection, water intrusion protection, and sound absorption
- Rubber profile made of EPDM for enhanced vibration and water protection
- Resistant to abrasion, weathering, ozone, ageing, light, alcohol, acids, and alkaline solutions
- Steel construction with zinc plated surface for corrosion resistance
- Shore A hardness of 70 for rubber profile
- Temperature resistance from -40 to 120 °C
Professional Installation Requirements
- Installation by a qualified technician or professional is recommended to ensure proper securing and safety.
Applications
- Securing hoses and pipes in automotive, industrial, and construction settings
- Vibration dampening and protection in mechanical assemblies
- Water and sound protection in hose connections
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste
- Corrosion-resistant zinc plating extends product life
- EPDM rubber profile is resistant to environmental degradation
Warranty Information
Standard manufacturer warranty against defects in materials and workmanship.
Available Now
The Wurth Fastening Clamp with Rubber Profile 5421015 is available now for immediate purchase. Ideal for industrial, automotive, and construction hose securing applications.
