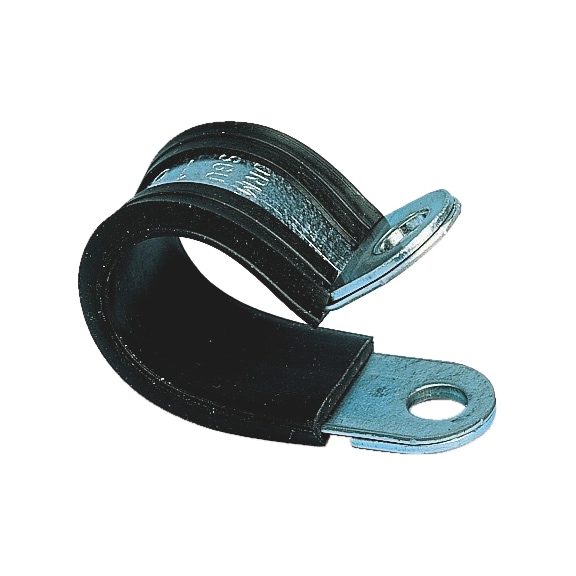

Rubber Profile Hose Clamp | Vibration Resistant | EPDM Rubber | Zinc Plated Steel | by Wurth
The Rubber Profile Hose Clamp is designed for securing hoses and pipes in automotive and industrial applications. Featuring a vibration-resistant design with reinforced tabs and an EPDM rubber profile, it provides excellent sound dampening and protection against water intrusion. With a temperature resistance of -40 to 120 °C, this clamp is built for durability and reliability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Width (B): 12 mm
- Nominal diameter (D): 10 mm
- Flange hole (d1): M5
- Distance centre of pipe to centre of hole (S): 13 mm
- Material: Steel
- Surface: Zinc plated
- Material of rubber profile: EPDM
- Colour of rubber profile: Black
- Shore A hardness: 70
- Temperature resistance: -40 to 120 °C
- Standard: DIN 3016
- Dimensions (H x L x W): 20mm x 50mm x 12mm
- Weight: 0.1 kg
Key Features
- Reinforced tabs provide vibration protection, water intrusion protection, and sound absorption
- Rubber profile made of EPDM for enhanced vibration and sound dampening
- Resistant to abrasion, weathering, ozone, ageing, light, alcohol, acids, and alkaline solutions
- Zinc plated steel construction for durability and corrosion resistance
- Temperature resistance from -40 to 120 °C
Professional Installation Requirements
- Installation by a qualified technician or professional is recommended to ensure proper securing and vibration protection.
Applications
- Securing hoses and pipes in automotive, industrial, and construction applications
- Vibration and sound dampening in mechanical assemblies
- Protection against water intrusion in hose connections
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste
- EPDM rubber profile is resistant to environmental degradation, extending product life
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
The Wurth Fastening Clamp with Rubber Profile 5421012 is available for immediate purchase, ideal for industrial and automotive hose securing applications.
