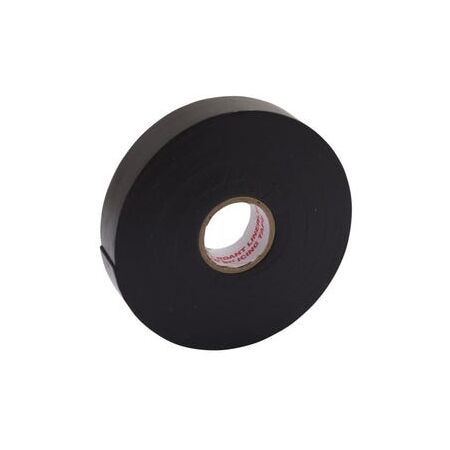

Rubber Splicing Tape 19x9M | Up to 69kV | Linerless & Flame Retardant by Cabac
POWERJOINT RT241 Rubber Splicing Tape by Cabac is a linerless, self-bonding high voltage tape designed for insulating and jacketing splices through 69kV with excellent thermal and flame retardant properties.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: POWERJOINT RT241 Rubber Splicing 19x9M
Brand: Cabac
SKU: T030018RT19
Alternatively Known As: Rubber Splicing Tape, High Voltage Insulating Tape, Self-Bonding Electrical Tape, Cable Splice Tape, Flame Retardant Splicing Tape
Technical Specifications
- Material: Ethylene Propylene Rubber (EPR)
- Thickness: 0.76mm (30 mil)
- Voltage Rating: Up to 69kV
- Temperature Rating: Overload temperatures up to 130°C
- Linerless self-bonding tape for quicker application
- High thermal conductivity
- Excellent ozone and chemical resistance
- Dimensions (H x L x W): 0.76mm x 9000mm x 19mm
- Weight: 0.1 kg
Key Features
- Linerless, self-bonding primary insulating tape rated up to 69kV
- High thermal conductivity
- Flame retardant
- Excellent physical and electrical properties
- Designed to insulate splices and terminate cables with overload temperatures up to 130°C
- Wide temperature range
- Weatherproof
Professional Installation Requirements
- Installation should be performed by a qualified electrician or cable technician to ensure proper insulation and safety compliance.
Applications
- Primary insulation for splicing all types of solid dielectric insulated cables up to 69kV
- Main insulation for 35kV solid medium cable stress cone applications
- Intermediate joint and terminal protection
- Moisture seal for electrical connections
- Bus insulation
- Cable end sealing
- Wire insulation for electric motors
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable and weatherproof design reduces need for frequent replacements
- Flame retardant properties enhance safety and reduce fire risk
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty terms for details.
Available Now
POWERJOINT RT241 Rubber Splicing Tape 19x9M by Cabac is available for immediate purchase. Ideal for electrical cable splicing and insulation in industrial and commercial applications.
