1-25min Run-On Exhaust Timer | Mechanical Design | IP20 Rated | Hardwired Installation | by atom

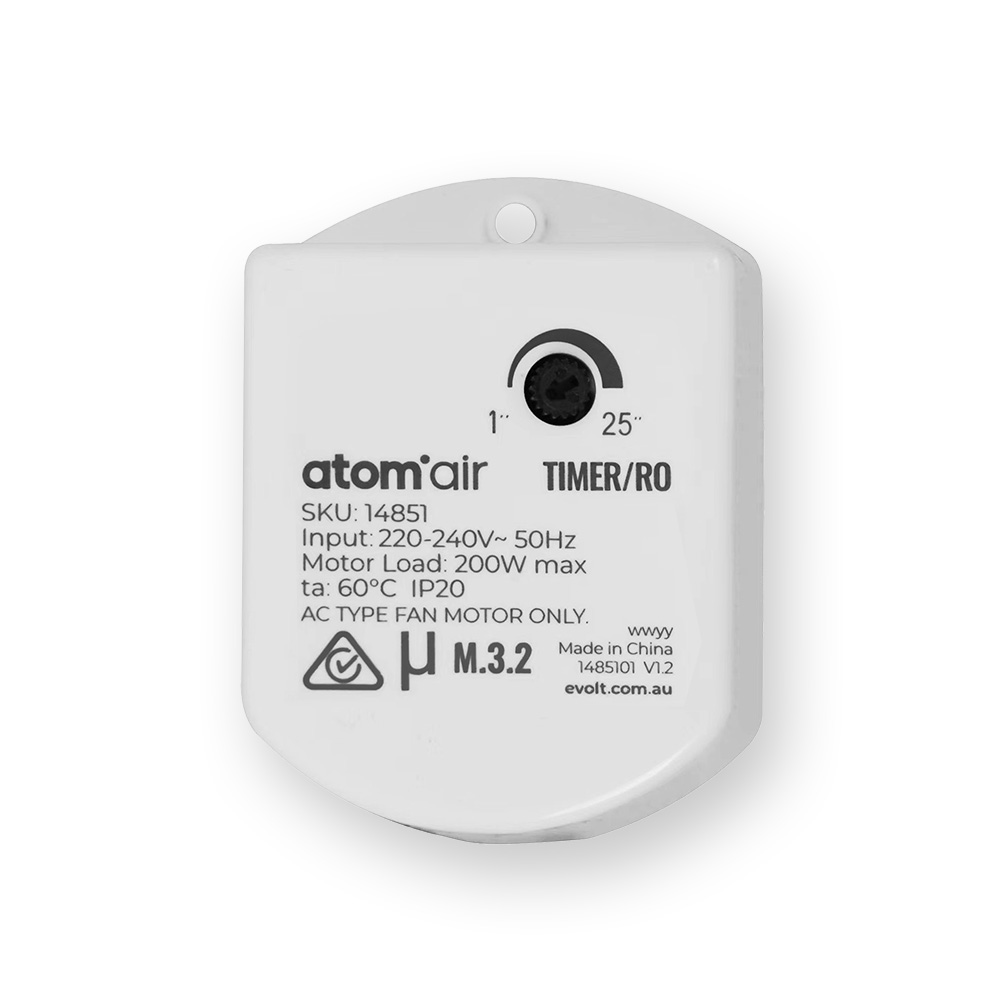

The 1-25min Run-On Exhaust Timer is a mechanical timer designed for efficient control of exhaust fans in residential, commercial, and industrial settings. With an adjustable timer range from 1 to 25 minutes and an IP20 rating, it ensures reliable performance in various environments. Ideal for bathrooms, kitchens, and ventilation systems, this timer helps improve indoor air quality while reducing energy consumption.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Exhaust Fan Timer, Run-On Timer Switch, Mechanical Exhaust Timer
Technical Specifications
- Input Voltage: 230V
- Input Frequency: 50 Hz
- Maximum Wattage: 200 W
- Working Temperature Range: -10 to 60 °C
- Wiring Type: Flying leads (5 wire)
- IP Rating: IP20
- Dimensions (H x L x W): 70mm x 40mm x 70mm
- Weight: 0.3 kg
Key Features
- Mechanical run-on timer adjustable from 1 to 25 minutes
- Hardwired with flying leads (5 wire) for easy installation
- White fitting colour suitable for most interiors
- IP20 rated for indoor use
- Operates within a temperature range of -10 to 60 °C
- Maximum wattage of 200 W
Professional Installation Requirements
- Professional installation by a licensed electrician is recommended to ensure compliance with electrical safety standards.
Applications
- Residential bathrooms and kitchens
- Commercial washrooms and ventilation systems
- Industrial exhaust fan control
Standards & Compliance
- Complies with AS/NZS 60669.1 – Switches for household and similar fixed electrical installations
- Complies with AS 60669.2.1 – Particular requirements for timers
- Meets CISPR 15 and CISPR 14.1 for electromagnetic compatibility
- Meets IEC 61000 series for electromagnetic compatibility and immunity
Environmental Benefits
- Helps reduce energy consumption by automatically turning off exhaust fans after a set time
- Supports efficient ventilation management to improve indoor air quality
Warranty Information
1 year return to base warranty for domestic use.
Available Now
The Atom 1-25min Run-On Exhaust Timer is available now for immediate purchase. Ideal for controlling exhaust fans in residential, commercial, and industrial ventilation systems.
