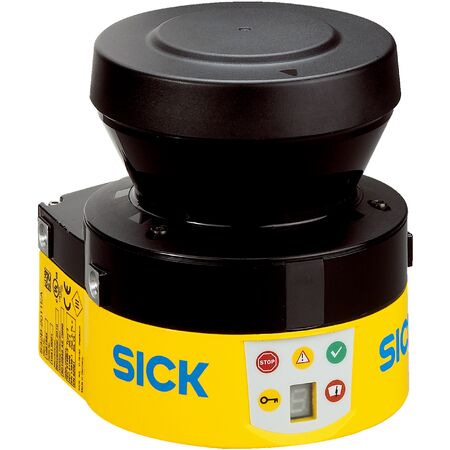

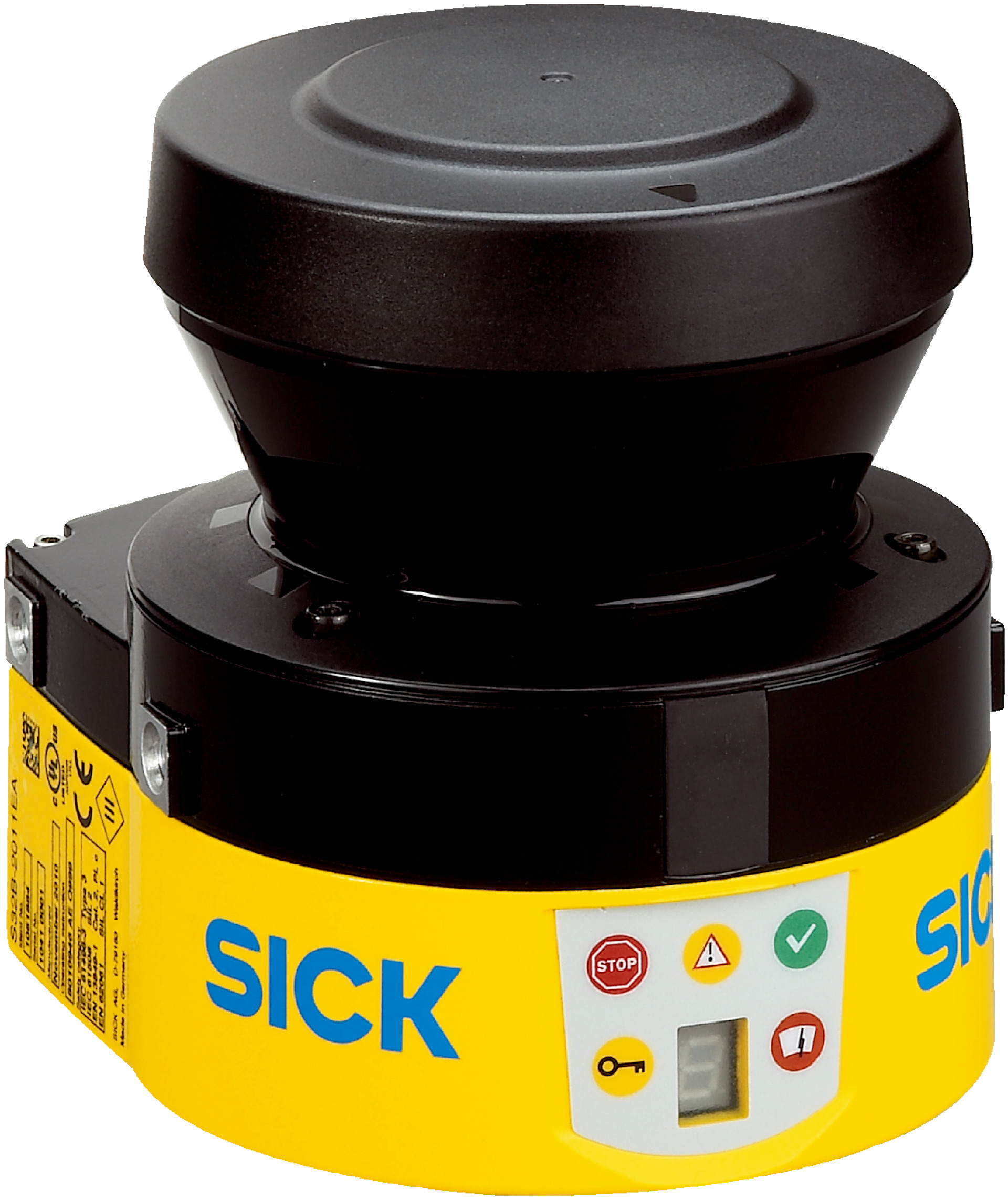

S300 Mini Safety Laser Scanner S32B-2011BA | 2m Protective Range | 270° Scanning Angle | SIL 2 Safety Level | by SICK
The S300 Mini Safety Laser Scanner S32B-2011BA is designed for indoor safety monitoring and industrial automation. With a protective field range of 2 m and a warning field range of 8 m, it ensures reliable safety measures. Featuring a 270° scanning angle and SIL 2 safety integrity level, this robust scanner is perfect for hazardous area perimeter guarding and machinery safety applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: S300 Mini Safety Laser Scanner S32B-2011BA | 2m Protective Range | 270° Scanning Angle | SIL 2 Safety Level | by SICK
Brand: SICK
SKU: 1050932
Alternatively Known As: S300 Mini Safety Laser Scanner, SICK Safety Scanner S32B, Industrial Safety Laser Scanner
Technical Specifications
- Protective field range: 2 m
- Warning field range: 8 m at 15% reflectivity
- Distance measuring range: 30 m
- Scanning angle: 270°
- Resolution configurable: 30 mm, 40 mm, 50 mm, 70 mm
- Angular resolution: 0.5°
- Response time: 80 ms
- Safety type: Type 3 (IEC 61496)
- Safety integrity level: SIL 2 (IEC 61508)
- Category: Category 3 (EN ISO 13849)
- Performance level: PL d (EN ISO 13849)
- Power supply: 24 V DC (16.8 V DC to 30 V DC)
- Power consumption: 0.2 A to 1.35 A
- Protection class: III (EN 50178, EN 60950)
- Enclosure rating: IP65 (EN 60529)
- Operating temperature: -10 °C to +50 °C
- Storage temperature: -25 °C to +50 °C
- Housing material: Aluminum die cast
- Optics cover material: Polycarbonate with scratch-resistant coating
- Connection: Cable 250 mm with male M12 8-pin connector
- Configuration interface: RS-232, 38.4 kBaud
- Dimensions (H x L x W): 116mm x 105mm x 102mm
- Weight: 0.8 kg
Key Features
- Protective field range of 2 m and warning field range of 8 m at 15% reflectivity
- Triple field sets with 3 fields and 1 monitoring case
- 270° scanning angle with configurable resolution options (30 mm to 70 mm)
- Safety integrity level SIL 2 and Category 3 safety classification
- Restart interlock, external device monitoring, and multiple sampling functions
- PC configuration via CDS software with RS-232 interface
- Robust aluminum die cast housing with IP65 rating and scratch-resistant polycarbonate optics cover
Professional Installation Requirements
- Installation and configuration should be performed by qualified professionals familiar with safety laser scanners and relevant safety standards.
Applications
- Indoor safety monitoring and protection
- Industrial automation and machinery safety
- Hazardous area perimeter guarding
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient operation with low power consumption
- Durable design reduces waste and replacement frequency
Warranty Information
Warranty details available upon request from manufacturer.
Available Now
The SICK S32B-2011BA S300 Mini Standard Safety Laser Scanner is available for immediate purchase, ideal for indoor industrial safety and automation applications.
