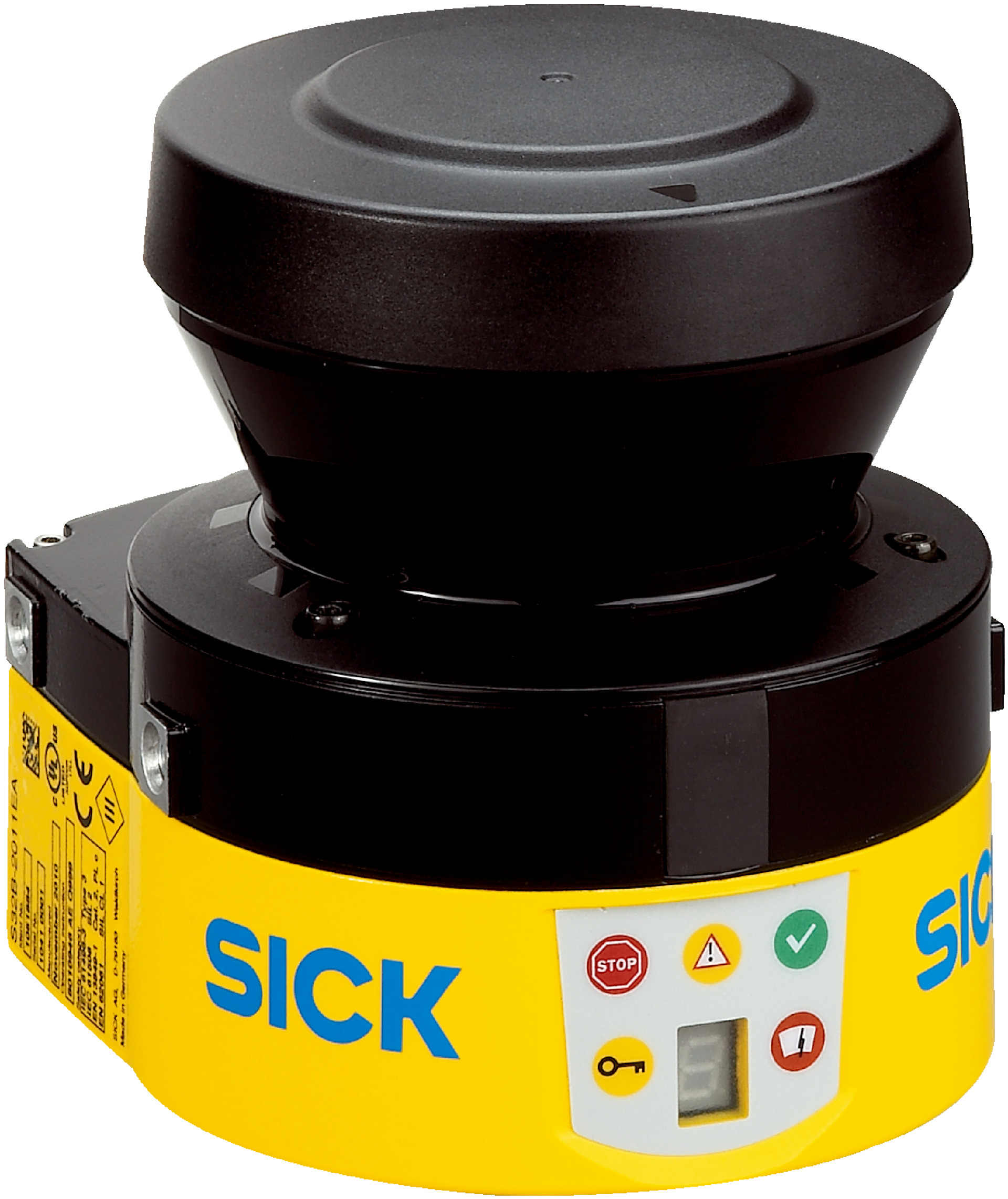

S300 Mini Standard Safety Laser Scanner | 1m Protective Range | 270° Scanning Angle | SIL 2 Safety Level | by SICK
The S300 Mini Standard Safety Laser Scanner is designed for indoor safety monitoring and industrial automation. With a protective field range of 1 m and a warning field range of 8 m, it ensures reliable area protection. Featuring a 270° scanning angle and configurable resolution options, this robust scanner is perfect for manufacturing environments, providing peace of mind with its SIL 2 safety classification.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Protective field range: 1 m
- Warning field range: 8 m at 15% reflectivity
- Distance measuring range: 30 m
- Scanning angle: 270°
- Resolution configurable: 30 mm, 40 mm, 50 mm, 70 mm
- Angular resolution: 0.5°
- Response time: 80 ms
- Safety type: Type 3 (IEC 61496)
- Safety integrity level: SIL 2 (IEC 61508)
- Category: Category 3 (EN ISO 13849)
- Performance level: PL d (EN ISO 13849)
- Power supply: 24 V DC (16.8 V DC to 30 V DC)
- Power consumption: 0.2 A to 1.35 A
- Housing material: Aluminum die cast
- Enclosure rating: IP65
- Operating temperature: -10 °C to +50 °C
- Laser wavelength: 905 nm
- Laser class: 1 (IEC 60825-1)
- Dimensions (H x L x W): 116mm x 105mm x 102mm
- Weight: 0.8 kg
Key Features
- Protective field range of 1 m and warning field range of 8 m at 15% reflectivity
- Triple field sets with 3 fields and 1 monitoring case
- 270° scanning angle with configurable resolution options (30 mm to 70 mm)
- Safety integrity level SIL 2 and Category 3 safety classification
- Restart interlock, external device monitoring, and multiple sampling functions
- PC configuration via CDS software with RS-232 interface
- Robust aluminum die cast housing with IP65 rating
- Pulsed laser diode with 905 nm wavelength and laser class 1 safety
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with safety laser scanners and relevant safety standards to ensure proper setup and compliance.
Applications
- Indoor safety monitoring and protection
- Industrial automation and machinery safety
- Area protection in manufacturing environments
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient operation with low power consumption
- Durable construction reduces waste and replacement frequency
Warranty Information
Warranty details available upon request from manufacturer.
Available Now

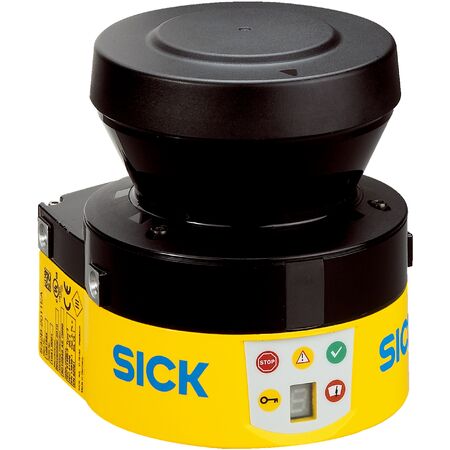

The SICK S32B-0011BA S300 Mini Standard Safety Laser Scanner is available for immediate purchase, ideal for indoor industrial safety and automation applications.
