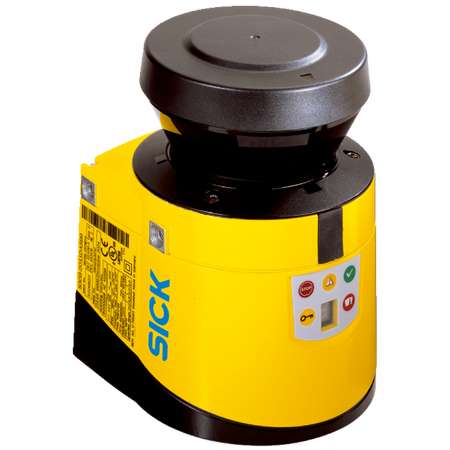

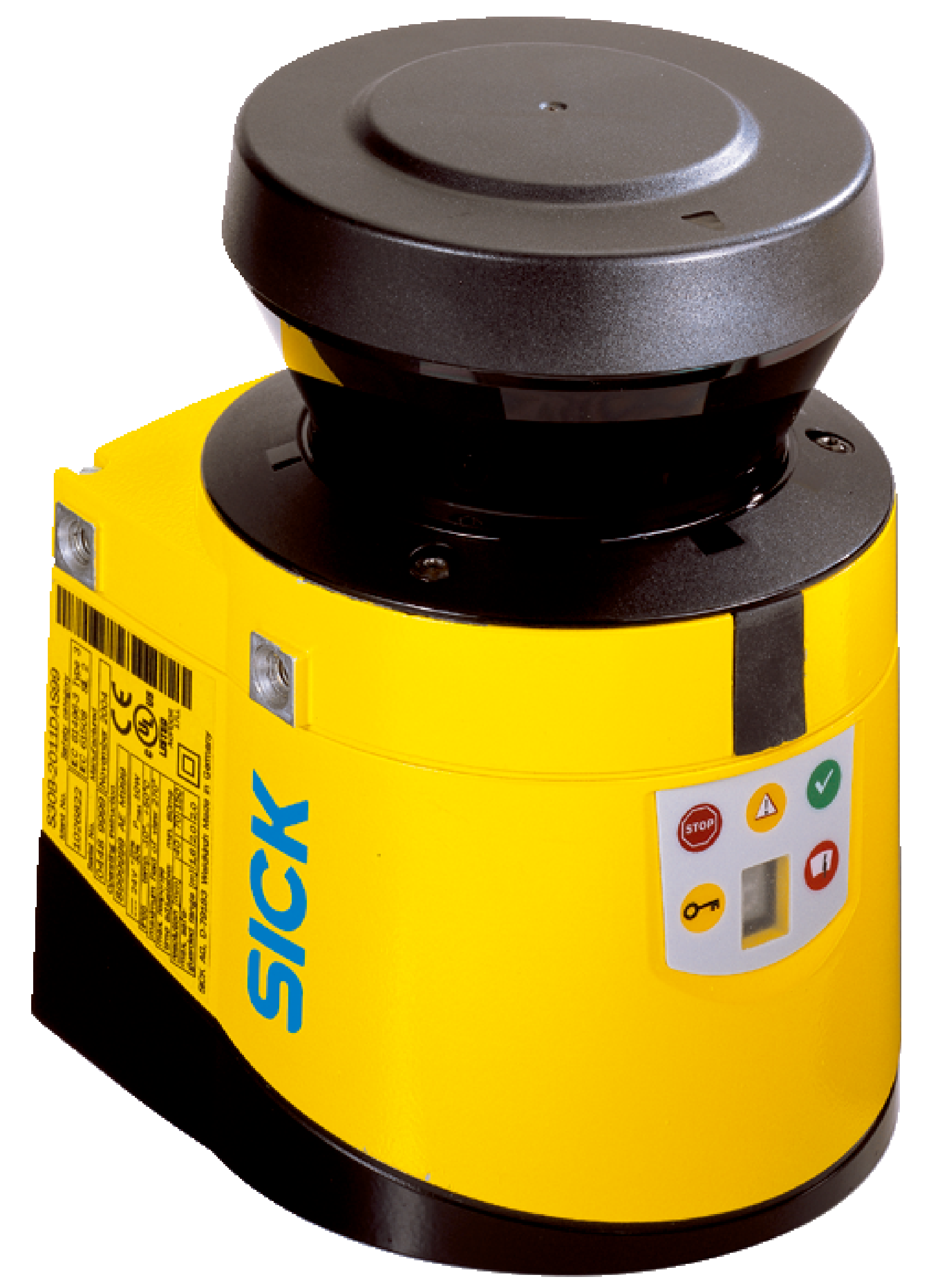

S300 Standard Safety Laser Scanner | 2m Protective Range | 270° Scanning Angle | SIL 2 Safety Level | by SICK
The S300 Standard Safety Laser Scanner is designed for indoor safety monitoring and industrial automation, featuring a protective field range of 2m and a warning field range of 8m. With a 270° scanning angle and configurable resolution options, it ensures precise area protection in manufacturing environments. Built for reliability, it meets SIL 2 safety standards and is housed in a robust aluminum die cast with an IP65 rating, making it ideal for various industrial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: S300 Standard Safety Laser Scanner, SICK S300 Laser Scanner, Industrial Safety Scanner
Technical Specifications
- Protective field range: 2 m
- Warning field range: 8 m at 15% reflectivity
- Distance measuring range: 30 m
- Scanning angle: 270°
- Resolution configurable: 30 mm, 40 mm, 50 mm, 70 mm
- Angular resolution: 0.5°
- Response time: 80 ms
- Safety type: Type 3 (IEC 61496)
- Safety integrity level: SIL 2 (IEC 61508)
- Category: Category 3 (EN ISO 13849)
- Performance level: PL d (EN ISO 13849)
- Power supply: 24 V DC (16.8 V DC to 30 V DC)
- Power consumption: 0.33 A to 1.7 A
- Outputs: 2 OSSD pairs at 250 mA, 3 diagnostic outputs at 100 mA
- Protection class: II (EN 50178, EN 60950)
- Enclosure rating: IP65
- Operating temperature: -10°C to +50°C
- Housing material: Aluminum die cast
- Optics cover: Polycarbonate with scratch-resistant coating
- Laser wavelength: 905 nm
- Laser class: 1 (IEC 60825-1)
- Dimensions (H x L x W): 152mm x 106mm x 102mm
- Weight: 1.2 kg
Key Features
- Protective field range of 2 m and warning field range of 8 m at 15% reflectivity
- Distance measuring range up to 30 m with triple field sets
- 270° scanning angle with configurable resolution options (30 mm to 70 mm)
- Safety integrity level SIL 2 and Category 3 safety classification
- Integrated restart interlock and external device monitoring (EDM)
- Multiple sampling and contour referencing capabilities
- Configuration via PC with CDS software and RS-232/RS-422 interfaces
- Robust aluminum die cast housing with IP65 protection rating
- Operating temperature range from -10°C to +50°C
- Pulsed laser diode with 905 nm wavelength and laser class 1 safety
Professional Installation Requirements
- Installation and configuration should be performed by qualified professionals familiar with safety laser scanners and relevant safety standards.
Applications
- Indoor safety monitoring and protection
- Industrial automation and machinery safeguarding
- Area protection in manufacturing environments
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient operation with low power consumption
- Durable design reduces waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK S30B-2011BA S300 Standard Safety Laser Scanner is available for immediate purchase, ideal for indoor industrial safety and automation applications.
