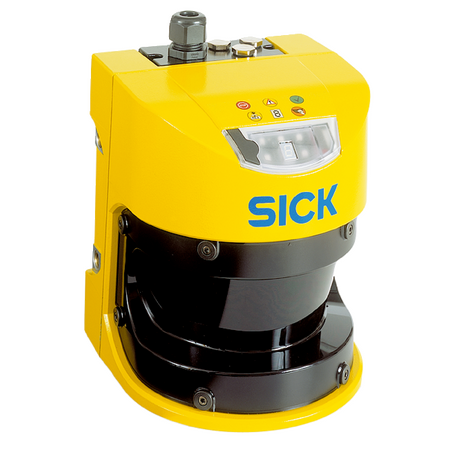

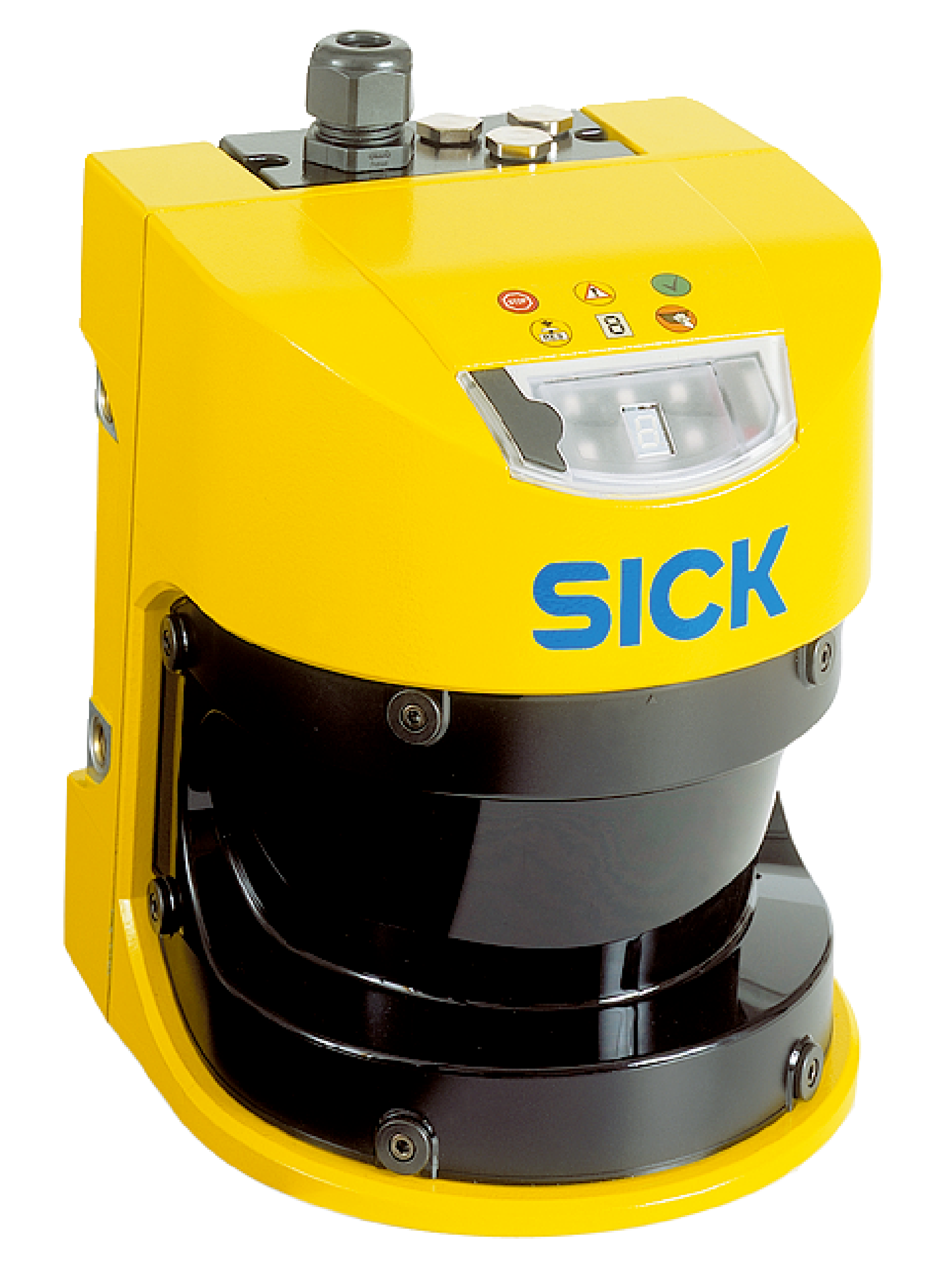

S30A Safety Sensor | 7m Protective Field Range | 49m Warning Field | SIL 2 Safety Level | by SICK
The S30A Safety Sensor is designed for indoor safety monitoring, featuring a protective field range of 7 meters and a warning field range of up to 49 meters. Ideal for industrial automation safety, it supports up to 4 simultaneously monitored protective fields with a scanning angle of 190°. Built with robust aluminum die cast housing and an IP65 rating, this sensor ensures reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: S30A Safety Sensor, SICK Laser Safety Sensor, Indoor Protective Field Sensor
Technical Specifications
- Model: Sensor without system plug
- Protective field range: 7 m
- Warning field range: 49 m (20 m at 20% reflectivity)
- Distance measuring range: 49 m
- Number of simultaneously monitored protective fields: ≤ 4
- Type of field set: Triple and dual field sets
- Number of fields: 4
- Scanning angle: 190°
- Resolution: Configurable between 30 mm and 150 mm
- Angular resolution: 0.25° to 0.5° depending on range
- Response time: 60 ms
- Safety type: Type 3 (IEC 61496)
- Safety integrity level: SIL 2 (IEC 61508)
- Category: Category 3 (EN ISO 13849)
- Performance level: PL d (EN ISO 13849)
- PFHD: 8.0 x 10^-8
- Mission time: 20 years
- Supply voltage: 24 V DC (16.8 V DC to 28.8 V DC)
- Power consumption: 0.8 A to 2.3 A
- Outputs: 2 x 500 mA OSSD, 3 x 100 mA diagnostic outputs
- Housing material: Aluminum die cast
- Front screen material: Polycarbonate with scratch-resistant coating
- Enclosure rating: IP65
- Operating temperature: -10°C to +50°C
- Laser wavelength: 905 nm
- Laser class: 1
- Dimensions (H x L x W): 185mm x 160mm x 155mm
- Weight: 3.3 kg
Key Features
- Protective field range of 7 m and warning field range up to 49 m
- Supports up to 4 simultaneously monitored protective fields
- Scanning angle of 190° with configurable resolution options
- Safety integrity level SIL 2 and Category 3 safety classification
- Integrated configuration memory and multiple sampling capabilities
- Outputs include 2 OSSD switching devices and 3 diagnostic outputs
- Robust aluminum die cast housing with IP65 rating
- Operating temperature range from -10°C to +50°C
- Pulsed laser diode with 905 nm wavelength and laser class 1
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with safety sensor systems to ensure compliance with safety standards and optimal performance.
Applications
- Indoor safety monitoring
- Industrial automation safety
- Protective field monitoring in manufacturing environments
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- Energy-efficient operation with low power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms and conditions.
Available Now
The SICK S30A-7011BA safety sensor is available for immediate purchase, ideal for indoor industrial safety and automation applications.
