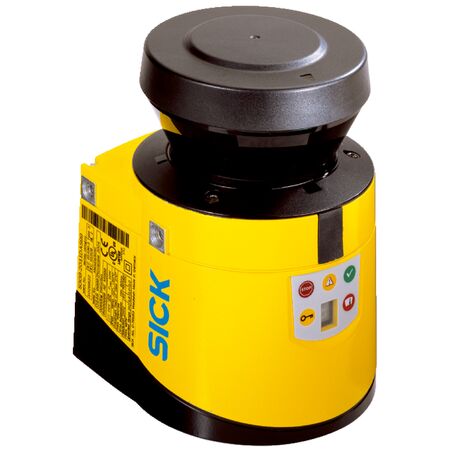

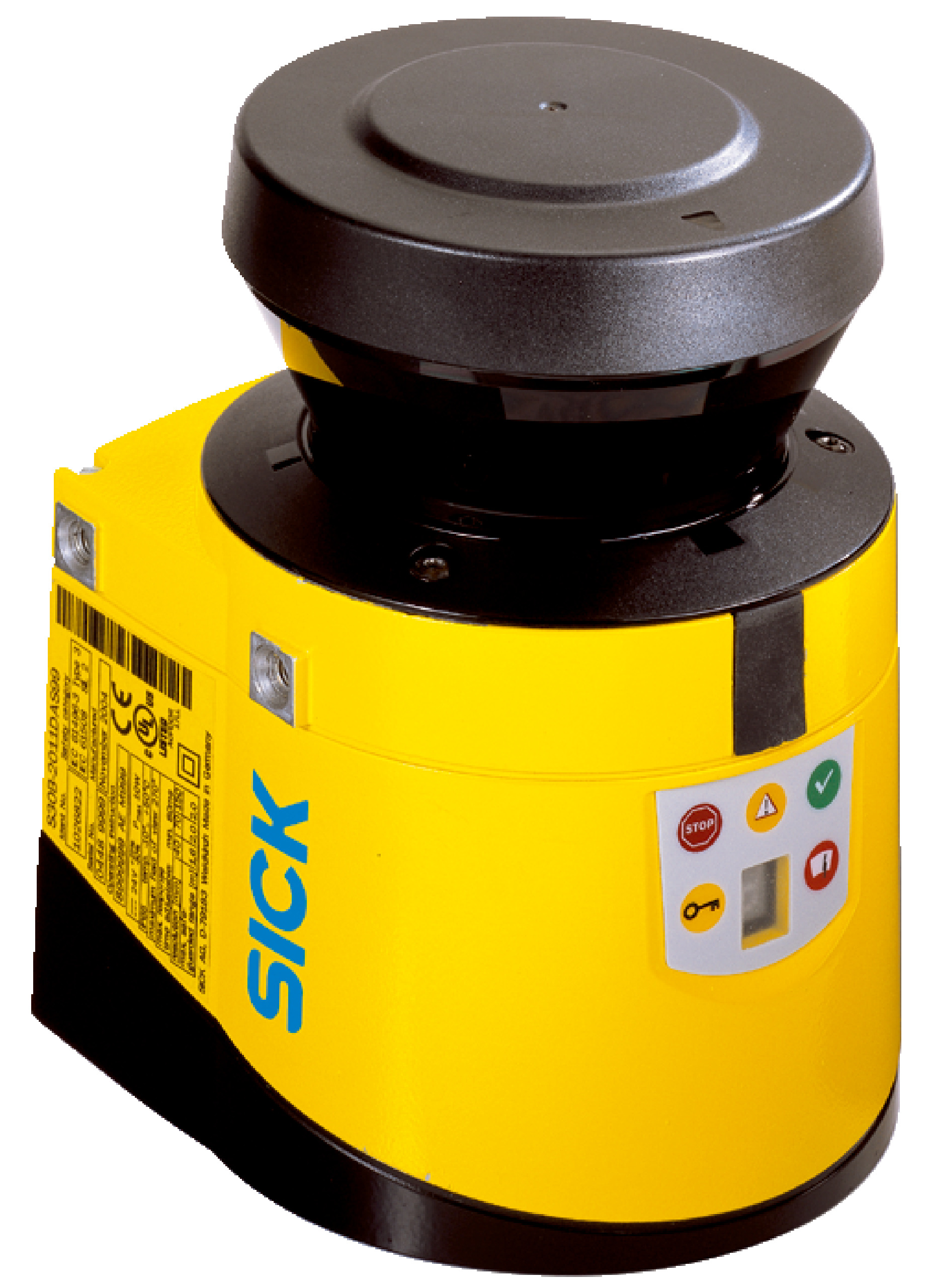

S30B-2011DA Safety Sensor | 2m Protective Range | 30m Distance Measuring | 270° Scanning Angle | by SICK
The S30B-2011DA Safety Sensor is designed for indoor safety monitoring and industrial automation, featuring a protective field range of 2m and a warning field range of 8m. With a distance measuring capability of up to 30m and a 270° scanning angle, this sensor ensures comprehensive coverage and safety. Built for professionals, it offers SIL 2 safety integrity and robust aluminum housing with IP65 protection, making it ideal for machine safeguarding and access control applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: S30B-2011DA Safety Sensor | 2m Protective Range | 30m Distance Measuring | 270° Scanning Angle | by SICK
Brand: SICK
SKU: 1026822
Alternatively Known As: SICK S30B Safety Sensor, S300 Professional Safety Sensor, SICK Laser Safety Sensor, Industrial Safety Sensor S30B
Technical Specifications
- Product version: S300 Professional
- Model: Sensor without system plug
- Protective field range: 2 m
- Warning field range: 8 m at 15% reflectivity
- Distance measuring range: 30 m
- Type of field set: Triple field sets
- Number of field sets: 8
- Number of fields: 24
- Number of monitoring cases: 32
- Scanning angle: 270°
- Resolution (configurable): 30 mm, 40 mm, 50 mm, 70 mm
- Angular resolution: 0.5°
- Response time: 80 ms
- Protective field supplement: 100 mm
- Number of multiple samplings: 2 to 16, configurable
- Delay of automatic reset: 2 s to 60 s, configurable
- Safety type: Type 3 (IEC 61496)
- Safety integrity level: SIL 2 (IEC 61508)
- Category: Category 3 (EN ISO 13849)
- Performance level: PL d (EN ISO 13849)
- PFHD: 8.0 x 10^-8
- Mission time: 20 years (EN ISO 13849)
- Safe state on fault: At least one OSSD is OFF
- Restart interlock, external device monitoring, multiple sampling supported
- Measured data output via RS-422
- Connection type: System plug with or without connecting cable
- Universal I/Os: 5
- Inputs: EDM, reset/restart, static and dynamic control inputs, standby
- Outputs: 1 OSSD pair, 3 application diagnostic outputs
- Configuration via PC with CDS software
- Configuration and diagnostics interface: RS-232, transmission rate ≤ 500 kBaud
- Data interface: RS-422, transmission rate ≤ 500 kBaud
- Safe SICK device communication via EFI, cable length ≤ 50 m
- Protection class: II (EN 50178, EN 60950)
- Supply voltage: 24 V DC (16.8 V DC to 30 V DC)
- Power consumption: 0.33 A to 1.7 A
- Housing material: Aluminum die cast
- Optics cover material: Polycarbonate with scratch-resistant coating
- Enclosure rating: IP65
- Operating temperature: -10 °C to +50 °C
- Storage temperature: -25 °C to +50 °C
- Vibration and shock resistance compliant with IEC standards
- Laser class: 1 (IEC 60825-1)
- Dimensions (H x L x W): 152mm x 106mm x 102mm
- Weight: 1.2 kg
Key Features
- Protective field range of 2 m and warning field range of 8 m at 15% reflectivity
- Distance measuring range up to 30 m with triple field sets
- 270° scanning angle with 24 fields and 32 monitoring cases
- Configurable resolution options: 30 mm, 40 mm, 50 mm, 70 mm
- Safety integrity level SIL 2 and Category 3 safety classification
- Multiple sampling and monitoring case switching capabilities
- Integrated configuration memory and safe SICK device communication via EFI
- Robust aluminum die cast housing with IP65 protection rating
- Operating temperature range from -10 °C to +50 °C
- Pulsed laser diode with 905 nm wavelength and laser class 1 safety
Professional Installation Requirements
- Installation and configuration should be performed by qualified professionals familiar with safety sensor systems and electrical standards to ensure compliance and optimal performance.
Applications
- Indoor safety monitoring
- Industrial automation
- Machine safeguarding
- Access control and perimeter protection
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient operation with low power consumption
- Durable design reduces waste and replacement frequency
Warranty Information
Warranty details available upon request from manufacturer or distributor.
Available Now
The SICK S30B-2011DA S300 Professional Indoor Safety Sensor is available for immediate purchase, ideal for industrial safety and automation applications.
