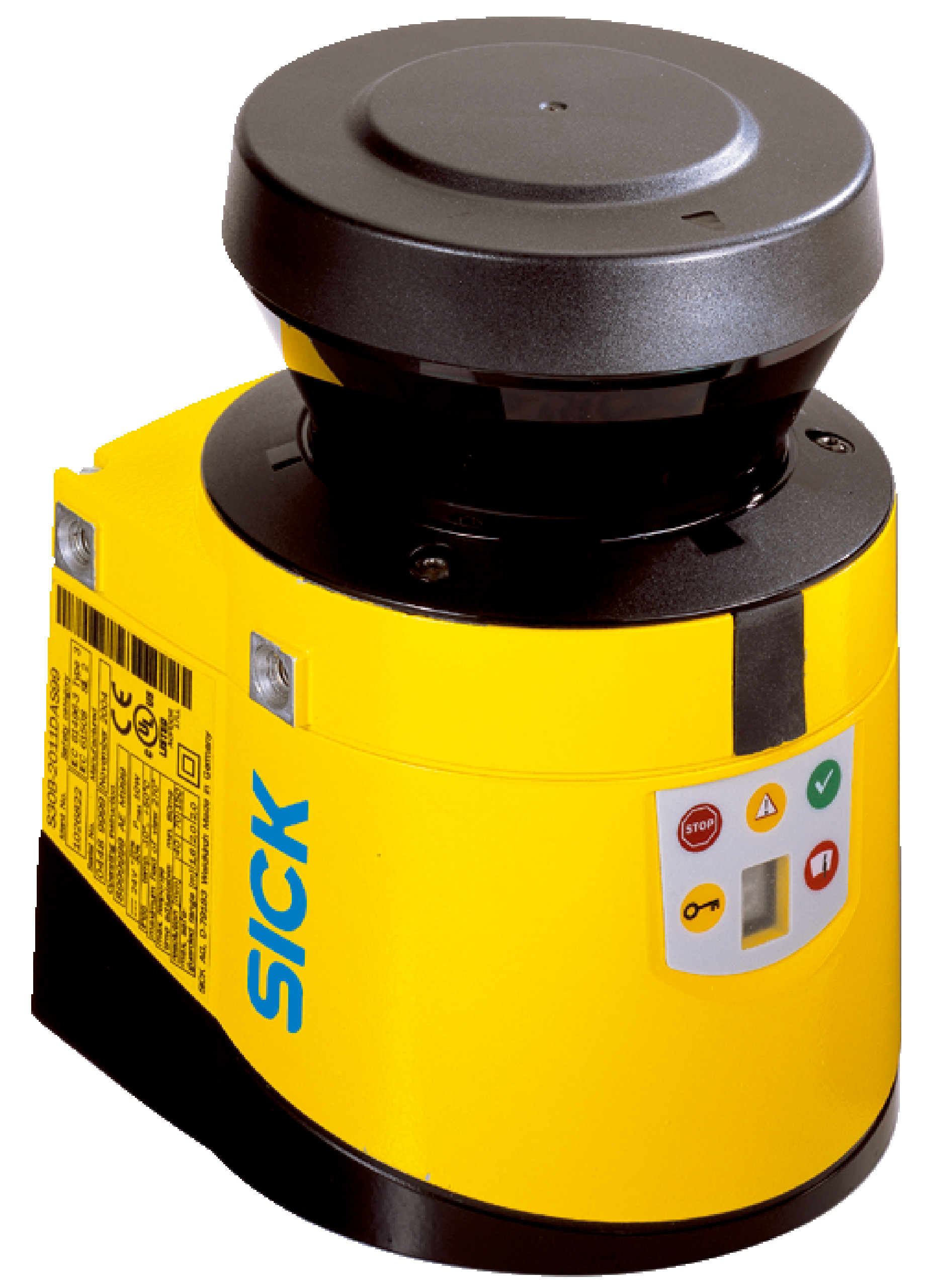

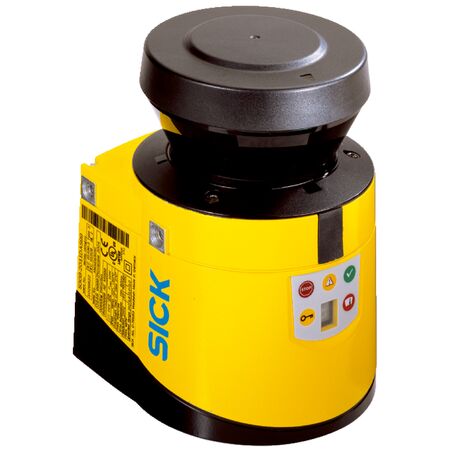

S30B Safety Sensor | 2m Protective Range | 30m Distance Measurement | IP65 Rated | by SICK
The S30B Safety Sensor is designed for indoor safety monitoring, featuring a protective field range of 2m and a warning field range of 8m. With a distance measuring capability of up to 30m and a 270° scanning angle, this sensor is perfect for industrial automation and machine safety applications. Built with an IP65 rated enclosure, it ensures durability and reliability in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: S30B Safety Sensor | 2m Protective Range | 30m Distance Measurement | IP65 Rated | by SICK
Brand: SICK
SKU: 1026820
Alternatively Known As: SICK S30B Safety Sensor, S300 Standard Safety Sensor, SICK Indoor Laser Sensor, S30B-2011BA Laser Scanner
Technical Specifications
- Product version: S300 Standard
- Model: Sensor without system plug
- Protective field range: 2 m
- Warning field range: 8 m at 15% reflectivity
- Distance measuring range: 30 m
- Type of field set: Triple field sets
- Number of field sets: 1
- Number of fields: 3
- Number of monitoring cases: 1
- Scanning angle: 270°
- Resolution (configurable): 30 mm, 40 mm, 50 mm, 70 mm
- Angular resolution: 0.5°
- Response time: 80 ms
- Protective field supplement: 100 mm
- Multiple samplings: 2 to 16, configurable
- Delay of automatic reset: 2 s to 60 s, configurable
- Safety type: Type 3 (IEC 61496)
- Safety integrity level: SIL 2 (IEC 61508)
- Category: Category 3 (EN ISO 13849)
- Performance level: PL d (EN ISO 13849)
- PFHD: 8.0 x 10^-8
- Mission time: 20 years (EN ISO 13849)
- Safe state on fault: At least one OSSD is OFF
- Restart interlock, external device monitoring, multiple sampling supported
- Measured data output via RS-422
- Connection type: System plug with or without connecting cable
- Universal I/Os: 5
- Inputs: EDM, Reset/restart, Standby
- Outputs: 1 OSSD pair, 3 application diagnostic outputs
- Configuration method: PC with CDS software
- Configuration interface: RS-232, 38.4 kBaud
- Data interface: RS-422, ≤ 500 kBaud
- Safe SICK device communication via EFI, cable length ≤ 50 m
- Protection class: II (EN 50178, EN 60950)
- Supply voltage: 24 V DC (16.8 V to 30 V DC)
- Power consumption: 0.33 A to 1.7 A
- Housing material: Aluminum die cast
- Optics cover material: Polycarbonate with scratch-resistant coating
- Enclosure rating: IP65 (EN 60529)
- Operating temperature: -10°C to +50°C
- Storage temperature: -25°C to +50°C
- Vibration and shock resistance compliant with IEC standards
- Light type: Pulsed laser diode
- Wavelength: 905 nm
- Detectable remission factor: 1.8% to >1000%
- Laser class: 1 (21 CFR 1040.10 and IEC 60825-1)
- Dimensions (H x L x W): 152mm x 106mm x 102mm
- Weight: 1.2 kg
Key Features
- Protective field range of 2 m and warning field range of 8 m at 15% reflectivity
- Distance measuring range up to 30 m
- Triple field sets with 3 fields and 1 monitoring case
- 270° scanning angle with configurable resolution options (30 mm to 70 mm)
- Safety integrity level SIL 2 and Category 3 safety classification
- Integrated configuration memory and multiple sampling capabilities
- Outputs include 2 OSSD pairs and 3 application diagnostic outputs
- RS-422 data interface and RS-232 configuration interface
- Housing made of aluminum die cast with polycarbonate optics cover
- IP65 rated enclosure for dust and water protection
- Operating temperature range from -10°C to +50°C
- Pulsed laser diode light source with 905 nm wavelength
- Laser class 1 safety compliant
Professional Installation Requirements
- Installation and configuration should be performed by qualified professionals familiar with safety sensor systems and electrical standards.
Applications
- Indoor safety monitoring
- Industrial automation
- Machine safety and protection
- Obstacle detection and area monitoring
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient operation with low power consumption
- Durable housing materials extend product lifespan and reduce waste
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK S30B-2011BA safety sensor is available for immediate purchase, ideal for indoor industrial safety and automation applications.
