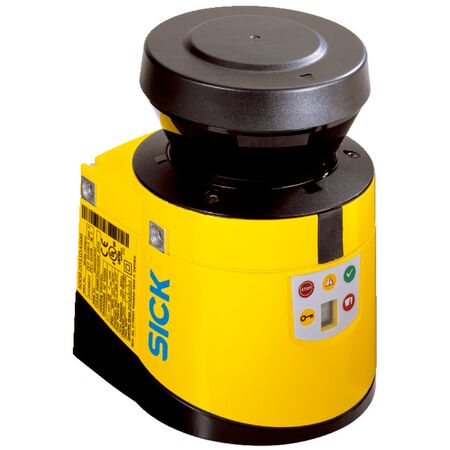

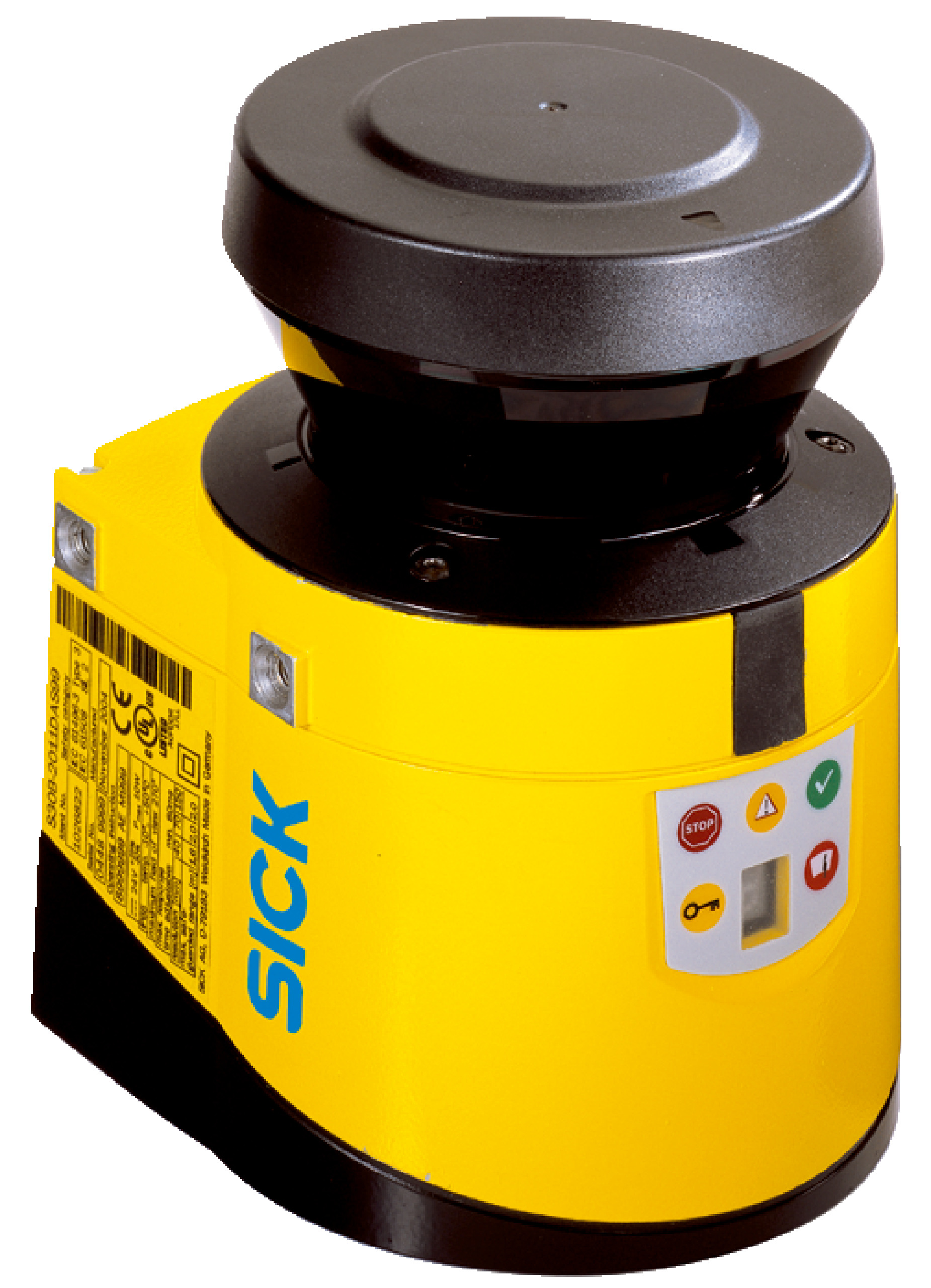

S30B Safety Sensor | 3m Protective Range | 270° Scanning Angle | SIL 2 Safety Level | by SICK
The S30B Safety Sensor is designed for indoor safety monitoring, featuring a protective field range of 3 m and a warning field range of 8 m. With a 270° scanning angle and configurable resolution options, it’s perfect for industrial automation and machine safeguarding. Built with robust aluminum housing and an IP65 rating, this sensor ensures reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: S30B Safety Sensor | 3m Protective Range | 270° Scanning Angle | SIL 2 Safety Level | by SICK
Brand: SICK
SKU: 1056429
Alternatively Known As: SICK S30B Safety Sensor, S300 Professional Safety Sensor, Indoor Safety Laser Scanner
Technical Specifications
- Product version: S300 Professional
- Model: Sensor without system plug
- Protective field range: 3 m
- Warning field range: 8 m at 15% reflectivity
- Distance measuring range: 30 m
- Type of field set: Triple field sets
- Number of field sets: 8
- Number of fields: 24
- Number of monitoring cases: 32
- Scanning angle: 270°
- Resolution (configurable): 30 mm, 40 mm, 50 mm, 70 mm, 150 mm
- Angular resolution: 0.5°
- Response time: 80 ms
- Protective field supplement: 100 mm
- Multiple samplings: 2 to 16, configurable
- Delay of automatic reset: 2 s to 60 s, configurable
- Safety type: Type 3 (IEC 61496)
- Safety integrity level: SIL 2 (IEC 61508)
- Category: Category 3 (EN ISO 13849)
- Performance level: PL d (EN ISO 13849)
- PFHD: 8.0 x 10^-8
- Mission time: 20 years
- Safe state on fault: At least one OSSD OFF
- Restart interlock, external device monitoring, multiple sampling supported
- Measured data output via RS-422
- Supply voltage: 24 V DC (16.8 V to 30 V DC)
- Power consumption: 0.33 A to 1.7 A
- Outputs: 2 x 250 mA OSSD pairs, 3 x 100 mA diagnostic outputs
- Housing material: Aluminum die cast
- Optics cover: Polycarbonate with scratch-resistant coating
- Enclosure rating: IP65
- Operating temperature: -10°C to +50°C
- Storage temperature: -25°C to +50°C
- Laser type: Pulsed laser diode, wavelength 905 nm
- Laser class: 1 (IEC 60825-1)
- Dimensions (H x L x W): 152mm x 106mm x 102mm
- Weight: 1.2 kg
Key Features
- Protective field range of 3 m and warning field range of 8 m at 15% reflectivity
- Distance measuring range up to 30 m with triple field sets
- 270° scanning angle with 8 field sets and 24 fields
- Configurable resolution options: 30 mm, 40 mm, 50 mm, 70 mm, 150 mm
- Safety integrity level SIL 2 and Category 3 safety classification
- Multiple safety functions including restart interlock, external device monitoring, and multiple sampling
- Integrated configuration memory and safe SICK device communication via EFI
- Robust aluminum die cast housing with IP65 rating and scratch-resistant polycarbonate optics cover
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure compliance with safety standards and proper configuration using PC with CDS software.
Applications
- Indoor safety monitoring
- Industrial automation
- Machine safeguarding
- Access control and perimeter protection
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient operation with low power consumption
- Durable construction reduces waste and replacement frequency
- Complies with RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK S30B-3011DA safety sensor is available for immediate purchase, ideal for indoor industrial safety and automation applications.
