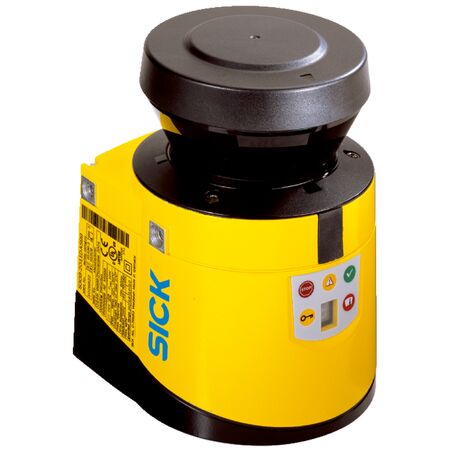

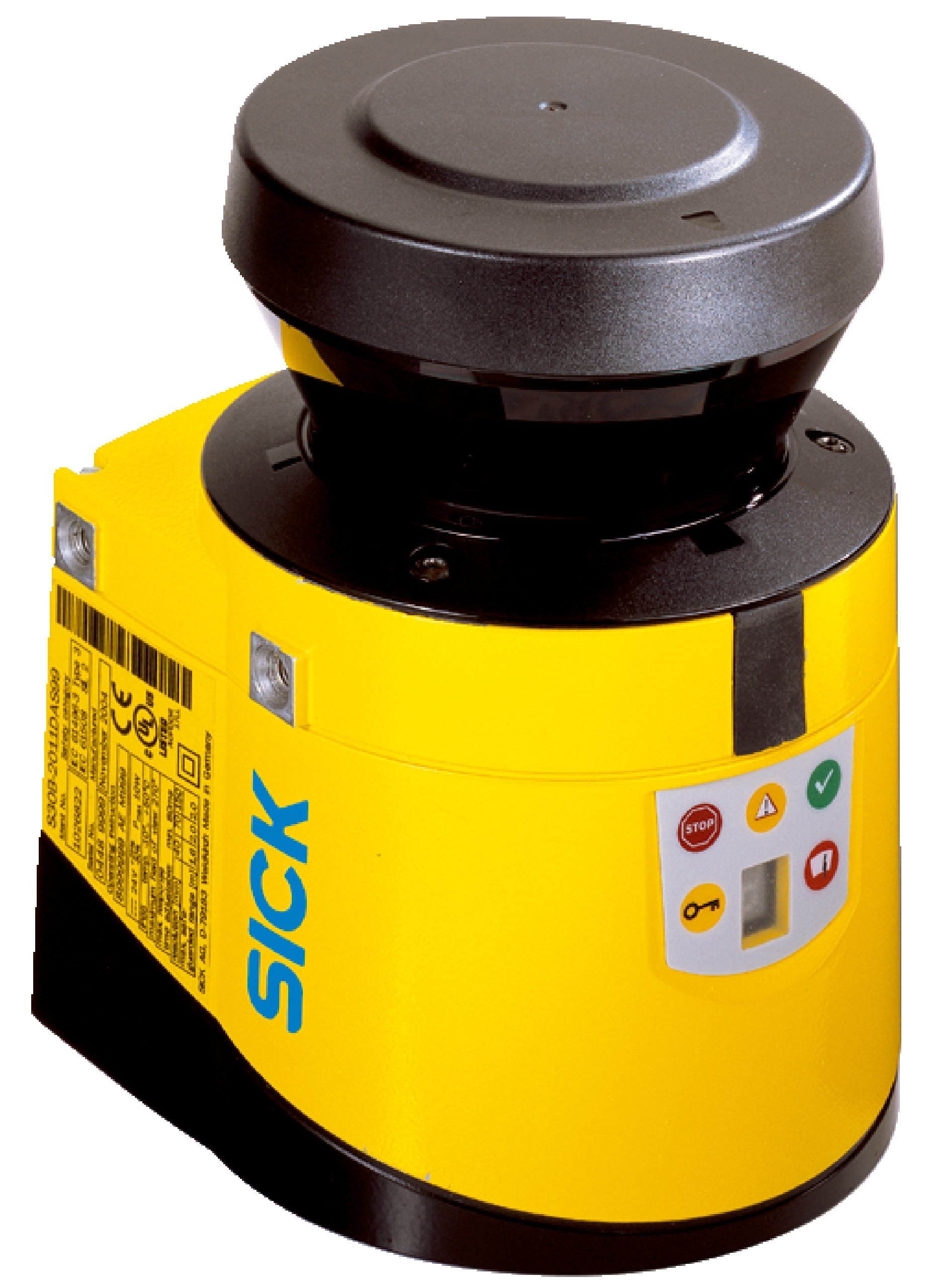

S30B Safety Sensor | 3m Protective Range | 30m Distance Measuring | IP65 Rated | by SICK
The S30B Safety Sensor is designed for indoor safety monitoring, featuring a protective field range of 3 m and a warning field range of 8 m. With a distance measuring capability of up to 30 m and a 270° scanning angle, this sensor is perfect for industrial automation safety and personnel protection. Built with a robust aluminum housing and IP65 rating, it ensures durability and reliability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: S30B Safety Sensor | 3m Protective Range | 30m Distance Measuring | IP65 Rated | by SICK
Brand: SICK
SKU: 1056428
Alternatively Known As: SICK S30B Safety Sensor, S300 Advanced Safety Sensor, Indoor Laser Safety Sensor
Technical Specifications
- Product version: S300 Advanced
- Model: Sensor without system plug
- Protective field range: 3 m
- Warning field range: 8 m at 15% reflectivity
- Distance measuring range: 30 m
- Type of field set: Triple field sets
- Number of field sets: 4
- Number of fields: 12
- Number of monitoring cases: 4
- Scanning angle: 270°
- Resolution (configurable): 30 mm, 40 mm, 50 mm, 70 mm, 150 mm
- Angular resolution: 0.5°
- Response time: 80 ms
- Protective field supplement: 100 mm
- Number of multiple samplings: 2 to 16, configurable
- Delay of automatic reset: 2 s to 60 s, configurable
- Safety type: Type 3 (IEC 61496)
- Safety integrity level: SIL 2 (IEC 61508)
- Category: Category 3 (EN ISO 13849)
- Performance level: PL d (EN ISO 13849)
- PFHD: 8.0 x 10^-8
- Mission time: 20 years
- Safe state on fault: At least one OSSD is OFF
- Connection type: System plug with or without connecting cable
- Universal I/Os: 5
- Inputs: External device monitoring, reset/restart, static control inputs, standby
- Outputs: 2 OSSD pairs, 3 application diagnostic outputs
- Configuration method: PC with CDS software
- Configuration interface: RS-232, 38.4 kBaud
- Data interface: RS-422, ≤ 500 kBaud
- Safe SICK device communication via EFI: ≤ 500 kBaud, cable length ≤ 50 m
- Protection class: III (EN 50178, EN 60950)
- Supply voltage: 24 V DC (16.8 V DC to 30 V DC)
- Power consumption: 0.33 A to 1.7 A
- Housing material: Aluminum die cast
- Housing color: RAL 1021 (yellow)
- Optics cover material: Polycarbonate with scratch-resistant coating
- Enclosure rating: IP65
- Operating temperature: -10 °C to +50 °C
- Storage temperature: -25 °C to +50 °C
- Vibration resistance: IEC 60068-2-6, IEC 60068-2-64, IEC 60721-3-5
- Shock resistance: IEC 60068-2-27, continuous shock 50 m/s², 11 ms
- Type of light: Pulsed laser diode
- Wavelength: 905 nm
- Laser class: 1 (21 CFR 1040.10 and IEC 60825-1)
- Dimensions (H x L x W): 152mm x 106mm x 102mm
- Weight: 1.2 kg
Key Features
- Protective field range of 3 m and warning field range of 8 m at 15% reflectivity
- Distance measuring range up to 30 m
- Triple field sets with 4 field sets and 12 fields total
- 270° scanning angle with configurable resolution options (30 mm to 150 mm)
- Safety integrity level SIL 2 and Category 3 safety classification
- Multiple safety functions including restart interlock, external device monitoring, and static protective field switching
- Integrated configuration memory and measured data output via RS-422
- Robust aluminum die cast housing with IP65 rating and scratch-resistant polycarbonate optics cover
Professional Installation Requirements
- Installation and configuration should be performed by qualified professionals familiar with safety sensor systems and electrical standards.
Applications
- Indoor safety monitoring
- Industrial automation safety
- Machine and personnel protection
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient operation with low power consumption
- Durable design reduces waste and replacement frequency
Warranty Information
Warranty details available upon request from manufacturer or distributor.
Available Now
The SICK S30B-3011CA safety sensor is available for immediate purchase, ideal for indoor industrial safety and automation applications.
