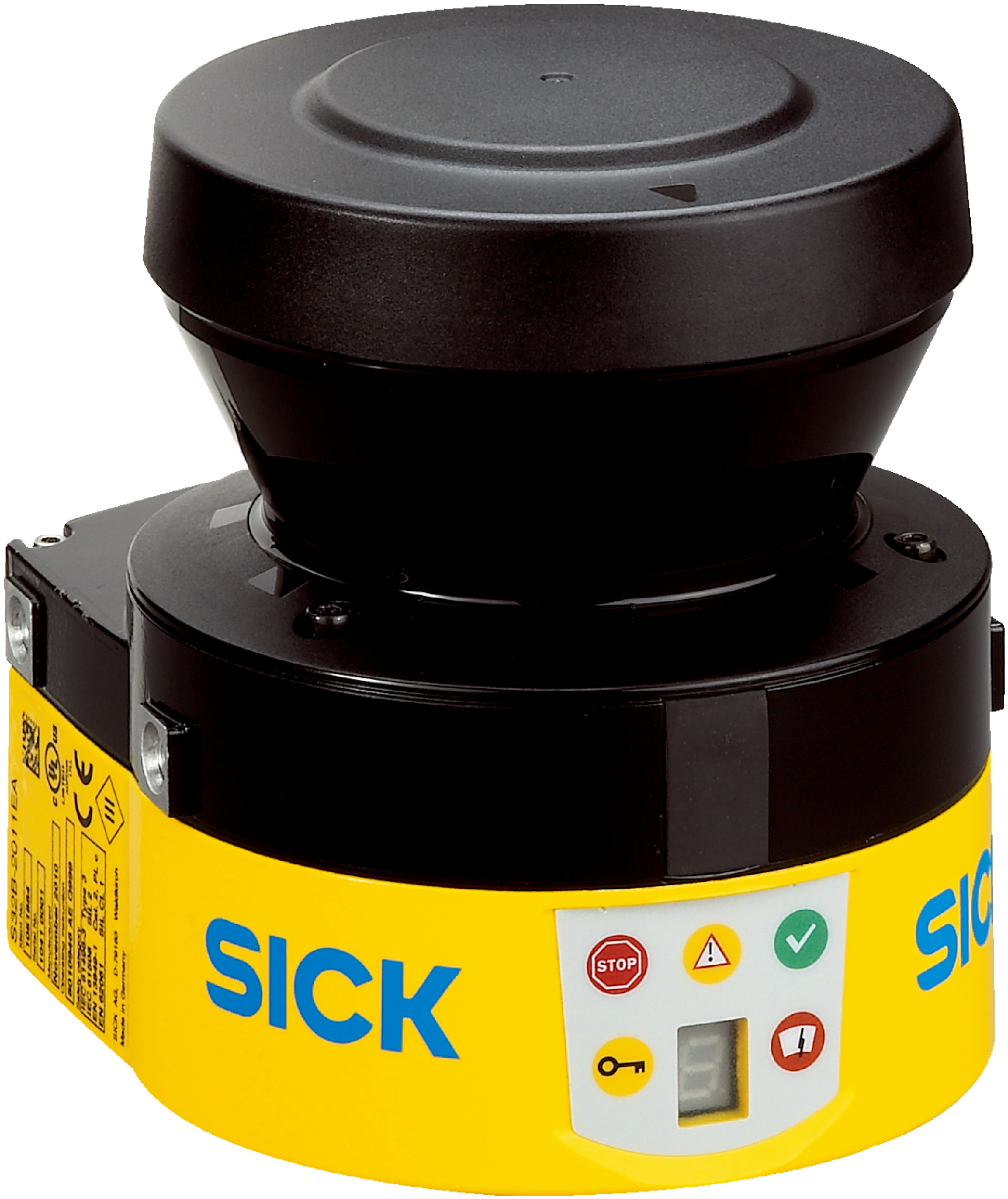

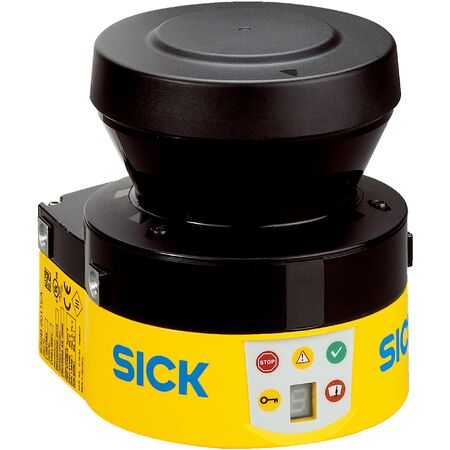

S32B-3011BA Safety Laser Scanner | 3m Protective Range | 270° Scanning Angle | SIL 2 Safety Level | by SICK
The S32B-3011BA Safety Laser Scanner is designed for indoor safety monitoring and industrial automation, featuring a protective field range of 3 meters and a warning field range of 8 meters. With a 270° scanning angle and configurable resolution options, it ensures optimal safety and performance in manufacturing environments. Built to SIL 2 safety standards, this robust scanner is perfect for safeguarding machinery and enhancing workplace safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: S32B-3011BA Safety Laser Scanner | 3m Protective Range | 270° Scanning Angle | SIL 2 Safety Level | by SICK
Brand: SICK
SKU: 1056430
Alternatively Known As: S300 Mini Safety Laser Scanner, SICK Safety Scanner S32B, Industrial Safety Laser Scanner
Technical Specifications
- Protective field range: 3 m
- Warning field range: 8 m at 15% reflectivity
- Distance measuring range: 30 m
- Scanning angle: 270°
- Resolution configurable: 30 mm, 40 mm, 50 mm, 70 mm, 150 mm
- Angular resolution: 0.5°
- Response time: 80 ms
- Safety type: Type 3 (IEC 61496)
- Safety integrity level: SIL 2 (IEC 61508)
- Category: Category 3 (EN ISO 13849)
- Performance level: PL d (EN ISO 13849)
- PFHD: 8.0 x 10^-8
- Mission time: 20 years
- Supply voltage: 24 V DC (16.8 V DC to 30 V DC)
- Power consumption: 0.25 A to 1.35 A
- Enclosure rating: IP65
- Operating temperature: -10 °C to +50 °C
- Laser class: 1 (IEC 60825-1)
- Connection: Cable 250 mm with M12 8-pin male connector
- Configuration interface: RS-232 at 38.4 kBaud
- Dimensions (H x L x W): 116mm x 105mm x 102mm
- Weight: 0.8 kg
Key Features
- Protective field range of 3 m and warning field range of 8 m at 15% reflectivity
- Triple field sets with 3 fields and 1 monitoring case
- 270° scanning angle with configurable resolution options (30 mm to 150 mm)
- Safety integrity level SIL 2, Category 3, Performance level PL d
- Restart interlock, external device monitoring, multiple sampling, and contour reference functions
- Connection via 250 mm cable with male M12 8-pin connector
- PC configuration and diagnostics via RS-232 interface
- Protection class III with 24 V DC supply voltage
- Robust aluminum die cast housing with polycarbonate optics cover and scratch-resistant coating
- IP65 rated enclosure for dust and water protection
- Operating temperature range from -10 °C to +50 °C
- Laser class 1 pulsed laser diode at 905 nm wavelength
Professional Installation Requirements
- Professional installation by a qualified technician or electrician is recommended to ensure compliance with safety standards and optimal device performance.
Applications
- Indoor safety monitoring and protection
- Industrial automation and machinery safeguarding
- Area protection in manufacturing environments
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient operation with low power consumption
- Durable construction reduces waste and replacement frequency
- Supports safer industrial environments reducing accident-related environmental impact
Warranty Information
Warranty details available upon request from manufacturer or authorized distributor.
Available Now
The SICK S32B-3011BA Safety Laser Scanner is available for immediate purchase, ideal for indoor industrial safety and automation applications.
