S3D Glazed Door Steel Enclosure | IP66 Rated | IK08 Impact Resistance | Wall-Mounted | @Pack of 1 | by Clipsal

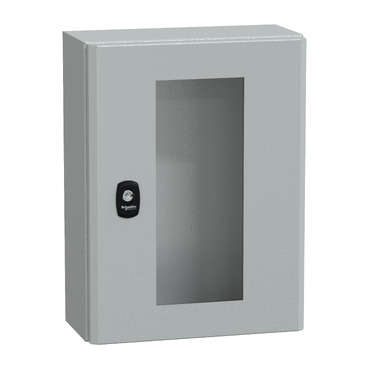

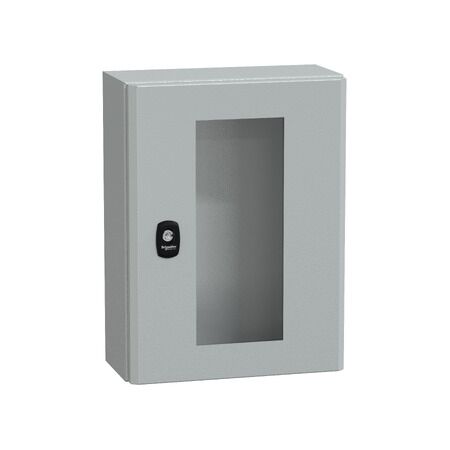

The S3D Glazed Door Steel Enclosure is designed for robust protection in industrial and commercial settings. Featuring a transparent glazed polycarbonate door for easy visual inspection, this enclosure is IP66 rated for dust-tight and powerful water jet protection. Ideal for electrical distribution boards and control panels, it ensures safety and compliance with Australian standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: S3D Glazed Door Steel Enclosure | IP66 Rated | IK08 Impact Resistance | Wall-Mounted | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHNSYS3D4315T
Alternatively Known As: S3D steel enclosure, glazed door electrical cabinet, Clipsal wall mount enclosure, SCHNSYS3D4315T, transparent door control box
Technical Specifications
- Material: Steel enclosure with polyester powder coating
- Door: Transparent glazed polycarbonate
- IP Rating: IP66 (dust-tight, protected against powerful water jets)
- IK Rating: IK08 (protection against 5 joules impact)
- Mounting: Wall-mounted
- Dimensions: 400mm (H) x 300mm (W) x 150mm (D)
- Supplied without mounting plate
- Dimensions (H x L x W): 400mm x 150mm x 300mm
- Weight: 5.5 kg
Key Features
- Wall-mounted steel enclosure for robust protection
- Transparent glazed door for easy visual inspection
- IP66 rated for dust-tight and powerful water jet protection
- IK08 impact resistance for enhanced durability
- Supplied without mounting plate for flexible configuration
- Corrosion-resistant polyester powder coating
Professional Installation Requirements
- Installation by a licensed electrician is required to ensure compliance with Australian standards and optimal safety.
Applications
- Industrial control panels
- Electrical distribution boards
- Commercial and industrial buildings
- Data and communication equipment housing
- Wall-mounted electrical enclosures
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable steel construction extends product lifespan, reducing replacement frequency
- IP66 rating protects sensitive equipment from dust and water, minimizing environmental hazards
- Powder-coated finish is low-emission and corrosion-resistant
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal S3D Glazed Door Steel Enclosure SCHNSYS3D4315T is available for immediate purchase. Ideal for industrial and commercial electrical installations requiring robust protection and easy equipment inspection.
