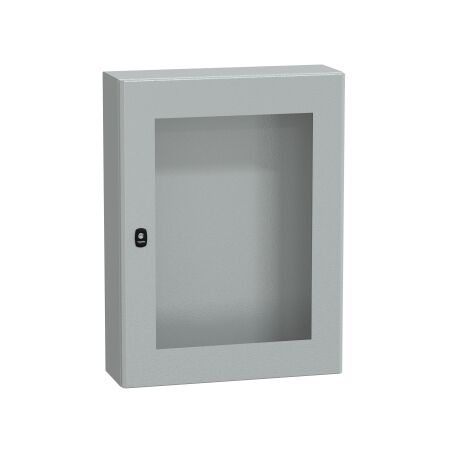

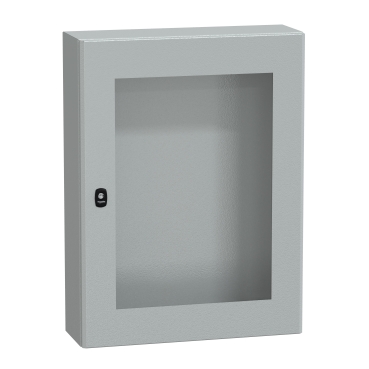

S3D Glazed Door | Steel Construction | IP55 Rated | Secure Locking | @Pack of 1 | by Clipsal
The S3D glazed door features a robust steel construction with a powder-coated finish, ensuring durability and corrosion resistance. Designed for S3D series enclosures, this hinged door provides clear internal visibility and a secure locking mechanism, making it ideal for electrical switchboard and control panel applications in commercial and industrial settings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: S3D Glazed Door | Steel Construction | IP55 Rated | Secure Locking | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHNSYS3D8620T
Alternatively Known As: S3D Enclosure Glazed Door, Clipsal S3D Glass Door, S3D Switchboard Door, S3D Cabinet Door, SCHNSYS3D8620T
Technical Specifications
- Material: Steel with glazed (tempered glass) panel
- Finish: Powder-coated
- Compatible with: S3D series enclosures
- Door type: Hinged, glazed
- Locking: Secure lockable handle
- Ingress protection: IP55 (when installed on compatible enclosure)
- Height: 800mm
- Width: 600mm
- Depth: 200mm
- Dimensions (H x L x W): 800mm x 200mm x 600mm
- Weight: 12 kg
Key Features
- Glazed door for clear internal visibility
- Robust steel construction for enhanced durability
- Powder-coated finish for corrosion resistance
- Suitable for S3D series enclosures
- Easy installation and secure locking mechanism
Professional Installation Requirements
- Installation by a licensed electrician or qualified technician is recommended to ensure compliance with electrical safety standards.
Applications
- Electrical switchboard enclosures
- Industrial control panels
- Commercial and industrial electrical distribution
- Data and communication cabinets
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 60529 – Degrees of protection provided by enclosures (IP Code)
Environmental Benefits
- Durable construction extends product lifespan, reducing replacement frequency.
- Powder-coated finish is low in volatile organic compounds (VOCs).
- Steel is recyclable at end of life.
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal S3D Glazed Door H800xW600xD200 (SCHNSYS3D8620T) is available for immediate purchase. Ideal for electrical switchboard and control panel enclosures in commercial and industrial settings.
