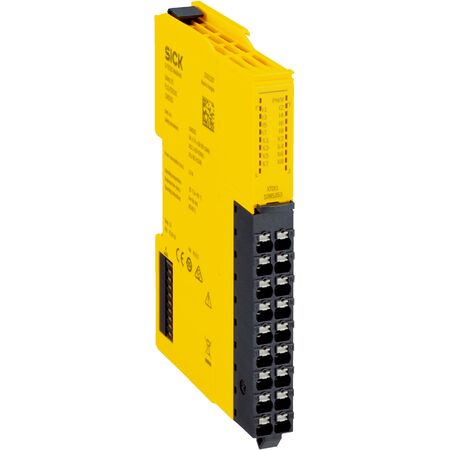

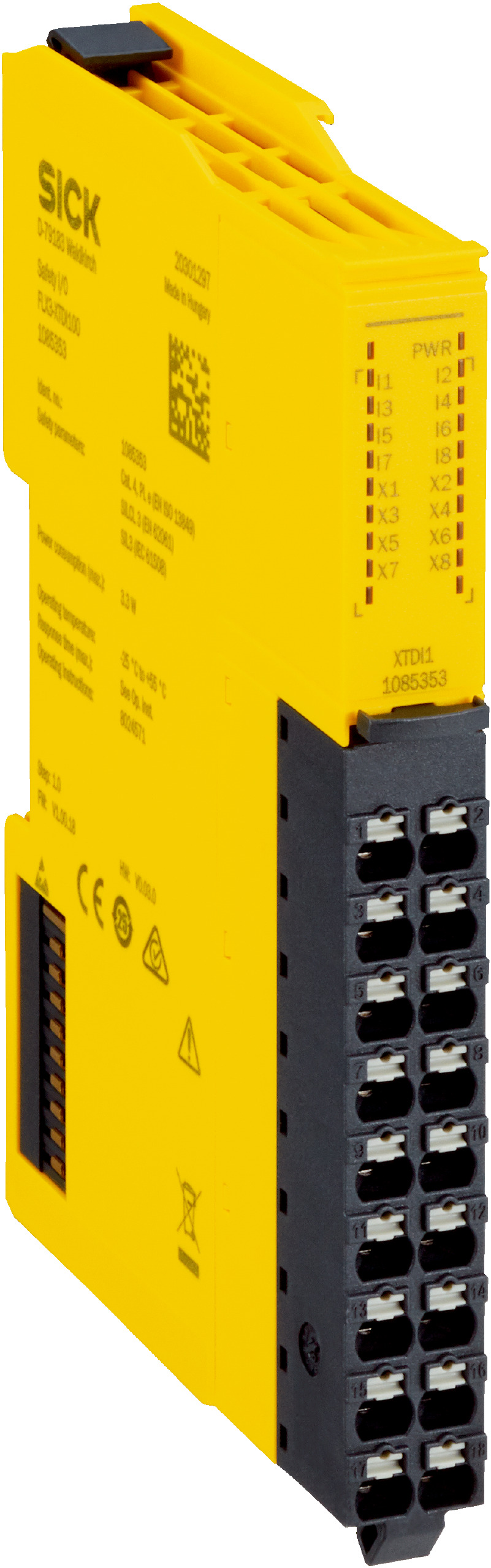

Safe Digital I/O Expansion Module FLX3-XTDI100 | SIL 3 & Category 4 | 8 Safety Inputs & Outputs | by SICK
The Safe Digital I/O Expansion Module FLX3-XTDI100 is designed for industrial automation safety systems, featuring SIL 3 safety integrity and Category 4 compliance. With 8 safety inputs and 8 test outputs, it ensures reliable monitoring and control of safety devices, making it ideal for machine safety applications. Its low power consumption and long operational life of 20 years further enhance its efficiency and sustainability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (ISO 13849-1)
- Performance level: PL e (ISO 13849-1)
- Mean probability of dangerous failure per hour (PFHD): 4 × 10^-9
- Mission time: 20 years (ISO 13849-1)
- Connection type: Front connector with 18 spring terminals
- Protection class: III (EN 61140)
- Interference resistance: EN 61000-6-2
- Interference emission: EN 61000-6-4
- Power consumption: 2.4 W DC (without outputs)
- Power loss: ≤ 3.3 W
- Contamination rating: 2 (IEC 61010-1)
- Control device type: Open device (IEC 61010-2-201)
- Enclosure rating: IP20 (EN 60529)
- Operating temperature range: -25 °C to +55 °C
- Storage temperature range: -25 °C to +70 °C
- Humidity: ≤ 95%, non-condensing
- Vibration resistance: 1 g, 5 Hz to 200 Hz (EN 60068-2-6)
- Shock resistance: 15 g, 11 ms (EN 60068-2-27)
- Dimensions (H x L x W): 125mm x 86mm x 14mm
- Weight: 0.104 kg
Key Features
- Safe digital input/output expansion module with 8 safety inputs and 8 test outputs
- Configuration via software (Safety Designer)
- Monitoring and testing of connected safety devices and wiring with short-circuit detection
- Safe series connection with Flexi Loop
- LED display elements for status indication
- Mounting on standard 35 mm × 7.5 mm mounting rail
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety control systems and compliant with relevant safety standards.
Applications
- Industrial automation safety systems
- Machine safety monitoring and control
- Expansion of safety input/output capabilities in control panels
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption of 2.4 W reduces energy usage
- Designed for long operational life with a mission time of 20 years, minimizing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK FLX3-XTDI100 Safe Digital I/O Expansion Module is available for immediate purchase, ideal for enhancing safety in industrial automation and control systems.
