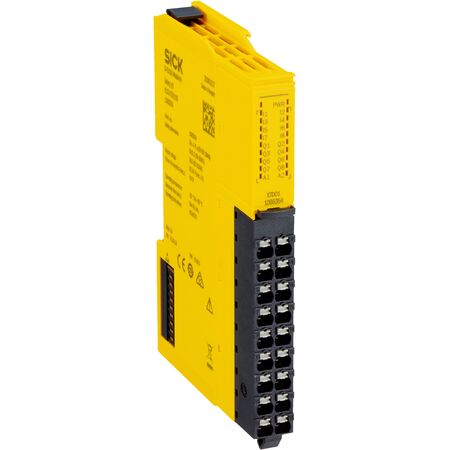

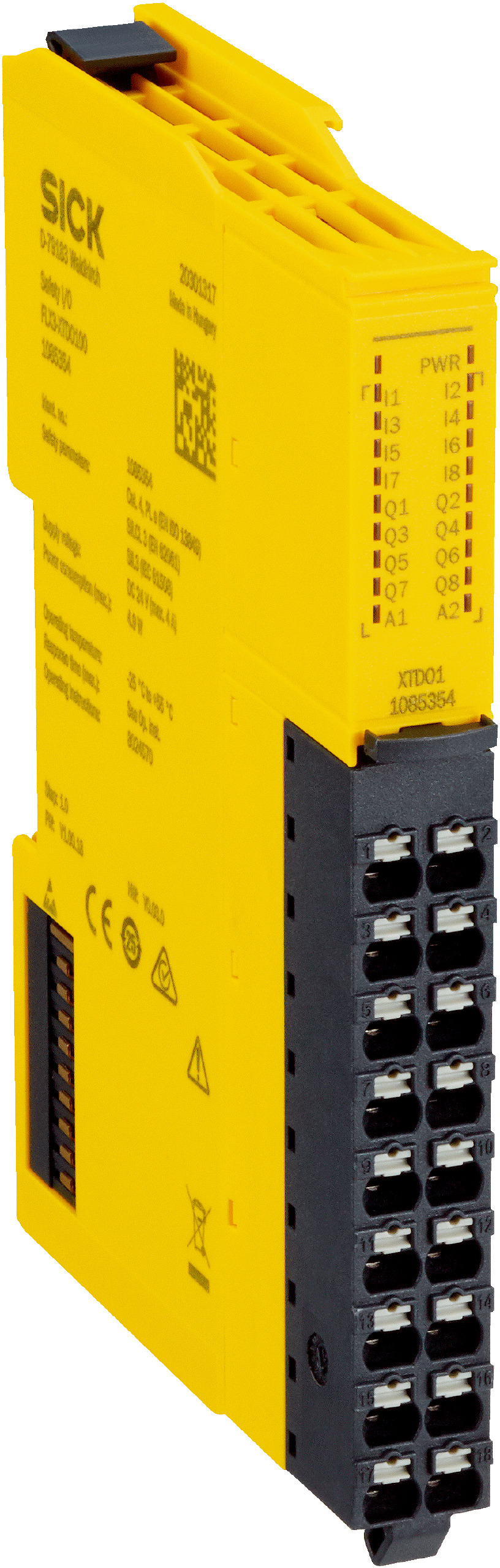

Safe Digital I/O Module FLX3-XTDO100 | 8 Safety Inputs & Outputs | SIL 3 Certified | by SICK
The Safe Digital I/O Module FLX3-XTDO100 is designed for industrial automation safety systems, featuring 8 safety inputs and 8 safety outputs. With SIL 3 certification and a fast shut-off capability, it ensures reliable machine safety monitoring and control. Ideal for factory automation requiring high safety levels, this module enhances operational safety while reducing energy consumption.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Safety inputs: 8
- Safety outputs: 8
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (ISO 13849-1)
- Performance level: PL e (ISO 13849-1)
- Mean probability of dangerous failure per hour (PFHD): 4 × 10^-9
- Mission time: 20 years (ISO 13849-1)
- Connection type: Front connector with 18 spring terminals
- Protection class: III (EN 61140)
- Interference resistance: EN 61000-6-2
- Interference emission: EN 61000-6-4
- Supply voltage: 24 V DC (16.8 V to 30 V)
- Power consumption: 2.4 W nominal, power loss ≤ 4.9 W
- Contamination rating: 2 (IEC 61010-1)
- Enclosure rating: IP20 (EN 60529)
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -25 °C to +70 °C
- Vibration resistance: 1 g, 5 Hz to 200 Hz
- Shock resistance: 15 g, 11 ms
- Mounting: 35 mm × 7.5 mm mounting rail (IEC 60715)
- Dimensions (H x L x W): 124.7mm x 85.5mm x 14mm
- Weight: 0.111 kg
Key Features
- Safe digital input/output expansion module with 8 safety inputs and 8 safety outputs
- Configuration via Safety Designer software
- Fast shut-off capability for connected safety devices
- LED display elements for status indication
- Mounting on standard 35 mm × 7.5 mm mounting rail
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety control systems and electrical standards to ensure compliance and safety.
Applications
- Industrial automation safety systems
- Machine safety monitoring and control
- Factory automation requiring SIL 3 and PL e safety levels
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
- Complies with AS/NZS 45001 – Occupational Health & Safety (aligned with ISO 45001)
Environmental Benefits
- Enhances machine safety reducing risk of accidents and associated environmental hazards
- Low power consumption of 2.4 W nominal reduces energy usage
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK FLX3-XTDO100 Safe Digital I/O Expansion Module is available for immediate purchase, ideal for industrial safety and automation applications.
