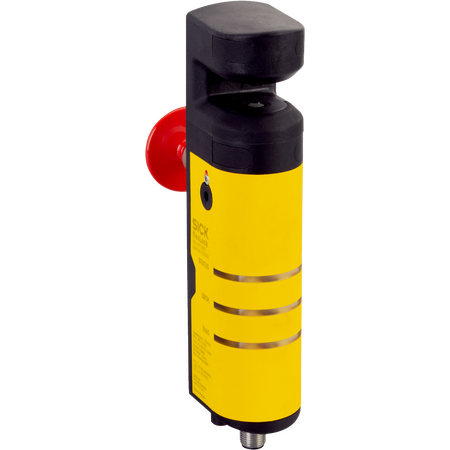

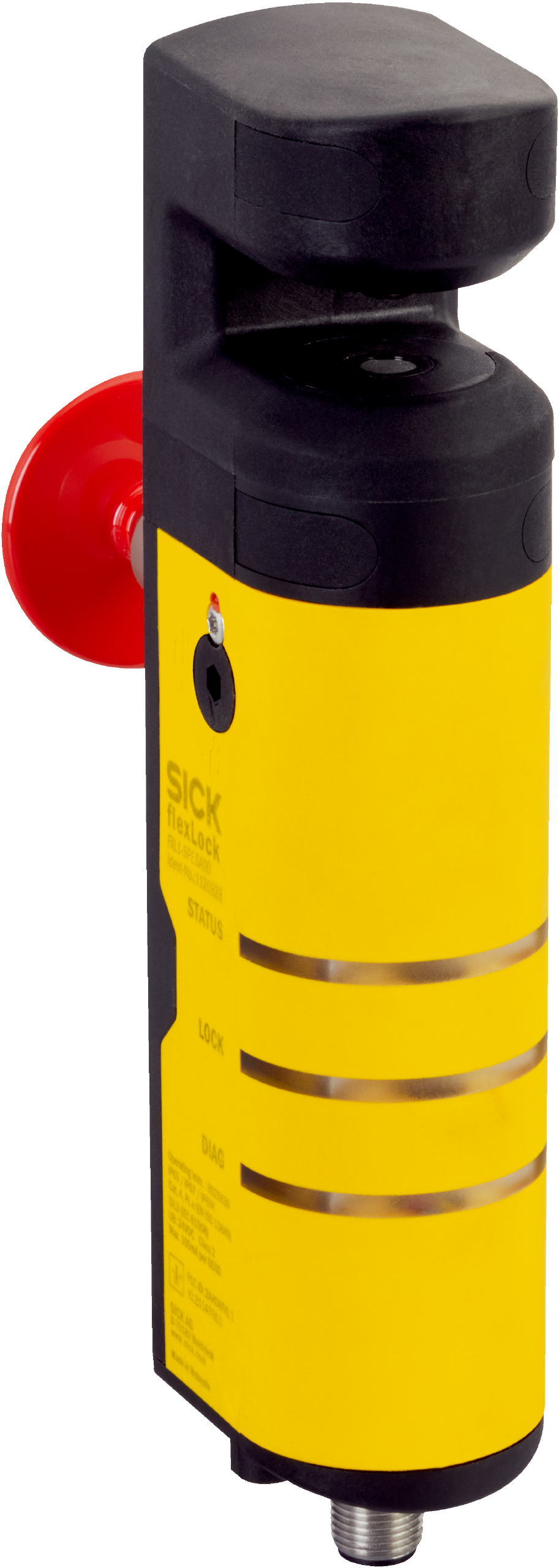

SAFE LOCKING DEVICE FXL1-SPEMSA00 | RFID Sensor | Power to Release | IP65/IP67/IP69K Rated | by SICK
The SAFE LOCKING DEVICE FXL1-SPEMSA00 features RFID sensor technology and a power to release locking principle, making it ideal for industrial safety interlocking in machinery and equipment. With high locking forces up to 4,100 N and compliance with SIL 3 and Category 4 standards, this device ensures secure access control in hazardous areas and automated production lines.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: RFID Safety Locking Device, Power to Release Safety Lock, Industrial Safety Interlock, Machine Safety Lock
Technical Specifications
- Sensor principle: RFID
- Locking principle: Power to release
- Locking force Fmax: up to 4,100 N (flexible actuator)
- Actuation force: 20 N
- Retaining force: 30 N
- Approach speed: ≤ 20 m/min
- Actuation frequency: ≤ 1 Hz
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (EN ISO 13849)
- Performance level: PL e (EN ISO 13849)
- PFHD: 9.55 x 10^-9
- Mission time: 20 years
- Type: Type 4 (EN ISO 14119)
- Connection type: Plug connector, M12, 8-pin
- Protection class: III (IEC 61140)
- Supply voltage: 24 V DC (19.2 V DC ... 28.8 V DC)
- Power consumption: 65 mA locked/unlocked
- Response time: ≤ 150 ms
- Release time: ≤ 350 ms
- Mechanical life: 1 x 10^6 switching cycles
- Enclosure rating: IP65, IP67, IP69K
- Operating temperature: -20 °C to +55 °C
- Dimensions (H x L x W): 50mm x 150mm x 100mm
- Weight: 0.48 kg
Key Features
- RFID sensor principle for secure identification
- Power to release locking principle
- Universally coded actuator
- High locking forces up to 4,100 N (flexible actuator)
- Safety integrity level SIL 3 and Category 4 compliance
- Auxiliary and escape release functions included
- Self-monitoring semiconductor outputs (OSSDs) for safety
- Robust stainless steel and VISTAL® housing materials
- IP65, IP67, IP69K protection ratings for harsh environments
- LED diagnostics and status display for easy monitoring
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety interlock systems and electrical standards to ensure compliance and safety.
Applications
- Industrial safety interlocking for machinery and equipment
- Access control for hazardous areas
- Safety locking in automated production lines
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable materials and long mechanical life reduce waste and replacement frequency
- Energy-efficient operation with low power consumption (65 mA locked/unlocked)
- Compliant with environmental standards including China RoHS and ECOLAB certification
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK FXL1-SPEMSA00 Safe Locking Device is available for immediate purchase, ideal for industrial safety and machinery access control applications.
