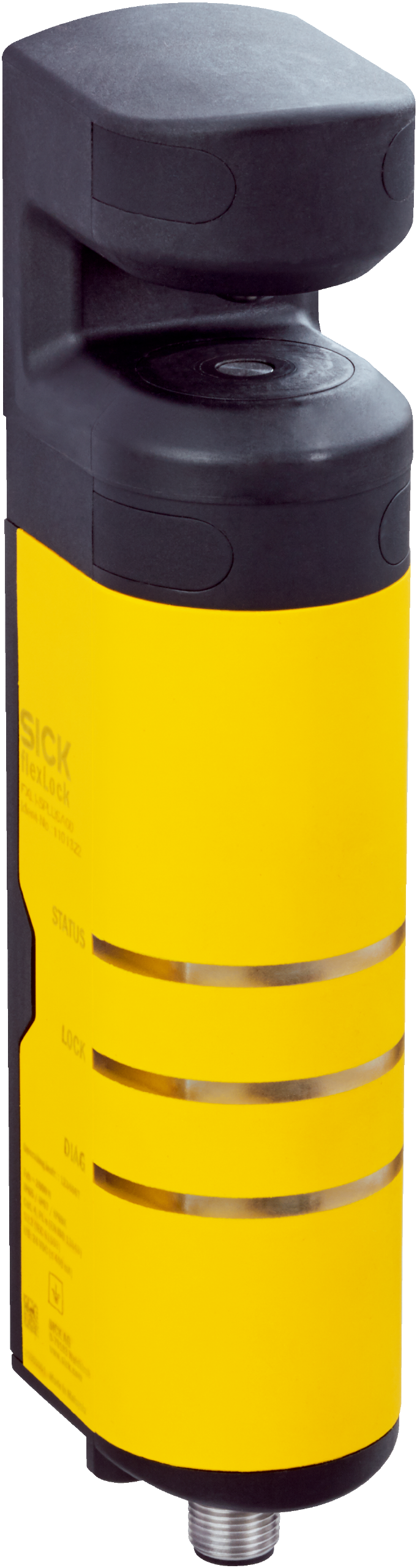

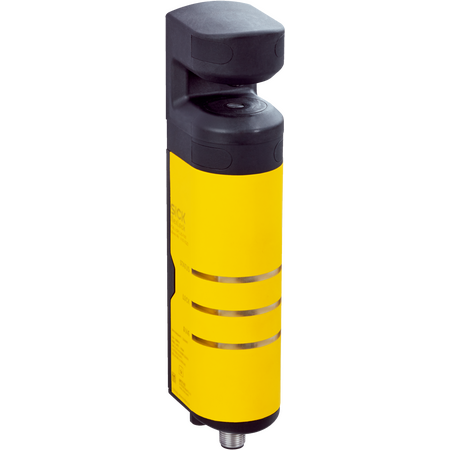

SAFE LOCKING DEVICE | RFID Sensor | Power to Lock | IP65/IP67/IP69K Rated | by SICK
The SAFE LOCKING DEVICE features RFID sensor technology and a power-to-lock mechanism, making it ideal for industrial safety interlocking and access control in hazardous areas. With a robust stainless steel construction and high locking forces up to 4,100 N, it ensures reliable operation in automated production lines while meeting SIL 3 safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: RFID Safety Locking Device, Power to Lock Safety Interlock, Industrial Safety Lock
Technical Specifications
- Sensor principle: RFID
- Locking principle: Power to lock
- Locking force Fmax: up to 4,100 N (flexible actuator)
- Actuation force: 20 N
- Retaining force: 30 N
- Actuation frequency: ≤ 1 Hz
- Approach speed: ≤ 20 m/min
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (EN ISO 13849)
- Performance level: PL e (EN ISO 13849)
- PFHD: 9.55 x 10^-9
- Mission time: 20 years
- Type: Type 4 (EN ISO 14119)
- Actuator coding level: Low coding level
- Safe state on fault: OSSD output OFF
- Connection type: Plug connector, M12, 8-pin
- Coupling nut material: Stainless steel
- Display elements: LEDs with diagnostics and status display
- Protection class: III (IEC 61140)
- Contamination rating: 3 (IEC 60947-1)
- Rated insulation voltage Ui: 32 V
- Rated impulse withstand voltage Uimp: 1,500 V
- Supply voltage VS: 24 V DC (19.2 V DC ... 28.8 V DC)
- Power consumption unlocked: 65 mA
- Power consumption locked: 125 mA
- Peak current: 800 mA, 200 ms
- Output type: Self-monitoring semiconductor outputs (OSSDs), 2 PNP semiconductors
- Output current safety outputs: ≤ 100 mA
- Output current diagnostic outputs: ≤ 50 mA
- Response time: ≤ 150 ms
- Release time: ≤ 350 ms
- Risk time: 150 ms
- Switch-on time: 3 s
- Mechanical life: 1 x 10^6 switching cycles
- Enclosure rating: IP65, IP67, IP69K
- Operating temperature: -20 °C to +55 °C
- Storage temperature: -25 °C to +70 °C
- Relative humidity: 10% to 95% at 40 °C
- Vibration resistance: 10 Hz to 55 Hz, 1 mm
- Shock resistance: 30 g, 11 ms
- EMC standards: EN IEC 61326-3-1, EN IEC 60947-5-2, EN IEC 60947-5-3, EN 300330
- Dimensions (H x L x W): 40mm x 100mm x 60mm
- Weight: 0.535 kg
Key Features
- RFID sensor principle for reliable identification
- Power to lock locking principle
- Universally coded actuator
- High locking forces up to 4,100 N (flexible actuator)
- Safety integrity level SIL 3 and Category 4 compliance
- Self-monitoring semiconductor outputs (OSSDs) for safety outputs
- LED status display with diagnostics indicator
- Robust stainless steel construction with VISTAL® housing
- Protection ratings IP65, IP67, IP69K for harsh environments
- Operating temperature range from -20 °C to +55 °C
Professional Installation Requirements
- Installation must be performed by qualified personnel familiar with safety interlock systems and electrical safety standards to ensure compliance and proper function.
Applications
- Industrial safety interlocking for machinery and equipment
- Access control in hazardous areas
- Safety monitoring in automated production lines
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable materials and robust design reduce replacement frequency and waste
- Low power consumption during locked and unlocked states
- Complies with environmental standards including China RoHS
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK FXL1-SPLMSA00 Safe Locking Device is available for immediate purchase, ideal for industrial safety and access control applications.
