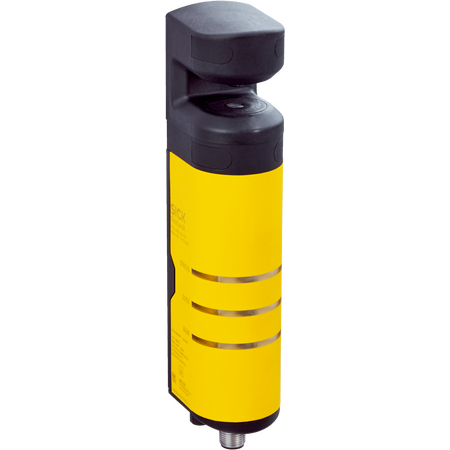

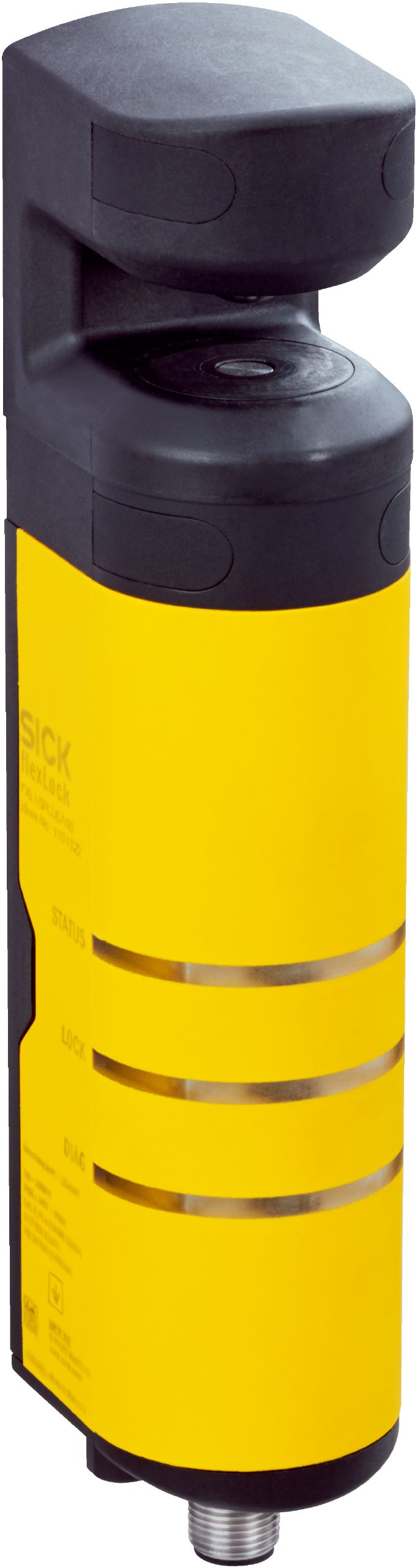

SAFE LOCKING DEVICE | RFID Sensor Principle | High Locking Force 4100 N | IP65, IP67, IP69K Rated | by SICK
The SAFE LOCKING DEVICE features an RFID sensor principle and a power-to-lock mechanism, making it ideal for industrial safety interlocking in machinery and equipment. With high locking forces up to 4,100 N and compliance with SIL 3 and Category 4 standards, this robust device ensures safety in hazardous areas and automated production lines. Its durable stainless steel construction and IP65, IP67, IP69K ratings make it perfect for harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: RFID Safety Locking Device, Power to Lock Safety Interlock, Industrial Safety Lock
Technical Specifications
- Sensor principle: RFID
- Locking principle: Power to lock
- Locking force Fmax: Flexible actuator 4,100 N, Rigid actuator (frontal) 3,630 N, Rigid actuator (lateral) 3,510 N
- Actuation force: 20 N
- Retaining force: 30 N
- Force against which unlocking is possible: ≤ 25 N
- Actuation frequency: ≤ 1 Hz
- Approach speed: ≤ 20 m/min
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (EN ISO 13849)
- Performance level: PL e (EN ISO 13849)
- PFHD: 9.55 x 10^-9
- Mission time: 20 years
- Type: Type 4 (EN ISO 14119)
- Actuator coding level: Low coding level
- Safe state in fault: At least one safety-related semiconductor output (OSSD) OFF
- Connection type: Plug connector, M12, 8-pin
- Coupling nut material: Stainless steel
- Display elements: LEDs with diagnostics indicator and status display
- Protection class: III (IEC 61140)
- Contamination rating: 3 (IEC 60947-1)
- Rated insulation voltage Ui: 32 V
- Rated impulse withstand voltage Uimp: 1,500 V
- Supply voltage VS: 24 V DC (19.2 V DC ... 28.8 V DC)
- Power consumption: 65 mA unlocked, 125 mA locked
- Peak current: 800 mA, 200 ms
- Output type: Self-monitoring semiconductor outputs (OSSDs), 2 PNP semiconductors, short-circuit protected
- Output current: Safety outputs ≤ 100 mA, Application diagnostic outputs ≤ 50 mA
- Response time: ≤ 150 ms
- Release time: ≤ 350 ms
- Risk time: 150 ms
- Switch-on time: 3 s
- Mechanical life: 1 x 10^6 switching cycles
- Material: Housing VISTAL®, Ball bracket stainless steel, Latch plate stainless steel, Plug connectors stainless steel
- Enclosure rating: IP65, IP67, IP69K
- Operating temperature: –20 °C to +55 °C
- Storage temperature: –25 °C to +70 °C
- Relative humidity: 10% to 95% at 40 °C
- Vibration resistance: 10 Hz to 55 Hz, 1 mm
- Shock resistance: 30 g, 11 ms
- EMC standards: EN IEC 61326-3-1, EN IEC 60947-5-2, EN IEC 60947-5-3, EN 300330
- Dimensions (H x L x W): 30mm x 100mm x 60mm
- Weight: 0.535 kg
Key Features
- RFID sensor principle for reliable actuator detection
- Power to lock locking principle
- Universally coded actuator
- High locking forces up to 4,100 N (flexible actuator)
- Safety integrity level SIL 3 and Category 4 compliance
- Self-monitoring semiconductor outputs (OSSDs) with actuator monitoring
- Robust stainless steel construction with VISTAL® housing
- IP65, IP67, IP69K rated for harsh environments
- LED status display and diagnostics indicator
- Low actuation force of 20 N and retaining force of 30 N
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety interlock systems and electrical standards to ensure compliance and safety.
Applications
- Industrial safety interlocking for machinery and equipment
- Access control in hazardous areas
- Safety locking in automated production lines
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable materials and robust design reduce replacement frequency and waste
- Low power consumption with efficient locking and unlocking
- Complies with environmental standards including China RoHS
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK FXL1-SPLMAA00 Safe Locking Device is available for immediate purchase, ideal for industrial safety and machinery access control applications.
