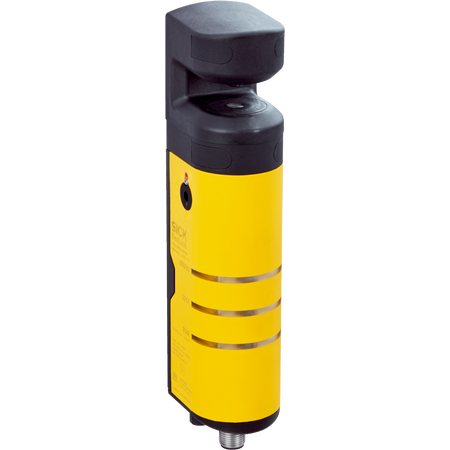

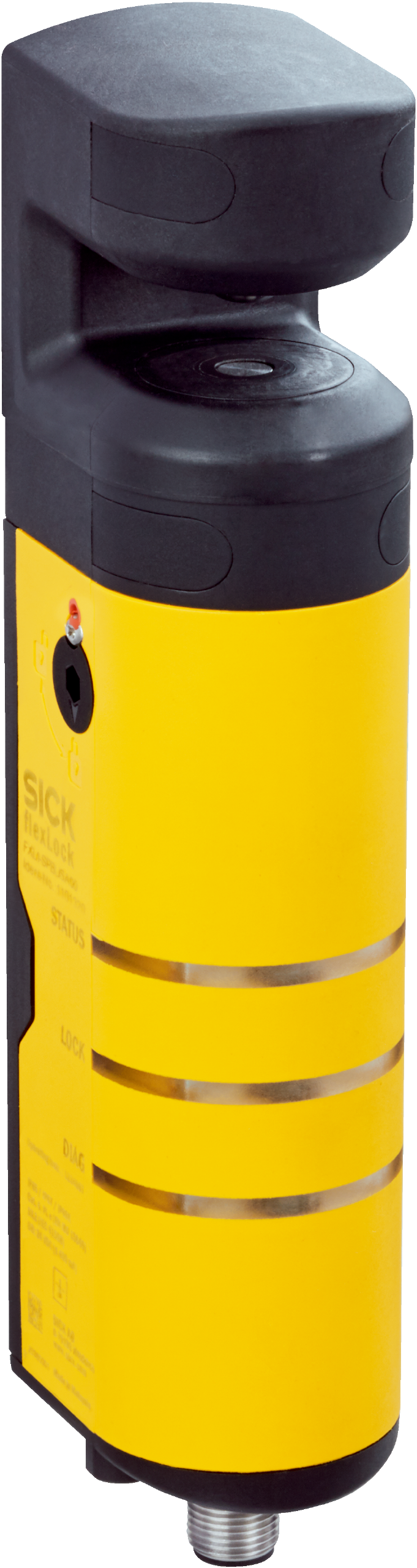

SAFE LOCKING DEVICE | RFID Sensor Principle | Power to Release | High Locking Force up to 4100N | by SICK

BRAND: SICK
SKU: 1101320
$1,190.10 List price: $1,495.80
+ −
30 Days Return Electricians Unlock Trade Access
The SAFE LOCKING DEVICE features an RFID sensor principle and a power to release locking mechanism, making it ideal for industrial safety interlocking in machinery and equipment. With a high locking force of up to 4,100 N and compliance with SIL 3 safety standards, this device ensures reliable access control in hazardous areas and automated production lines.

Alternatively Known As: RFID Safety Lock, Power to Release Locking Device, Industrial Safety Interlock, Machine Safety Lock

Technical Specifications
  • Sensor principle: RFID
  • Locking principle: Power to release
  • Locking force Fmax: up to 4,100 N (flexible actuator)
  • Actuation force: 20 N
  • Retaining force: 30 N
  • Actuation frequency: ≤ 1 Hz
  • Approach speed: ≤ 20 m/min
  • Safety integrity level: SIL 3 (IEC 61508)
  • Category: Category 4 (EN ISO 13849)
  • Performance level: PL e (EN ISO 13849)
  • PFHD: 9.55 x 10^-9
  • Mission time: 20 years
  • Type: Type 4 (EN ISO 14119)
  • Connection type: Plug connector, M12, 8-pin
  • Protection class: III (IEC 61140)
  • Contamination rating: 3 (IEC 60947-1)
  • Supply voltage: 24 V DC (19.2 V DC ... 28.8 V DC)
  • Power consumption: 65 mA locked/unlocked
  • Peak current: 800 mA, 200 ms
  • Output: Self-monitoring semiconductor outputs (OSSDs), 2 PNP semiconductors
  • Response time: ≤ 150 ms
  • Release time: ≤ 350 ms
  • Mechanical life: 1 million switching cycles
  • Enclosure rating: IP65, IP67, IP69K
  • Operating temperature: -20 °C to +55 °C
  • Storage temperature: -25 °C to +70 °C
  • Vibration resistance: 10 Hz to 55 Hz, 1 mm
  • Shock resistance: 30 g, 11 ms
  • Dimensions (H x L x W): 40mm x 100mm x 60mm
  • Weight: 0.48 kg
Key Features
  • RFID sensor principle for reliable locking and unlocking
  • Power to release locking principle
  • Uniquely coded actuator for high security
  • High locking forces up to 4,100 N depending on actuator type
  • Safety integrity level SIL 3 and Category 4 compliance
  • Self-monitoring semiconductor outputs (OSSDs) with locking monitoring
  • Robust stainless steel construction with VISTAL® housing
  • IP65, IP67, IP69K rated for harsh environments
  • LED diagnostics and status display for easy monitoring
  • Auxiliary release function included
Professional Installation Requirements
  • Installation by qualified personnel is required to ensure compliance with safety standards and proper integration into safety control systems.
Applications
  • Industrial safety interlocking for machinery and equipment
  • Access control in hazardous areas
  • Safety monitoring in automated production lines
Standards & Compliance
  • AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
  • Durable materials and long mechanical life reduce waste and replacement frequency
  • Energy-efficient operation with low power consumption (65 mA)
  • Complies with RoHS and other environmental standards
Warranty Information

Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.

Available Now

The SICK FXL1-SPBUSA00 Safe Locking Device is available for immediate purchase, ideal for industrial safety and machinery access control applications.
