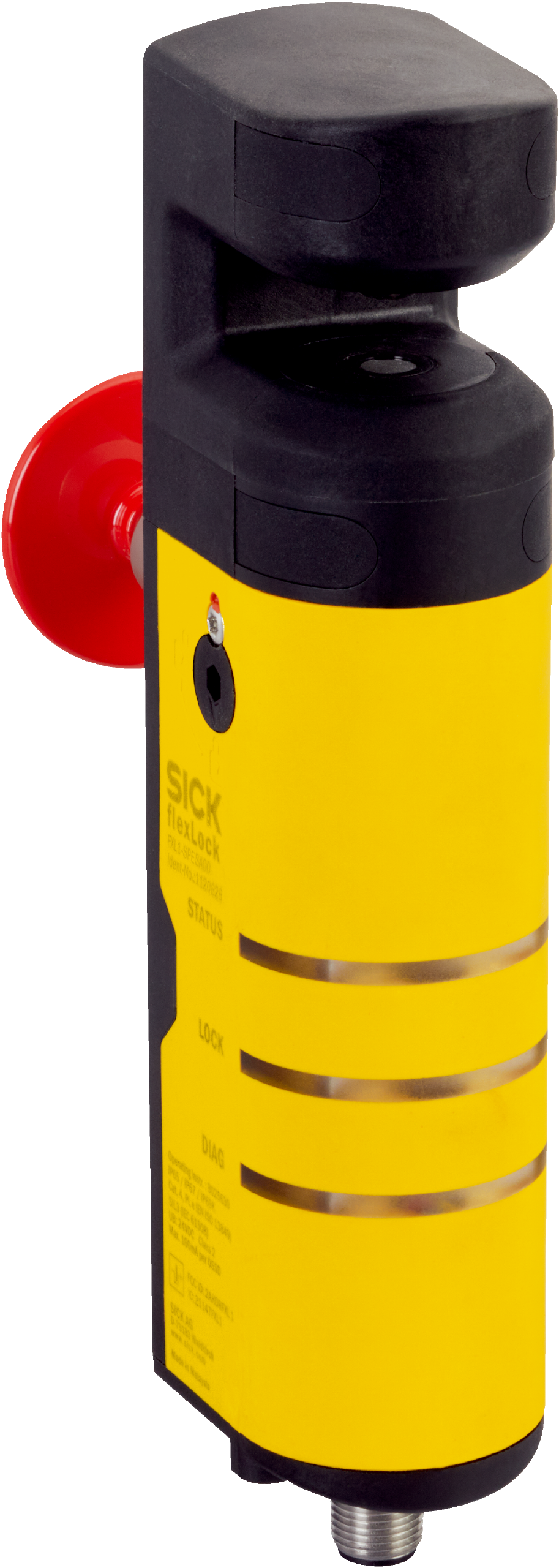

SAFE LOCKING DEVICE | RFID Sensor | Power to Release | High Locking Force up to 4100N | by SICK
The SAFE LOCKING DEVICE features an RFID sensor for reliable locking and monitoring, utilizing a power to release locking principle. Ideal for industrial safety interlocking in machinery and equipment, it ensures high security with a uniquely coded actuator and robust stainless steel housing. With IP65, IP67, and IP69K ratings, this device is built for harsh environments, providing peace of mind in hazardous areas.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: RFID Safety Lock, Safety Interlock Switch, Power to Release Locking Device, Industrial Safety Lock
Technical Specifications
- Sensor principle: RFID
- Locking principle: Power to release
- Locking force Fmax: up to 4,100 N (flexible actuator)
- Actuation force: 20 N
- Retaining force: 30 N
- Force against which unlocking is possible: ≤ 25 N
- Actuation frequency: ≤ 1 Hz
- Approach speed: ≤ 20 m/min
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (EN ISO 13849)
- Performance level: PL e (EN ISO 13849)
- PFHD: 9.55 x 10^-9
- Mission time: 20 years
- Type: Type 4 (EN ISO 14119)
- Actuator coding level: High coding level
- Safe state on fault: OSSD OFF
- Connection type: Plug connector, M12, 8-pin
- Coupling nut material: Stainless steel
- Display elements: LEDs with diagnostics and status display
- Protection class: III (IEC 61140)
- Contamination rating: 3 (IEC 60947-1)
- Rated insulation voltage Ui: 32 V
- Rated impulse withstand voltage Uimp: 1,500 V
- Supply voltage VS: 24 V DC (19.2 V DC ... 28.8 V DC)
- Power consumption: 65 mA (locked and unlocked)
- Peak current: 800 mA, 200 ms
- Output type: Self-monitoring semiconductor outputs (OSSDs), 2 PNP semiconductors
- Output current: Safety outputs ≤ 100 mA, Application diagnostic outputs ≤ 50 mA
- Response time: ≤ 150 ms
- Release time: ≤ 350 ms
- Risk time: 150 ms
- Switch-on time: 3 s
- Mechanical life: 1 million switching cycles
- Enclosure rating: IP65, IP67, IP69K
- Operating temperature: –20 °C to +55 °C
- Storage temperature: –25 °C to +70 °C
- Relative humidity: 10% to 95% at 40 °C
- Vibration resistance: 10 Hz to 55 Hz, 1 mm
- Shock resistance: 30 g, 11 ms
- EMC standards: EN IEC 61326-3-1, EN IEC 60947-5-2, EN IEC 60947-5-3, EN 300330
- Dimensions (H x L x W): 120mm x 40mm x 60mm
- Weight: 0.48 kg
Key Features
- RFID sensor principle for reliable locking and monitoring
- Power to release locking principle
- Uniquely coded actuator for high security
- High locking forces up to 4,100 N depending on actuator type
- Auxiliary and escape release functions included
- Self-monitoring semiconductor outputs (OSSDs) for safety
- LED diagnostics and status display for easy monitoring
- Robust stainless steel and VISTAL® housing materials
- Protection class III and contamination rating 3
- IP65, IP67, IP69K enclosure ratings for harsh environments
- Certified SIL 3, Category 4, Performance Level e safety standards
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety interlock systems and electrical standards to ensure compliance and safety.
Applications
- Industrial safety interlocking for machinery and equipment
- Access control in hazardous areas
- Safety monitoring in manufacturing and automation systems
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
- AS/NZS 45001 – Occupational Health & Safety (aligned with ISO 45001)
Environmental Benefits
- Durable materials and long mechanical life reduce waste and replacement frequency
- Low power consumption (65 mA) minimizes energy use
- High safety integrity reduces risk of accidents and associated environmental impact
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now

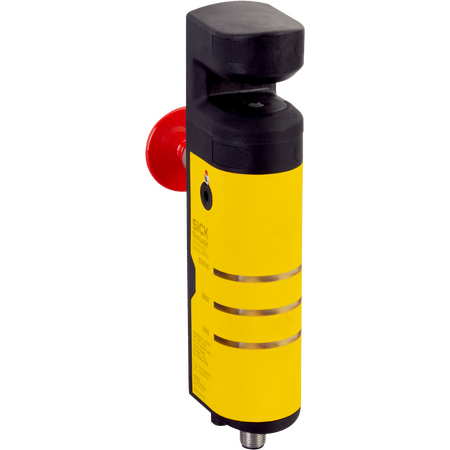

The SICK FXL1-SPEUSA00 Safe Locking Device is available for immediate purchase, ideal for industrial safety and access control applications.
