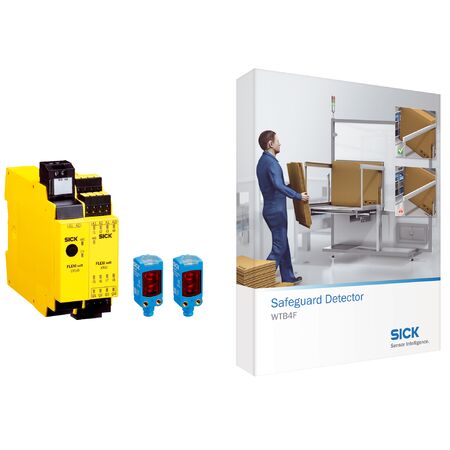

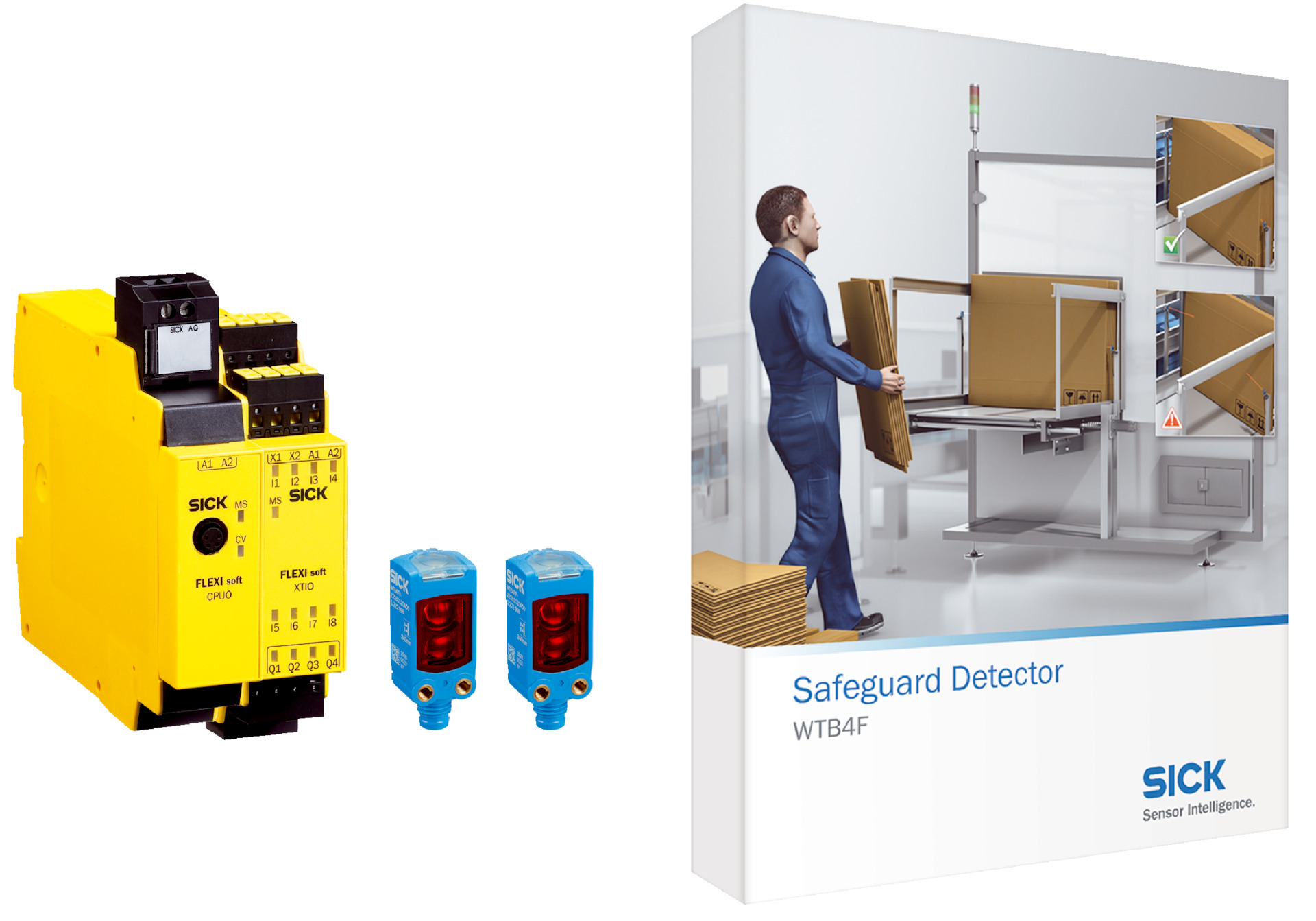

Safeguard Detector Software Flexi Soft | Category 3 Safety System | Modular Design | by SICK
The Safeguard Detector Software Flexi Soft is designed for industrial safety systems, providing ready-made safety functions for movable guard detection. Ideal for machine guarding and hazardous point protection, this software ensures compliance with Category 3 safety-related parameters and offers a modular design for customizable setups, enhancing workplace safety and efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 100mm x 200mm x 150mm
- Weight: 1.5 kg
Key Features
- Software for Safeguard Detector safety system based on Flexi Soft safety control device
- Safe logic with ready-made safety functions for movable guard detection
- Category 3 (EN ISO 13849-1) safety-related parameters
- Performance level PL d (EN ISO 13849-1)
- Performance class SRS/SRSS D (IEC TS 62998-1)
- Mean probability of dangerous failure per hour (PFHD) 1.0 * 10^-7
- Modular Flexi Soft safety controller design with customizable modules
- Supports approx. 12 connectable sensor pairs
- Spring terminal connection type
- Max safety controller cycle time ≤ 28 ms
- Supply voltage 24 V DC (16.8 V ... 30 V)
- Protection class III (EN 50178)
- Enclosure rating IP20 (EN 60529)
- Fieldbus integration via gateway supporting CANopen, EtherCAT®, EtherNet/IP™, Modbus TCP, PROFIBUS DP, PROFINET, DeviceNet™
- MultiPulse photoelectric proximity sensors with detection zone 30 mm ... 150 mm
- Sensor pulse frequency 10 Hz, response time ≤ 100 ms
- Visible red light type with 650 nm wavelength
- Sensor enclosure rating IP67 (EN 60529)
- Operating temperature range -25 °C ... 55 °C (controller), -40 °C ... +60 °C (sensors)
Professional Installation Requirements
- Installation and configuration should be performed by qualified safety system engineers or certified electricians familiar with Flexi Soft safety controllers and industrial safety standards.
Applications
- Industrial safety systems for hazardous point protection
- Machine guarding and movable guard detection
- Automation safety control in manufacturing environments
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Enhances workplace safety reducing risk of accidents and associated environmental hazards
- Modular design allows for scalable and efficient system upgrades minimizing waste
- Energy efficient operation with low power consumption sensors and controller
Warranty Information
Warranty details available upon request from manufacturer; typically includes coverage against manufacturing defects.
Available Now
The SICK SYS/SGD-W4154020101FX3 Safeguard Detector Software with Flexi Soft Safety Controller is available for immediate purchase. Ideal for industrial safety and machine guarding applications.
