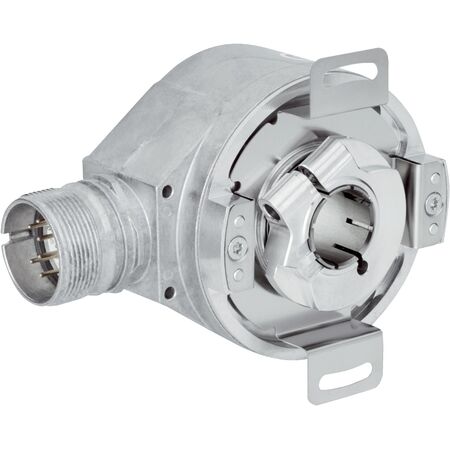

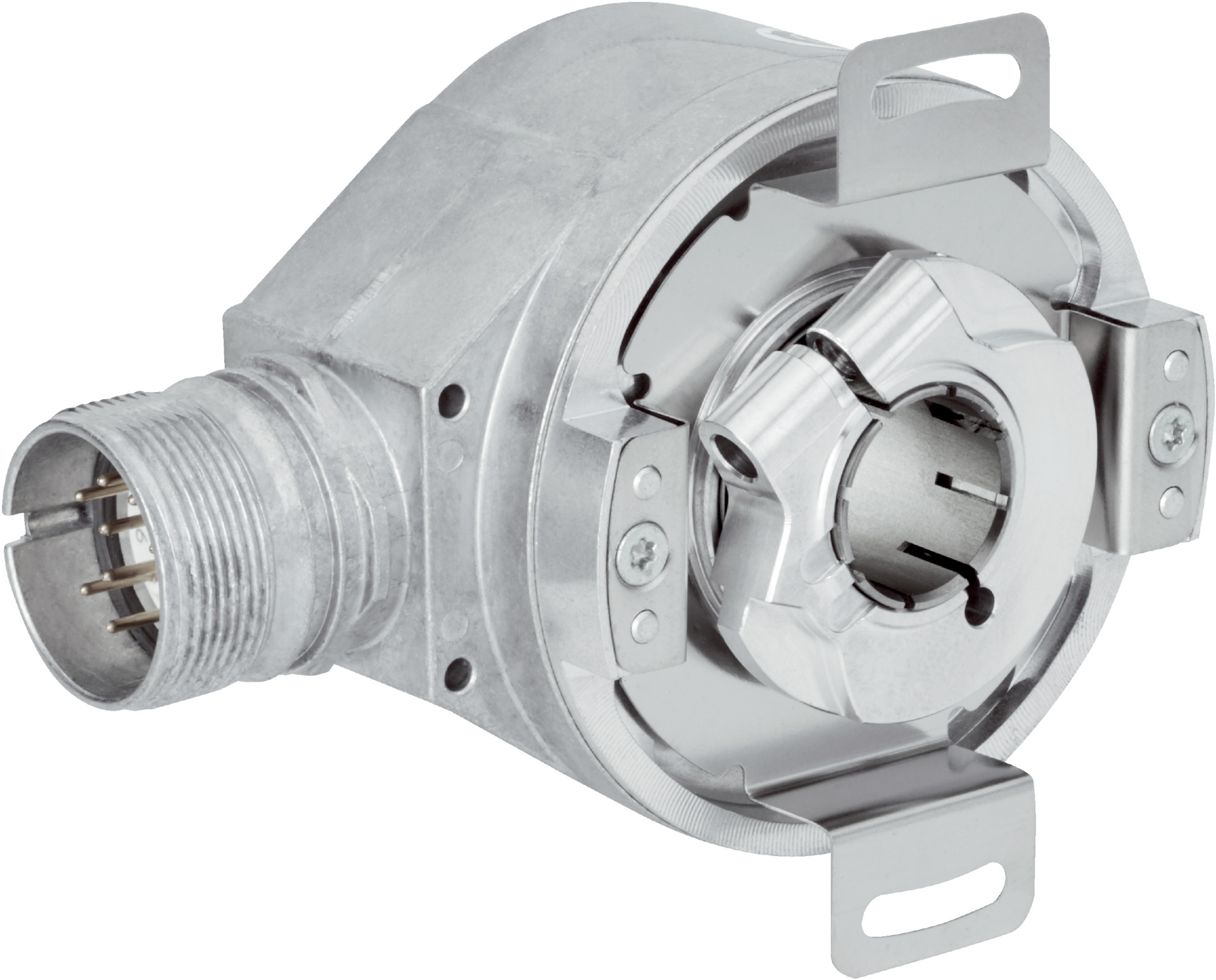

Safety Absolute Encoder SFM60S-HPAT0K02 | SIL 2 Certified | High Resolution | IP65 Rated | by SICK
The Safety Absolute Encoder SFM60S-HPAT0K02 is designed for industrial automation, offering SIL 2 safety integrity and high-resolution position measurement. With a robust aluminum housing and an operating temperature range of -30 °C to +95 °C, it's perfect for safety-critical applications in robotics and motion control. This encoder ensures precise performance with low current consumption and high resistance to shocks and vibrations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Safety integrity level: SIL 2 (IEC 61508), SILCL2 (EN 62061)
- Category: 3 (EN ISO 13849), Performance Level: PL d
- Sine/cosine periods per revolution: 1,024
- Absolute revolutions: 4,096
- Total steps: 134,217,728
- Measuring step: 0.3″ interpolation with 12 bit
- Integral non-linearity: ±45″ typical
- Differential non-linearity: ±7″
- Operating speed: up to 6,000 min⁻¹
- Memory area: 1,792 Byte
- System accuracy: ±52″
- Code type: Binary, rising sequence for clockwise rotation
- Interface: HIPERFACE®
- Connection: Male M23, 12-pin radial connector
- Supply voltage: 7 V DC to 12 V DC, recommended 8 V DC
- Current consumption: <80 mA without load
- Output frequency sine/cosine: ≤ 200 kHz
- Shaft: Through hollow shaft, 15 mm diameter, stainless steel
- Housing: Aluminum die cast, flange die-cast zinc
- Moment of inertia rotor: 56 gcm²
- Operating torque: 0.6 Ncm at 20 °C
- Start-up torque: 0.8 Ncm at 20 °C
- Permissible static movement: ±0.3 mm radial, ±0.5 mm axial
- Permissible dynamic movement: ±0.05 mm radial, ±0.1 mm axial
- Life of ball bearings: 3.6 x 10⁹ revolutions
- Operating temperature: -30 °C to +95 °C
- Storage temperature: -40 °C to +100 °C
- Relative humidity: 90%, no condensation
- Shock resistance: 100 g, 6 ms
- Vibration resistance: 10 g, 10 Hz to 1,000 Hz
- EMC: Compliant with EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65 with connector inserted
- Operating altitude: up to 2,000 m
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.25 kg
Key Features
- Safety integrity level SIL 2 (IEC 61508), SILCL2 (EN 62061)
- Category 3 (EN ISO 13849) with Performance Level PL d
- High resolution with 1,024 sine/cosine periods per revolution
- Absolute position measurement with 4,096 revolutions and 134,217,728 total steps
- Robust aluminum die-cast housing with IP65 rating
- Operating temperature range from -30 °C to +95 °C
- Through hollow shaft with 15 mm diameter made of stainless steel
- Communication via HIPERFACE® interface
- Low current consumption under 80 mA
- High resistance to shocks (100 g) and vibrations (10 g, 10 Hz to 1,000 Hz)
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety-related encoder systems and compliant with relevant safety standards.
Applications
- Industrial automation requiring precise and safe position measurement
- Safety-related machinery control systems
- Robotics and motion control applications
- High-speed rotary applications up to 6,000 min⁻¹
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing electronic waste
- Low power consumption contributes to energy efficiency in industrial systems
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK SFM60S-HPAT0K02 Safety-Related Absolute Encoder is available for immediate purchase, ideal for industrial automation and safety-critical applications.
