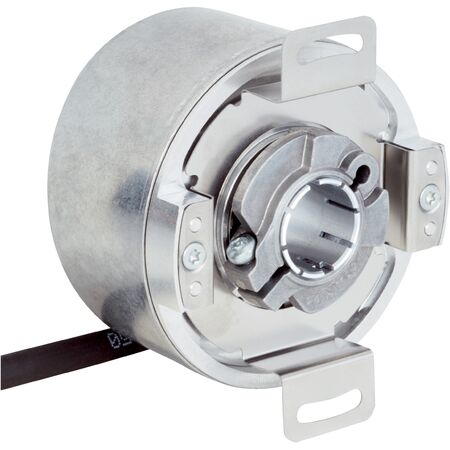

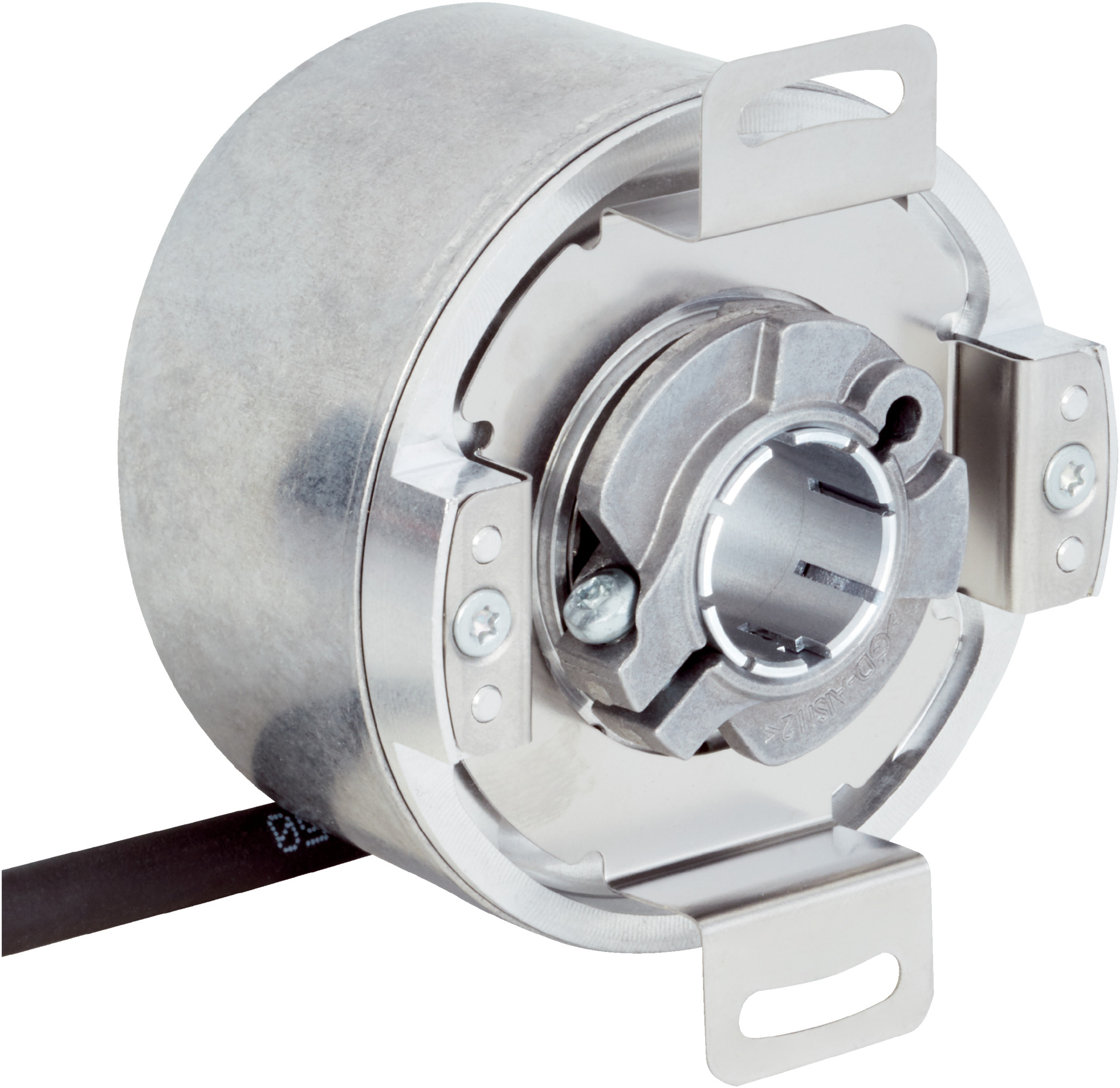

Safety Absolute Encoder SFM60S-HPKB0K02 | SIL 2 & PL d Compliance | IP65 Rated | by SICK
The Safety Absolute Encoder SFM60S-HPKB0K02 is designed for industrial automation, offering SIL 2 and PL d compliance for safety-critical applications. With high resolution of 1,024 sine/cosine periods per revolution and robust IP65 rated aluminum housing, it ensures precise position feedback in high-speed rotary applications up to 6,000 min⁻¹. Ideal for safety-related machinery control, this encoder is built to withstand harsh environments with an operating temperature range of -30 °C to +85 °C.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Safety integrity level: SIL 2 (IEC 61508), SILCL2 (EN 62061)
- Category: 3 (EN ISO 13849)
- Performance level: PL d (EN ISO 13849)
- Sine/cosine periods per revolution: 1,024
- Absolute revolutions: 4,096
- Total steps: 134,217,728
- Measuring step: 0.3″ with 12 bit interpolation
- Integral non-linearity: ±45″
- Differential non-linearity: ±7″
- Operating speed: ≤ 6,000 min⁻¹
- System accuracy: ±52″
- Connection type: Cable, 8-wire, 1.5 m
- Supply voltage: 7 V DC to 12 V DC
- Current consumption: < 80 mA
- Output frequency for sine/cosine signals: ≤ 200 kHz
- Shaft diameter: 15 mm, stainless steel
- Housing material: Aluminum die cast
- Enclosure rating: IP65 with mating connector
- Operating temperature: -30 °C to +85 °C
- Relative humidity: 90%, no condensation
- Resistance to shocks: 100 g, 6 ms
- Resistance to vibrations: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.25 kg
Key Features
- Safety integrity level SIL 2 (IEC 61508) and SILCL2 (EN 62061)
- Category 3 (EN ISO 13849) with Performance Level PL d
- High resolution with 1,024 sine/cosine periods per revolution
- Absolute position encoding with 4,096 revolutions and 134,217,728 total steps
- Robust IP65 rated aluminum die-cast housing
- Operating temperature range from -30 °C to +85 °C
- Blind hollow shaft with 15 mm diameter made of stainless steel
- Low operating torque of 0.6 Ncm at +20 °C
- Cable connection with 8-wire universal 1.5 m cable
- Compliant with multiple international certifications including EU, UK, ACMA, and China-RoHS
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety-related encoder systems and compliant with relevant safety standards.
Applications
- Industrial automation and safety systems requiring precise position feedback
- Safety-related machinery control with SIL 2 and PL d compliance
- High-speed rotary applications up to 6,000 min⁻¹
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Low power consumption (<80 mA) supports energy-efficient operation
- Robust construction minimizes environmental impact through extended product life
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK SFM60S-HPKB0K02 Safety-Related Absolute Encoder is available for immediate purchase, ideal for industrial automation and safety-critical applications.
