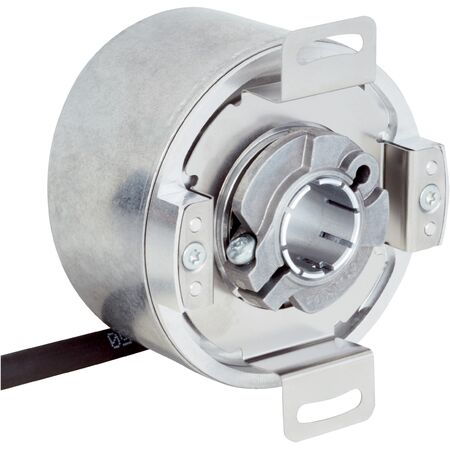

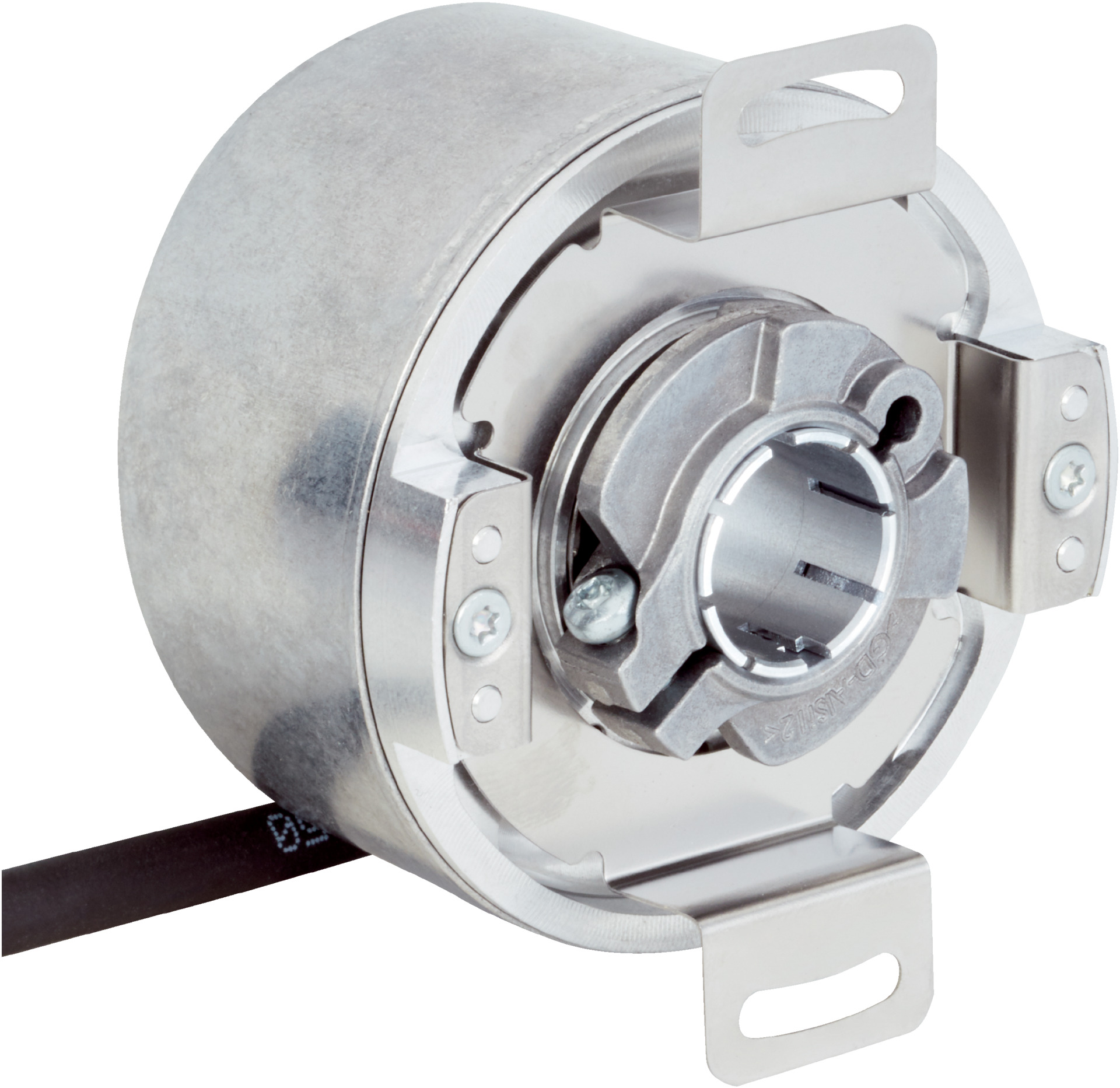

Safety Absolute Encoder SFM60S-HRKB0K02 | SIL 2 Certified | 4,096 Absolute Revolutions | IP65 Rated | by SICK
The Safety Absolute Encoder SFM60S-HRKB0K02 is designed for industrial automation, offering SIL 2 safety integrity and high precision with 4,096 absolute revolutions. Ideal for safety-related machinery control and robotics, it features a robust aluminum housing and operates in extreme temperatures from -30 °C to +85 °C, ensuring reliability in critical applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Safety integrity level: SIL 2 (IEC 61508), SILCL2 (EN 62061)
- Category: 3 (EN ISO 13849)
- Performance level: PL d (EN ISO 13849)
- Sine/cosine periods per revolution: 1,024
- Absolute revolutions: 4,096
- Total steps: 134,217,728
- Measuring step: 0.3 ″ (interpolated sine/cosine signals)
- Integral non-linearity: ± 45 ″
- Differential non-linearity: ± 7 ″
- Operating speed: ≤ 6,000 min⁻¹
- Memory area: 1,792 Byte
- System accuracy: ± 52 ″
- Code type: Binary, rising sequence for clockwise rotation
- Communication interface: HIPERFACE®
- Connection: 8-wire cable, 1.5 m
- Supply voltage: 7 V DC to 12 V DC, recommended 8 V DC
- Current consumption: < 80 mA (no load)
- Output frequency: ≤ 200 kHz
- Shaft: Blind hollow shaft, 14 mm diameter, stainless steel
- Housing: Aluminum die cast
- Flange: Die-cast zinc
- Moment of inertia: 56 gcm²
- Operating temperature: –30 °C to +85 °C
- Storage temperature: –40 °C to +90 °C
- Relative humidity: 90%, no condensation
- Shock resistance: 100 g, 6 ms
- Vibration resistance: 20 g, 10 Hz to 2,000 Hz
- EMC: EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65 with connector inserted
- Operating altitude: up to 2,000 m
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.25 kg
Key Features
- Safety integrity level SIL 2 (IEC 61508), SILCL2 (EN 62061)
- Category 3 (EN ISO 13849) with Performance Level PL d
- High resolution with 1,024 sine/cosine periods per revolution
- Absolute position measurement with 4,096 revolutions and 134,217,728 total steps
- System accuracy ± 52 ″ and safety-related accuracy ± 0.09°
- Robust aluminum die-cast housing with IP65 rating
- Operating temperature range from –30 °C to +85 °C
- Blind hollow shaft with 14 mm diameter made of stainless steel
- Communication interface HIPERFACE®
- Low current consumption < 80 mA without load
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety-related electrical equipment and compliant with relevant standards to ensure proper integration and safety performance.
Applications
- Industrial automation requiring precise and safe position measurement
- Safety-related machinery control systems
- Robotics and motion control applications
- High-speed rotary applications up to 6,000 min⁻¹
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Low power consumption contributes to energy efficiency
- Robust construction minimizes environmental impact from damage or failure
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK SFM60S-HRKB0K02 Safety-Related Absolute Encoder is available for immediate purchase, ideal for industrial automation and safety-critical applications requiring high precision and reliability.
