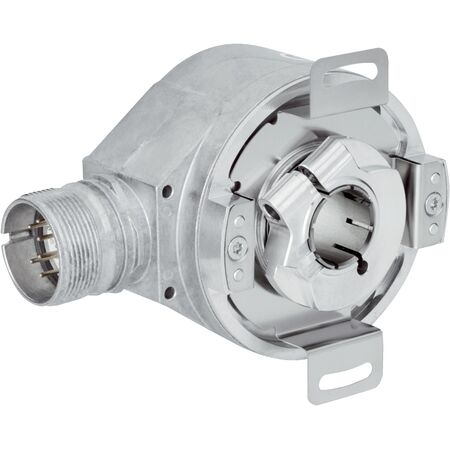

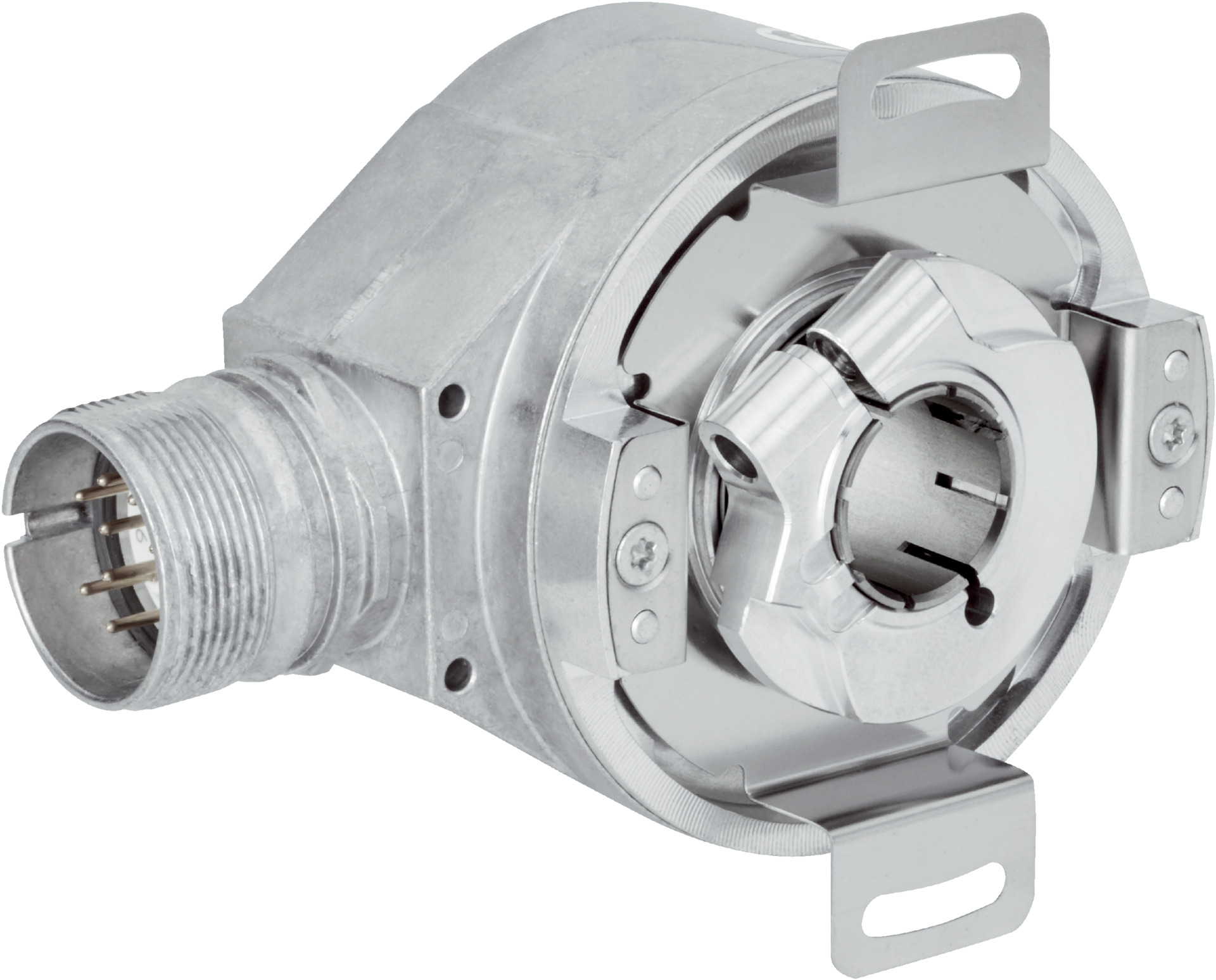

Safety Absolute Encoder SFS60S-HLAT0K02 | SIL 2 & PL d Compliance | IP65 Rated | by SICK
The Safety Absolute Encoder SFS60S-HLAT0K02 is designed for industrial automation, featuring SIL 2 and PL d compliance for safety-critical applications. With a robust aluminum housing and IP65 rating, it ensures reliable performance in harsh environments. This encoder offers 32,768 total steps and operates at speeds up to 6,000 min⁻¹, making it ideal for precise position measurement and rotational speed monitoring.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.25 kg
Key Features
- Safety integrity level SIL 2 (IEC 61508) and Performance Level PL d (EN ISO 13849)
- Absolute encoder with 32,768 total steps and 0.3″ measuring step
- Binary code output with HIPERFACE® communication interface
- Operating speed up to 6,000 min⁻¹ with system accuracy of ±52″
- Robust aluminum die-cast housing with IP65 rating
- Through hollow shaft design with 10 mm stainless steel shaft
- Wide operating temperature range from –30 °C to +95 °C
- Resistance to shocks (100 g) and vibrations (10 g, 10 Hz to 1,000 Hz)
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure compliance with safety standards and proper integration with control systems.
Applications
- Industrial automation for precise position measurement
- Safety-related applications requiring SIL 2 and PL d compliance
- Rotational speed and position monitoring in machinery
- Use in environments requiring IP65 protection and vibration resistance
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
- Complies with AS/NZS 45001 – Occupational Health & Safety (aligned with ISO 45001)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low current consumption (<80 mA) contributes to energy efficiency
- High reliability and long service life reduce environmental impact
Warranty Information
Warranty details available upon request from manufacturer.
Available Now
The SICK SFS60S-HLAT0K02 Safety-Related Absolute Encoder is available for immediate purchase, ideal for industrial automation and safety-critical applications.
